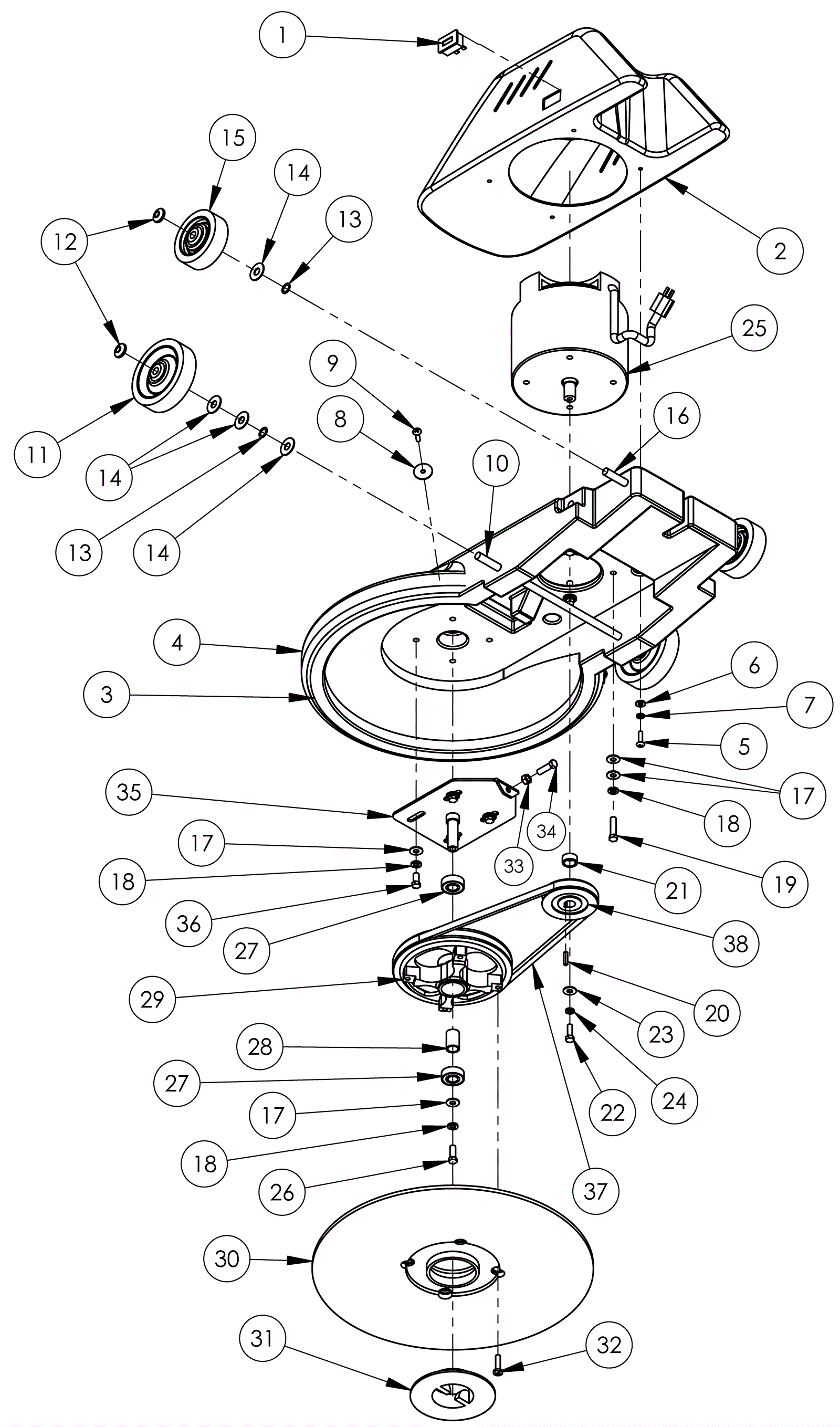

# | Part | Description | Price | Req | Notes | Availability |
1 |
189-3137
|
Hour meter |
$55.25
|
1 |
|
usually ships 1-5 days |
2 |
189-9617
|
Cover |
$47.60
|
1 |
|
usually ships 9-21 days |
3 |
189-3139
|
Base |
$166.00
|
1 |
|
usually ships 9-21 days |
4 |
189-3140
|
Bumper |
$25.23
|
1 |
|
usually ships 1-5 days |
5 |
189-3141
|
Screw 1/4-20 x 1 |
$2.16
|
4 |
|
usually ships 1-5 days |
6 |
999-0016
|
Washer 1/4 flat plain finish |
$0.99
|
4 |
|
ships same day |
7 |
999-1049
|
Washer 1/4 split lock zinc plated |
$0.90
|
4 |
|
ships same day |
8 |
189-3142
|
Washer 1/4 fender zinc |
$2.16
|
2 |
|
usually ships 1-5 days |
9 |
189-3143
|
Screw 1/4-20 x 3/4 |
$2.16
|
2 |
|
usually ships 1-5 days |
10 |
189-3144
|
Axle |
$14.48
|
1 |
|
usually ships 9-21 days |
11 |
189-3182
|
5 inch wheel |
$15.43
|
2 |
|
usually ships 9-21 days |
12 |
189-3132
|
Axle cap |
$4.00
|
4 |
|
usually ships 6-11 days |
13 |
189-3131
|
Washer 1/2 spring |
$2.16
|
4 |
|
usually ships 9-21 days |
14 |
189-3092
|
Washer 1/2 x 1 1/4 nylon |
$2.38
|
8 |
|
usually ships 9-21 days |
15 |
189-3146
|
4 inch wheel (gray) |
$12.38
|
2 |
|
usually ships 9-21 days |
16 |
189-3147
|
Axle |
$12.92
|
1 |
|
usually ships 9-21 days |
17 |
999-0120
|
Washer 3/8 SAE flat |
$0.99
|
13 |
|
ships same day |
18 |
189-3121
|
Handle tube |
$8.65
|
9 |
(Washer 3/8 lock) |
usually ships 1-5 days |
19 |
999-1489
|
Screw 3/8-16 x 1 1/2 hex head stainless steel |
$1.72
|
4 |
|
ships same day |
20 |
189-8439
|
Transaxle key |
$2.20
|
1 |
|
usually ships 1-5 days |
21 |
189-3149
|
Spacer |
$33.77
|
1 |
|
usually ships 1-5 days |
22 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
$0.99
|
1 |
|
ships same day |
23 |
204-0077
|
Washer flat |
$2.16
|
1 |
|
usually ships 1-5 days |
24 |
999-0028
|
Washer 5/16 split lock plain finish |
$0.99
|
1 |
|
ships same day |
25 |
189-8089
|
Motor 1.5HP |
$580.38
|
1 |
|
usually ships 1-5 days |
26 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
$1.50
|
1 |
|
ships same day |
27 |
189-3151
|
Bearing |
$41.10
|
2 |
|
usually ships 9-21 days |
28 |
189-3152
|
Spacer |
$3.62
|
1 |
|
ships same day |
29 |
189-3153
|
Pulley |
$53.35
|
1 |
|
usually ships 9-21 days |
30 |
189-3154
|
Pad driver assembly |
$162.87
|
1 |
|
usually ships 9-21 days |
31 |
991-2202
|
Big mouth pad holder set (blue) |
$19.53
|
1 |
|
ships same day |
32 |
999-1140
|
Screw 5/16-18 x 1 1/4 pan head phillips stainless steel |
$1.68
|
4 |
|
ships same day |
33 |
189-3156
|
Nut 3/8-16 |
$2.16
|
1 |
|
usually ships 1-5 days |
34 |
999-0039
|
Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated |
$0.90
|
1 |
|
ships same day |
35 |
189-3157
|
Pulley mount bracket |
$30.77
|
1 |
|
usually ships 1-5 days |
36 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
$0.99
|
4 |
|
ships same day |
37a |
189-3158
|
Belt |
$9.47
|
1 |
(2000) |
usually ships 9-21 days |
37b |
189-3160
|
Belt |
$8.95
|
1 |
(1600) |
usually ships 9-21 days |
38a |
189-3159
|
Pulley |
$32.75
|
1 |
(2000) |
usually ships 1-5 days |
38b |
189-3161
|
Pulley |
$24.72
|
1 |
(1600) |
usually ships 1-5 days |
N/S |
189-3162
|
Rectifier |
$21.72
|
1 |
|
usually ships 9-21 days |
N/S |
189-3163
|
Carbon brush |
$15.75
|
4 |
|
usually ships 9-21 days |
N/S |
189-3042
|
50 amp 60 cycle rectifier |
$23.89
|
1 |
|
ships same day |
