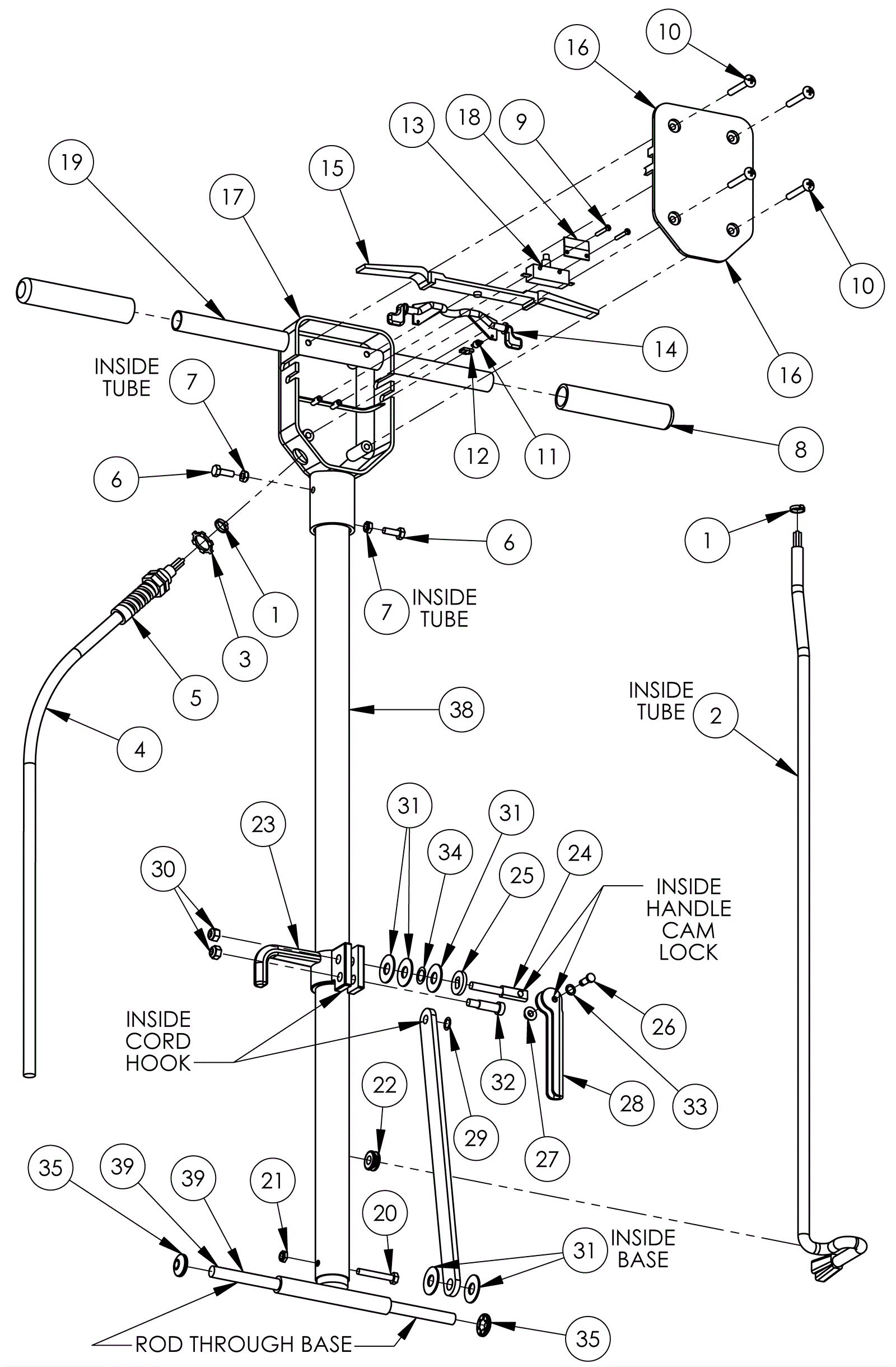

FOREMAN 1600 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-3108 Cable tie $2.38 2 usually ships 1-5 days
2 189-3109 14/3 handle cord $41.97 1 usually ships 11-24 days
3 189-7556 Strain relief nut $4.75 1 usually ships 11-24 days
4 189-3110 14/3 power cord 50 foot $111.54 1 usually ships 11-24 days
5 189-8589 Strain relief $35.20 1 usually ships 11-24 days
6 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 2 ships same day
7 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
8 189-8299 Handle grip $4.16 2 ships same day
9 189-3112 Screw #6 x 1 phillips $2.38 2 usually ships 11-24 days
10 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel $1.21 4 ships same day
11 189-3113 Spring $8.01 1 usually ships 11-24 days
12 189-3114 Spring clip $2.38 1 usually ships 11-24 days
13 189-3115 Switch $19.47 1 usually ships 11-24 days
14 189-3116 Safety lock $5.17 1 usually ships 11-24 days
15 189-3117 Trigger switch $5.50 1 usually ships 11-24 days
16 189-3118 Switch box cover $17.90 1 usually ships 11-24 days
17 189-3119 Switch box $104.94 1 usually ships 1-5 days
18 189-3120 Switch plate $2.38 1 usually ships 11-24 days
19 189-3121 Handle tube $9.52 1 usually ships 1-5 days
20 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
21 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
22 189-3122 Grommet $2.68 1 usually ships 11-24 days
23 189-3123 Cord hook $29.54 1 usually ships 11-24 days
24 189-3128 Cam lock handle assembly $18.65 1 (adjustable cam bolt) usually ships 11-24 days
25 189-3010 Oval washer (OBSOLETE) $3.83 1 usually ships 11-24 days
26 189-3128 Cam lock handle assembly $18.65 1 (pin) usually ships 11-24 days
27 189-3128 Cam lock handle assembly $18.65 1 (push cap) usually ships 11-24 days
28 189-3128 Cam lock handle assembly $18.65 1 (handle) usually ships 11-24 days
29 189-7557 Spring washer (OBSOLETE) $2.18 1 usually ships 11-24 days
30 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
31 189-3092 Washer 1/2 x 1 1/4 nylon $2.38 5 usually ships 11-24 days
32 189-3129 Bolt 3/8 x 1 shoulder $5.50 1 usually ships 11-24 days
33 189-3128 Cam lock handle assembly $18.65 1 (washer 1/4 spring) usually ships 11-24 days
34 189-3131 Washer 1/2 spring $2.38 1 usually ships 11-24 days
35 189-3132 Axle cap $4.40 2 usually ships 6-11 days
36 189-9612 Handle socket $23.65 1 usually ships 11-24 days
37 189-3134 Handle bracket $16.30 1 usually ships 1-5 days
38 189-3135 Handle tube $57.00 1 usually ships 11-24 days
39 189-3136 Axle $14.25 1 usually ships 11-24 days
N/S 189-3128 Cam lock handle assembly $18.65 1 (includes 24-28, 30, 31, 33 and 34) usually ships 11-24 days
