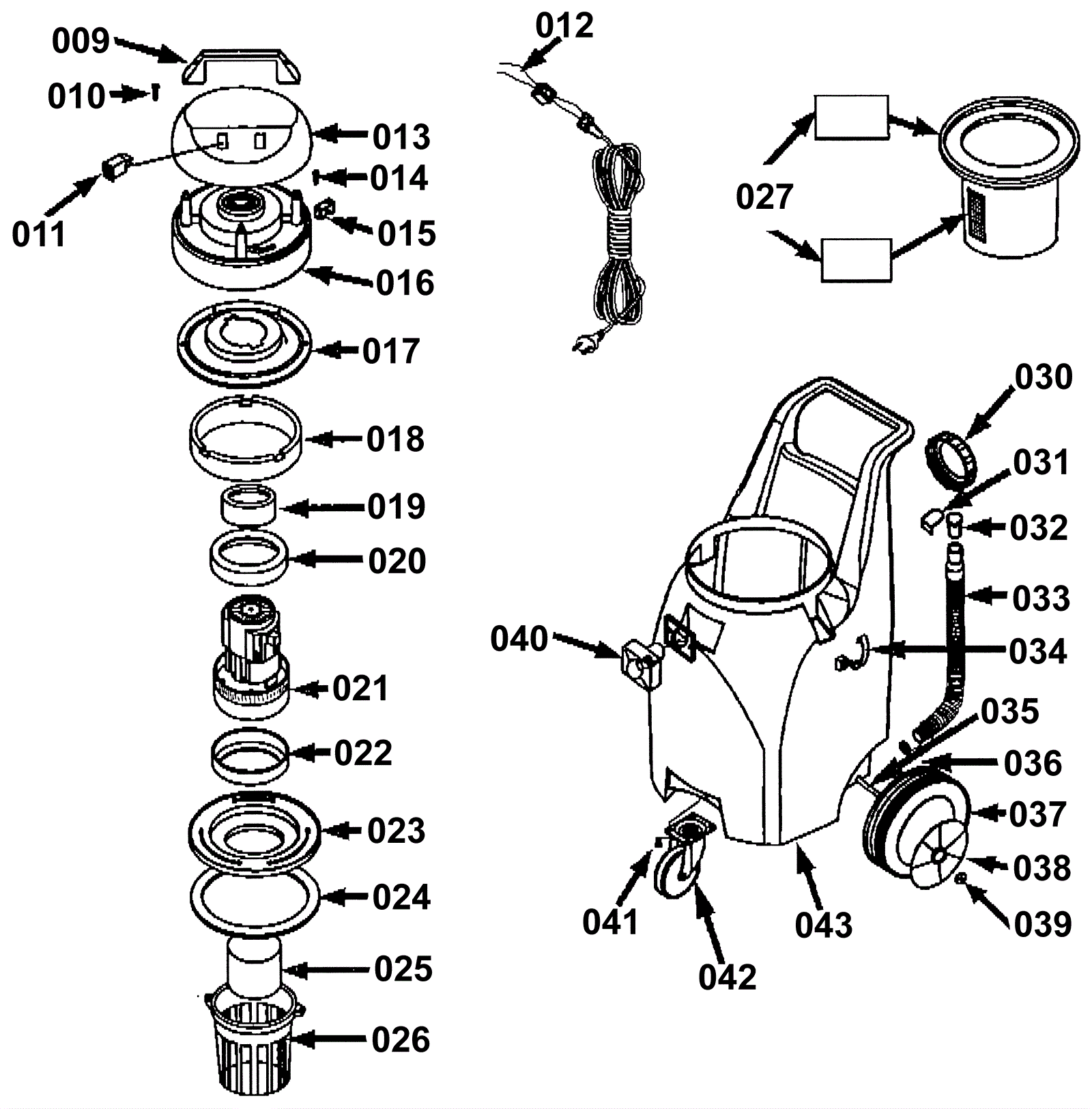

WORKMAN 20 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
009 189-5134 Handle $10.26 usually ships 1-5 days
010 189-9259 Screw $4.09 usually ships 1-5 days
011 189-9004 Switch $10.95 usually ships 14-27 days
012 189-8739 Power cord $108.96 ships same day
013 189-5137 Cover $17.74 usually ships 14-27 days
014 189-9260 Screw $4.09 usually ships 14-27 days
015 189-9261 Strain relief $2.18 usually ships 1-5 days
016 189-7571 Sleeve $19.82 usually ships 14-27 days
017 189-9262 Upper motor plate $11.24 usually ships 14-27 days
018 189-5139 Noise reduction foam $4.66 usually ships 14-27 days
019 189-9263 Spacer $4.31 usually ships 14-27 days
020 189-5138 Gasket $4.75 usually ships 14-27 days
021 189-5135 120V vacuum motor $185.87 usually ships 14-27 days
022 189-5138 Gasket $4.75 usually ships 14-27 days
023 189-4371 Bottom mounting plate $21.73 usually ships 14-27 days
024 189-5136 Gasket $8.28 usually ships 14-27 days
025 189-7587 Float $10.81 usually ships 14-27 days
026 189-7588 Float cage $7.15 usually ships 14-27 days
027a 189-7589 Filter $27.63 usually ships 14-27 days
027b 189-8767 Cloth filter $22.91 usually ships 14-27 days
030 189-8757 Drain cap (black) $13.18 ships same day
031 189-8758 Drain hose bracket $10.23 ships same day
032 189-8759 Drain hose plug $3.85 usually ships 14-27 days
033 189-8760 Drain hose $36.25 usually ships 14-27 days
034 189-7586 Metal latch $11.17 usually ships 14-27 days
035 189-8761 Axle $12.56 usually ships 1-5 days
036 189-8762 Rubber drain hose gasket $4.55 usually ships 14-27 days
037 189-8763 Rear wheel $29.23 usually ships 14-27 days
038 189-8764 Hub cap $5.50 usually ships 14-27 days
039 189-8765 Axle end cap $5.50 usually ships 14-27 days
040 189-8745 Suction hose inlet $11.88 ships same day
041 189-5161 Caster wheel $20.63 ships same day
042 189-5161 Caster wheel $20.63 ships same day
043 189-8766 Tank $725.47 usually ships 1-5 days
