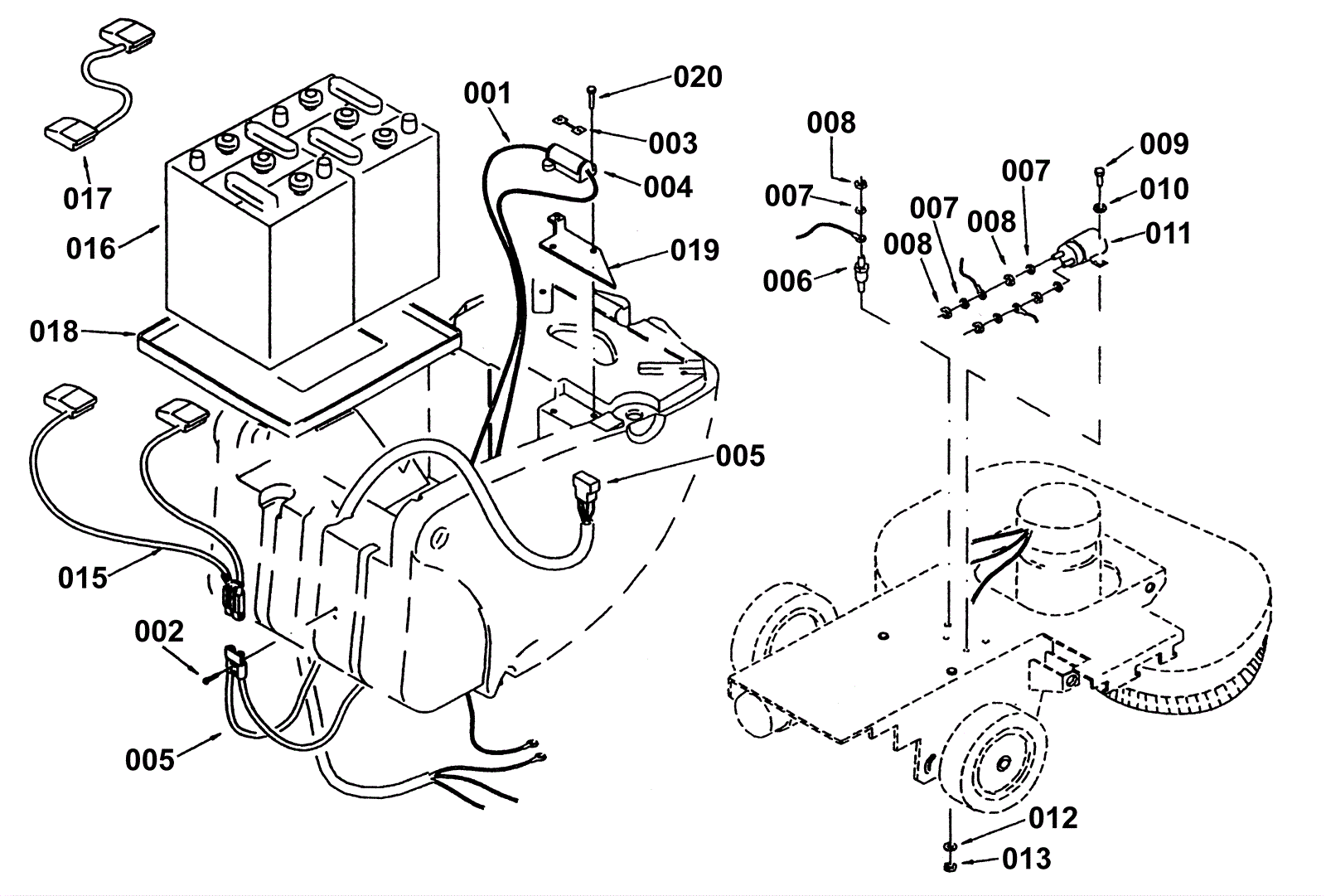

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
203-0924
|
Wiring |
1 |
|
|
002 |
189-1427
|
Screw |
2 |
|
|
003 |
203-0926
|
Fuse |
1 |
|
|
004 |
203-0927
|
Fuse carrier |
1 |
|
|
005 |
203-0928
|
Wiring |
1 |
|
|
006 |
189-0446
|
Insulator |
1 |
|
|
007 |
189-1369
|
Washer cham |
5 |
|
|
008 |
189-1379
|
Nut M8 |
5 |
|
|
009 |
189-1440
|
Screw |
2 |
|
|
010 |
189-1462
|
Washer 5 x 14 inch |
2 |
|
|
011 |
189-0105
|
Relay |
1 |
|
|
012 |
189-1643
|
Washer |
1 |
|
|
013 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
015 |
203-0929
|
Wiring |
1 |
|
|
016 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
|
017 |
189-0113
|
Battery jumper cable |
1 |
|
|
018 |
203-4742
|
Battery support |
1 |
|
|
019 |
189-2433
|
Support |
1 |
|
|
020 |
189-2434
|
Screw |
2 |
|
|
