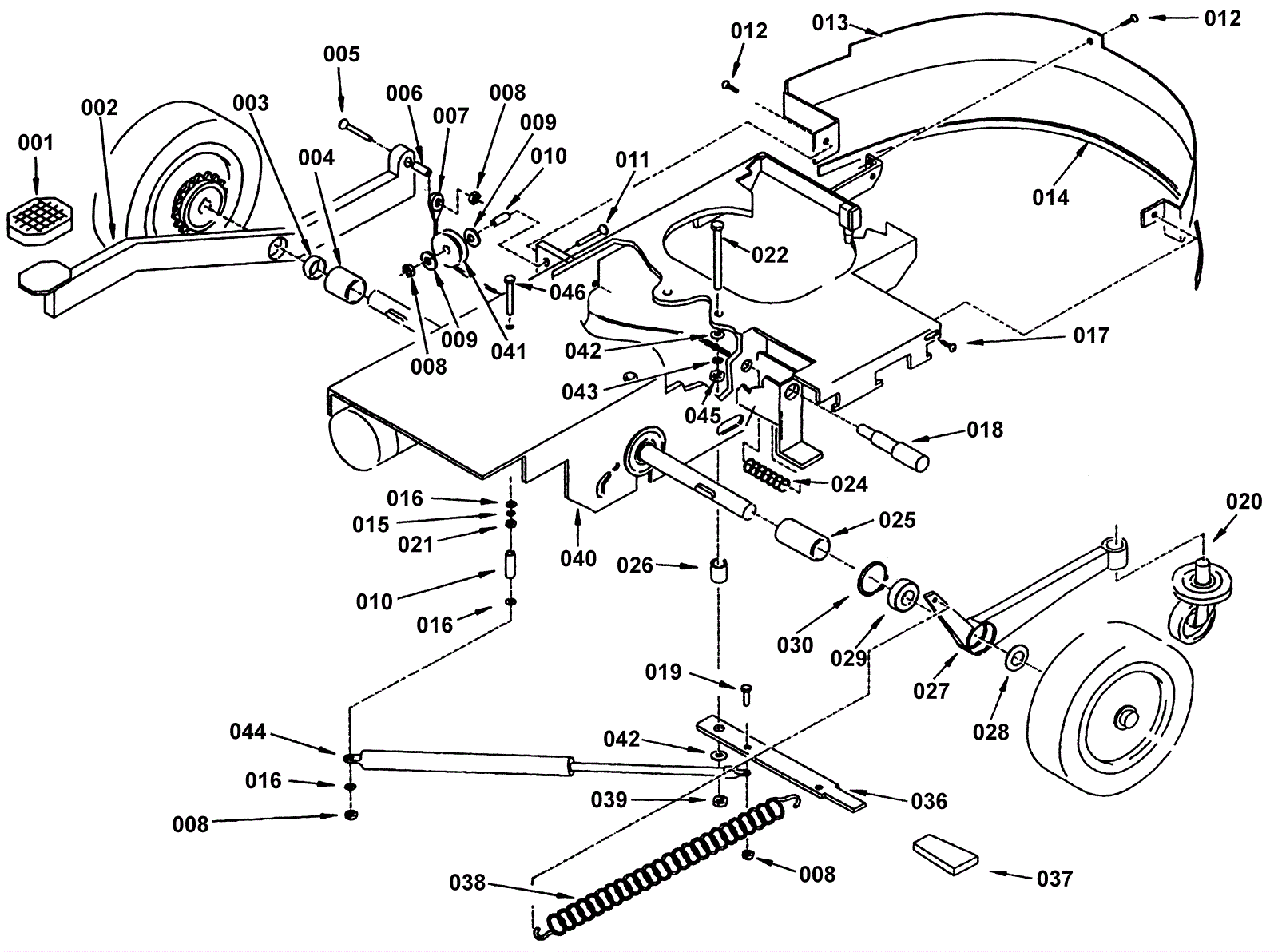

WS24 Frame

#PartDescriptionPriceReqNotesAvailability
001 189-0301 Front pedal pad $14.18 1 usually ships 15-24 days
002 189-2396 Pedal $367.73 1 usually ships 1-5 days
003 189-2397 Bearing $16.16 1 usually ships 1-5 days
004 189-2398 Spacer $33.43 1 usually ships 1-5 days
005 189-1540 Screw $4.20 1 usually ships 1-5 days
006 189-2399 Spacer $10.64 1 usually ships 1-5 days
007 189-2400 Cable $54.68 1 usually ships 15-24 days
008 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
009 189-1393 Washer $2.99 2 usually ships 1-5 days
010 189-0918 Bearing $28.72 1 usually ships 1-5 days
011 189-1421 Screw $4.20 1 usually ships 1-5 days
012 189-1376 Screw 4 x 10 inch $4.20 2 usually ships 15-24 days
013 189-2401 Bulkhead $151.77 1 usually ships 1-5 days
014 189-2402 Outline $11.58 1 usually ships 1-5 days
015 189-1477 Washer cham $5.19 1 usually ships 15-24 days
016 189-1487 Washer $10.64 3 usually ships 15-24 days
017 189-1352 Screw $4.25 1 usually ships 15-24 days
018 189-2403 Pin $171.33 1 usually ships 1-5 days
019 189-1497 Screw 6 x 16 inch $4.20 1 usually ships 15-24 days
020 189-2404 Wheel $387.93 1 usually ships 1-5 days
021 189-1489 Nut M6 $3.61 5 usually ships 1-5 days
022 189-1404 Screw M8 $0.99 1 usually ships 1-5 days
024 189-2405 Spring $20.67 1 usually ships 1-5 days
025 189-2406 Spacer $37.88 1 usually ships 1-5 days
026 189-0617 Spacer $12.76 1 usually ships 1-5 days
027 189-2407 Support $396.43 1 usually ships 1-5 days
028 189-1481 Washer $5.02 2 usually ships 1-5 days
029 189-2408 Bearing $50.84 1 usually ships 1-5 days
030 189-2409 Seeger $4.80 1 usually ships 1-5 days
036 189-2410 Lever $66.85 1 usually ships 1-5 days
037 189-2411 Handgrip $16.71 1 usually ships 1-5 days
038 189-2412 Spring $65.45 1 usually ships 1-5 days
039 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
040 189-2413 Frame $734.03 1 usually ships 1-5 days
041 189-2414 Pulley $87.78 1 usually ships 1-5 days
042 189-0897 Washer D8 $2.99 2 usually ships 15-24 days
043 189-1511 Washer $2.99 1 usually ships 15-24 days
044 189-2415 Spring $257.96 1 usually ships 1-5 days
045 189-1492 Nut M8 $0.99 1 usually ships 15-24 days
046 189-1483 Screw 6 x 40 inch $0.99 1 usually ships 1-5 days
