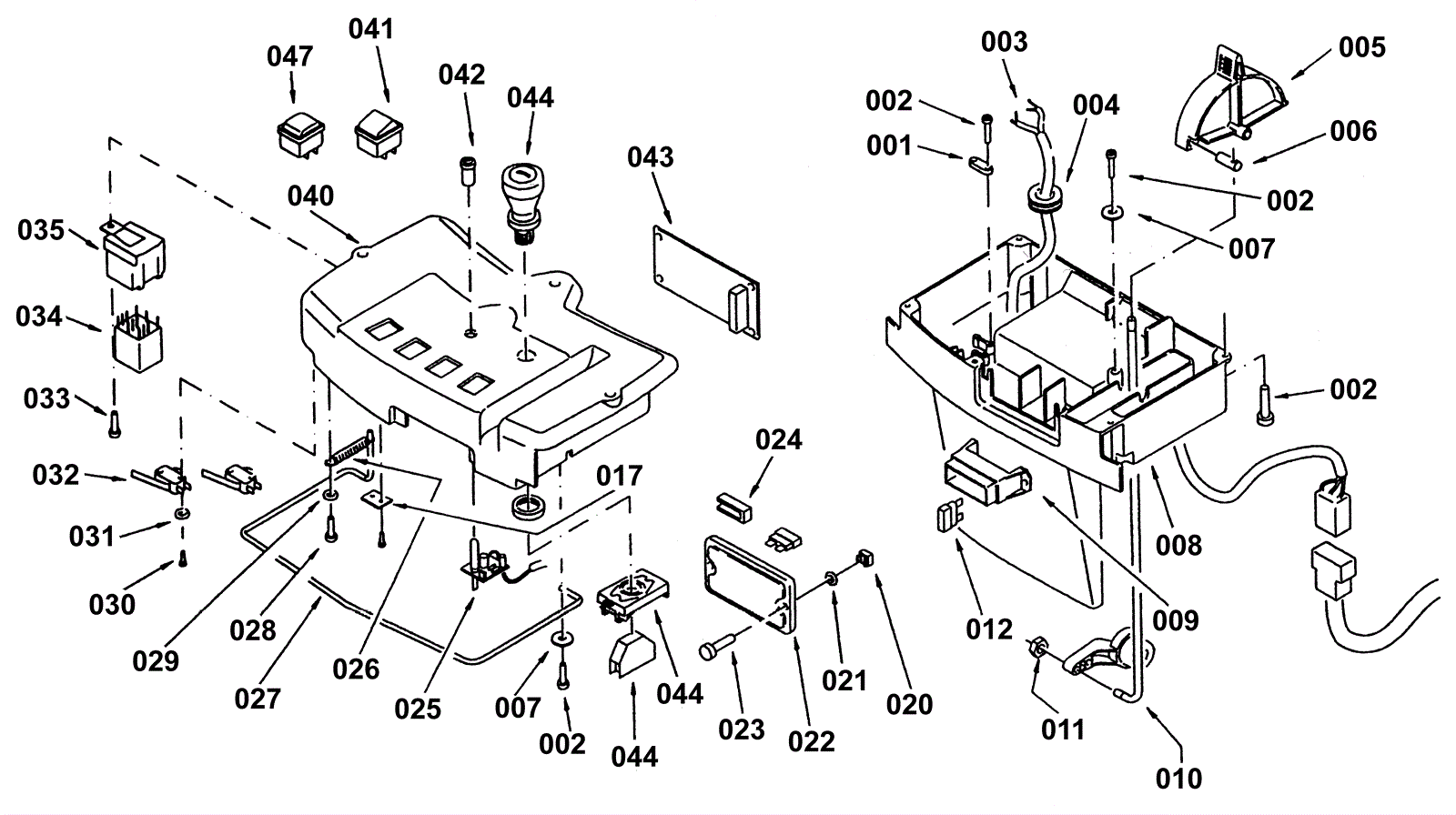

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-1132
|
Cable clamping staple |
1 |
|
|
002 |
189-1624
|
Screw 3 1/2 x 16 inch |
8 |
|
|
003 |
189-2393
|
Wiring |
1 |
|
|
004 |
189-1133
|
Fairlead |
1 |
|
|
005 |
189-0288
|
Lever |
1 |
|
|
006 |
189-0289
|
Solution rod |
1 |
|
|
007 |
189-1462
|
Washer 5 x 14 inch |
2 |
|
|
008 |
189-1134
|
Control panel |
1 |
|
|
009 |
189-0256
|
Fuse carrier |
1 |
|
|
010 |
189-0290
|
Solution control rod |
1 |
|
|
011 |
203-0524
|
Nut M6 lock |
1 |
|
|
012a |
189-0107
|
5 amp fuse |
2 |
1st fuse from left |
|
012b |
203-3133
|
30amp fuse |
2 |
2nd fuse from left |
|
012c |
203-3133
|
30amp fuse |
2 |
3rd fuse from left. From factory this is a 30 amp fuse (189-0928), it has a tendency to fail due to motor spike, should be replaced with 40 amp fuse (189-0255) |
|
017 |
189-2394
|
Support |
1 |
|
|
020 |
189-1637
|
Nut M6 |
2 |
|
|
021 |
189-0755
|
Gasket |
2 |
|
|
022 |
189-0834
|
Lid |
1 |
|
|
023 |
189-1638
|
Screw 6 x 20 inch |
2 |
|
|
024 |
189-0927
|
Fuse tweezers |
1 |
|
|
025 |
189-0832
|
Circuit board |
1 |
|
|
026 |
189-1135
|
Spring |
1 |
|
|
027 |
189-1136
|
Lever |
1 |
|
|
028 |
189-1639
|
Screw (OBSOLETE) |
3 |
|
|
029 |
189-1375
|
Washer D4 |
1 |
|
|
030 |
189-1640
|
Screw |
6 |
|
|
031 |
189-1441
|
Washer |
4 |
|
|
032 |
189-0258
|
Microswitch |
2 |
|
|
033 |
203-0960
|
Screw M4 |
1 |
|
|
034 |
203-0782
|
Relay |
1 |
|
|
035 |
203-0783
|
Relay support |
1 |
|
|
040 |
203-4364
|
Control panel |
1 |
|
|
041 |
203-0698
|
Lighted switch |
2 |
|
|
042 |
189-0102
|
Reflector |
1 |
|
|
043 |
189-2395
|
Gearcase |
1 |
|
|
044a |
189-0264
|
Key switch complete |
1 |
|
|
044b |
189-0037
|
Key |
1 |
(included with 044a) |
|
047 |
203-0785
|
Switch cover |
2 |
|
|
