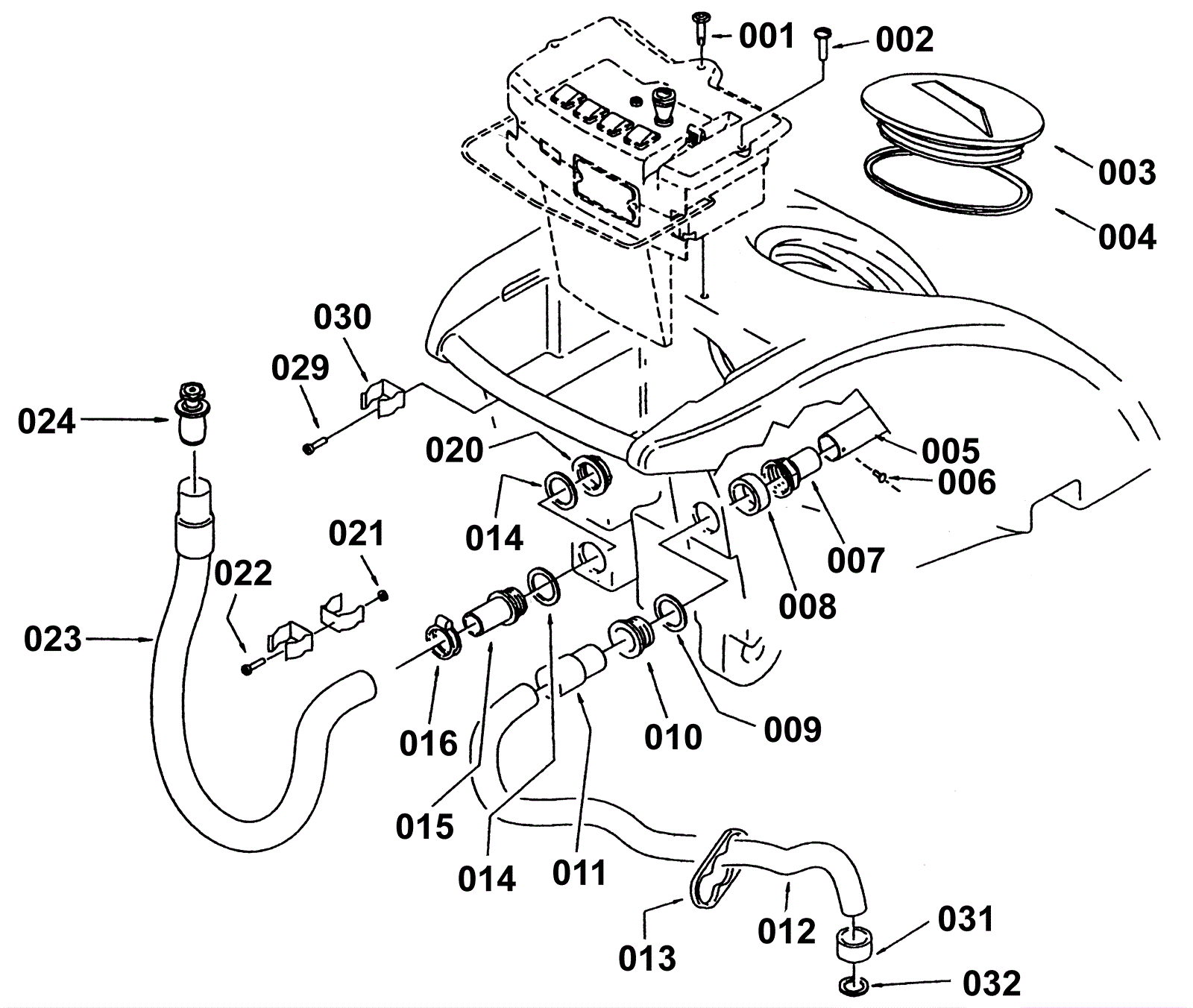

Tank

#PartDescription ReqNotesAvailability
001 203-0805 Toothed clip 1
002 189-1638 Screw 6 x 20 inch 2
003 189-0292 Cover 1
004 189-0293 Gasket 1
005 203-0808 Pipe (OBSOLETE) 1
006 189-1451 Screw 1
007 203-0810 Connector 1
008 189-2388 Spacer 1
009 203-0812 Gasket 1
010 203-0813 Suction opening 1
011 189-0118 Sleeve 1
012 203-0815 Hose 1
013 189-0295 Plaque 1
014 203-4140 Gasket 2
015 189-0296 Connector 1
016 189-0123 Clamp 35-40 inch 1
020 189-1641 Nut 1
021 189-1434 Nut 2
022 189-1431 Screw 2
023 203-0819 Hose 1
024 203-4348 Cap assembly 1
029 375-9544 Screw 5 x 12 2
030 189-0271 Hose clip 3
031 189-0297 Sleeve 1
032 189-0298 Gasket 1
