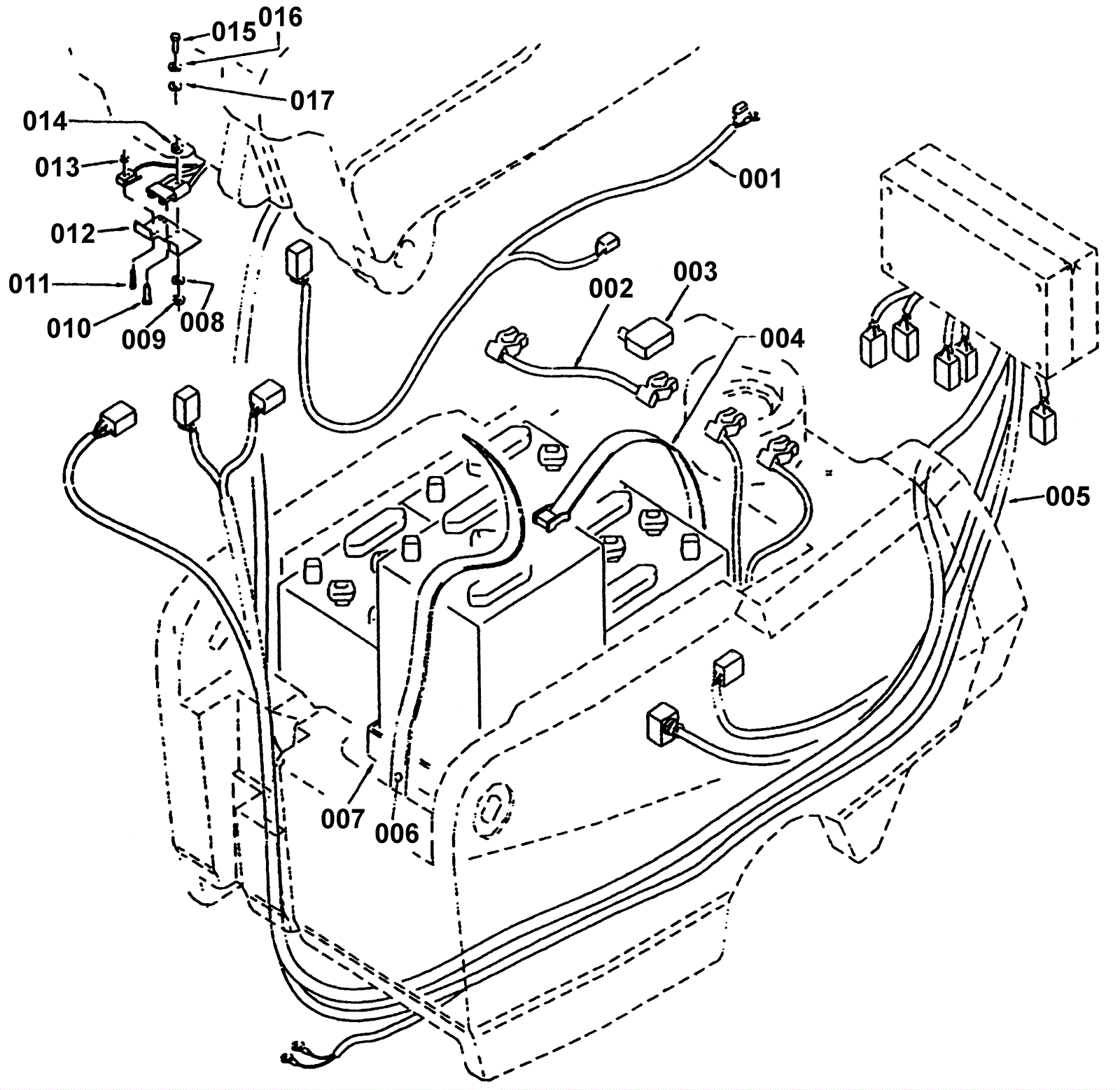

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
203-2871
|
Wiring (OBSOLETE) |
1 |
|
|
002 |
189-5012
|
Stainless steel hd motor cover |
3 |
|
|
003 |
189-0742
|
Terminal cable covers |
8 |
|
|
004 |
203-1775
|
Belt |
2 |
|
|
005 |
203-1777
|
Wiring (OBSOLETE) |
1 |
|
|
006 |
203-1778
|
Belt |
2 |
|
|
007 |
203-1779
|
Battery plate |
4 |
|
|
008 |
203-0235
|
Washer |
2 |
|
|
009 |
189-1472
|
Nut M4 |
2 |
|
|
010 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
1 |
|
|
011 |
189-1457
|
Screw M2 |
2 |
|
|
012 |
203-1783
|
Support |
1 |
|
|
013 |
189-1458
|
Nut M2 |
2 |
|
|
014 |
189-1434
|
Nut |
2 |
|
|
015 |
203-2872
|
Screw |
2 |
|
|
016 |
203-0145
|
Washer 4-16 inch |
2 |
|
|
017 |
203-2873
|
Gasket |
2 |
|
|
