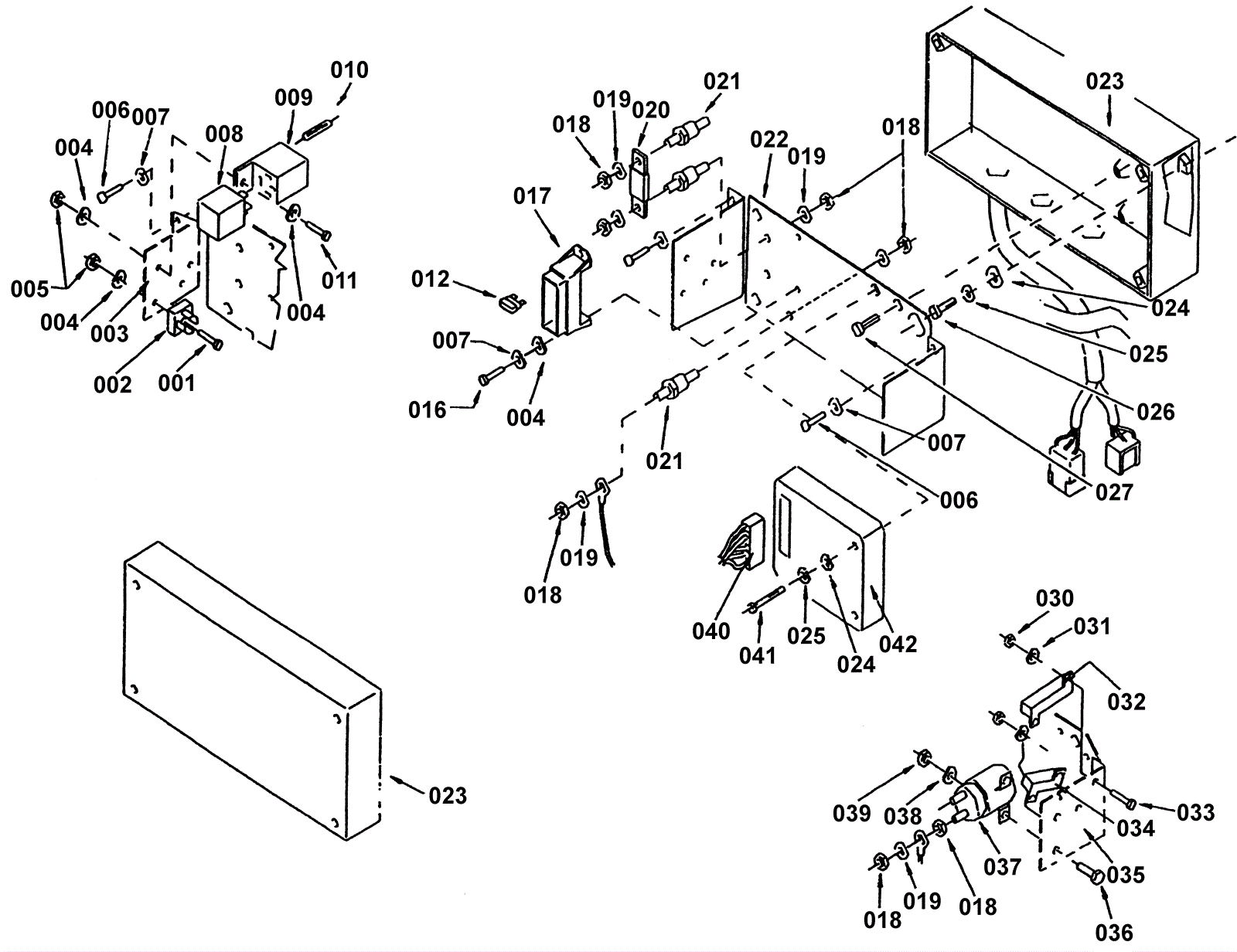

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-1527
|
Screw 4 x 16 inch |
1 |
|
|
002 |
189-0455
|
Bridge / Jumper |
1 |
|
|
003 |
203-1693
|
Bracket |
1 |
|
|
004 |
189-1375
|
Washer D4 |
8 |
|
|
005 |
189-1384
|
Nut M4 |
2 |
|
|
006 |
203-0960
|
Screw M4 |
4 |
|
|
007 |
203-4740
|
Washer D4 |
4 |
|
|
008 |
203-0782
|
Relay |
1 |
|
|
009 |
203-0783
|
Relay support |
1 |
|
|
010 |
203-0945
|
Resistance |
1 |
|
|
011 |
189-1431
|
Screw |
1 |
|
|
012a |
189-0255
|
Fuse 40 amp |
2 |
|
|
012b |
203-3133
|
30amp fuse |
1 |
|
|
012c |
203-3346
|
10amp fuse |
1 |
|
|
016 |
203-1701
|
Screw M4 |
2 |
|
|
017 |
189-0256
|
Fuse carrier |
1 |
|
|
018 |
189-1379
|
Nut M8 |
14 |
|
|
019 |
189-1403
|
Washer D8 |
10 |
|
|
020 |
203-1703
|
Fuse |
1 |
|
|
021 |
189-0446
|
Insulator |
3 |
|
|
022 |
203-2866
|
Plate (OBSOLETE) |
1 |
|
|
023 |
203-1777
|
Wiring (OBSOLETE) |
1 |
|
|
024 |
189-1353
|
Washer D5 |
4 |
|
|
025 |
203-4956
|
Spring lock washer |
4 |
|
|
026 |
375-9544
|
Screw 5 x 12 |
4 |
|
|
027 |
189-2243
|
5-10 inch M. 3 screw |
4 |
|
|
030 |
189-1446
|
Nut M3 |
4 |
|
|
031 |
189-2241
|
Washer D3 |
4 |
|
|
032 |
189-0450
|
Resistance |
1 |
|
|
033 |
203-4739
|
Screw |
4 |
|
|
034 |
203-1708
|
Resistance |
1 |
|
|
035 |
203-1709
|
Bracket |
1 |
|
|
036 |
189-1442
|
Screw M6 zinc |
2 |
|
|
038 |
189-1345
|
Washer d10 cham |
2 |
|
|
039 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
040 |
203-1711
|
Connector |
1 |
|
|
041 |
203-1712
|
Screw (OBSOLETE) |
2 |
|
|
042 |
203-2870
|
Traction card |
1 |
|
|
