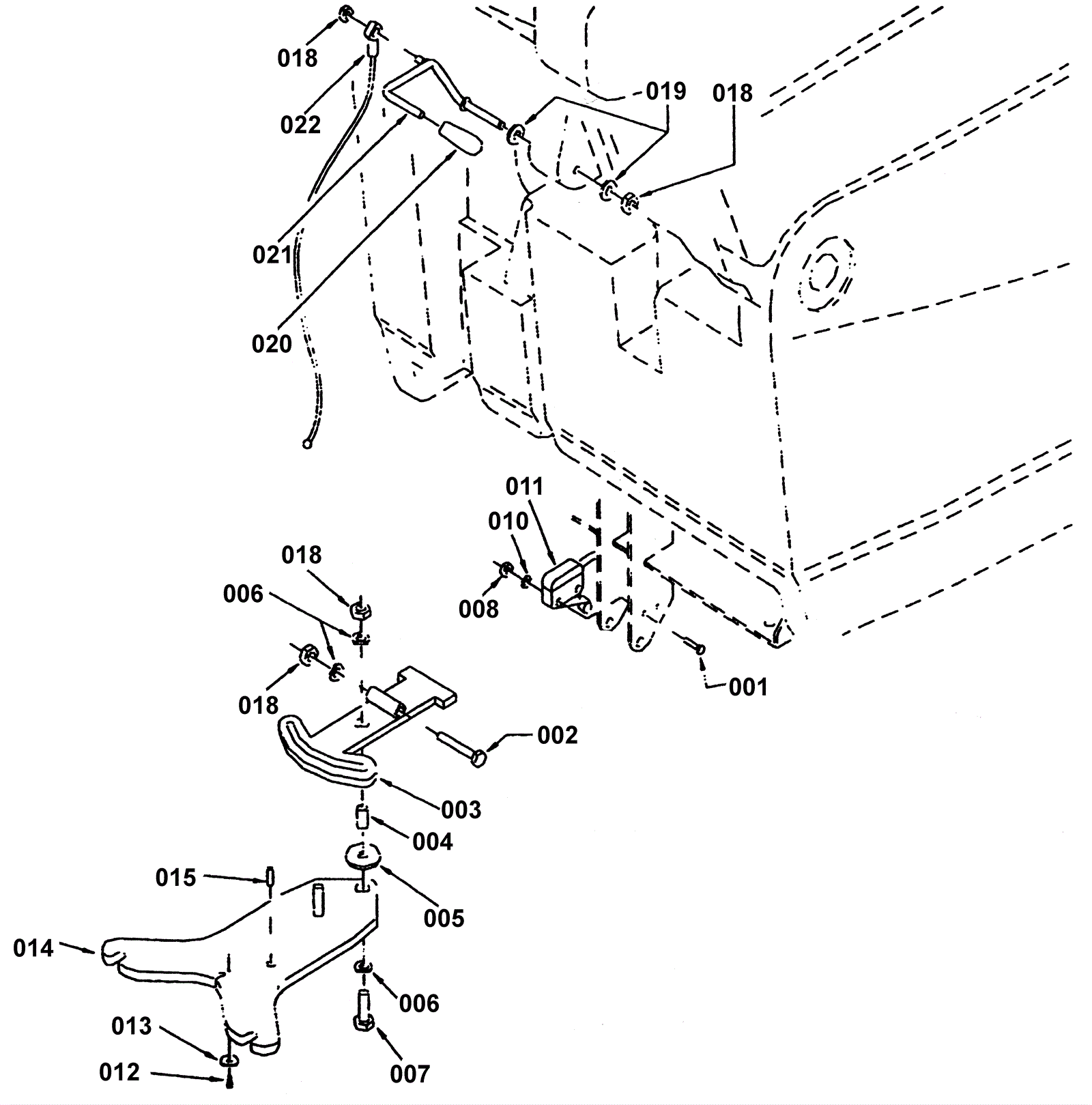

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-1448
|
Screw |
2 |
|
|
002 |
189-1491
|
Screw |
1 |
|
|
003 |
203-1830
|
Arm |
1 |
|
|
004 |
203-1831
|
Bushing / Bush |
1 |
|
|
005 |
189-1394
|
Washer D13 |
1 |
|
|
006 |
189-0897
|
Washer D8 |
3 |
|
|
007 |
189-1344
|
Screw M8 |
1 |
|
|
008 |
189-1384
|
Nut M4 |
2 |
|
|
010 |
189-1375
|
Washer D4 |
2 |
|
|
011 |
203-1754
|
Microswitch |
1 |
|
|
012 |
189-1376
|
Screw 4 x 10 inch |
1 |
|
|
013 |
189-1635
|
Washer |
1 |
|
|
014 |
203-1832
|
Bracket |
1 |
|
|
015 |
203-0900
|
Screw |
1 |
|
|
018 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
3 |
|
|
019 |
375-9615
|
Washer D. 8 x 24 inox |
2 |
|
|
020 |
189-1129
|
Handgrip |
1 |
|
|
021 |
203-0892
|
Lever |
1 |
|
|
022 |
203-1833
|
Squeegee lift cable kit |
1 |
|
|
