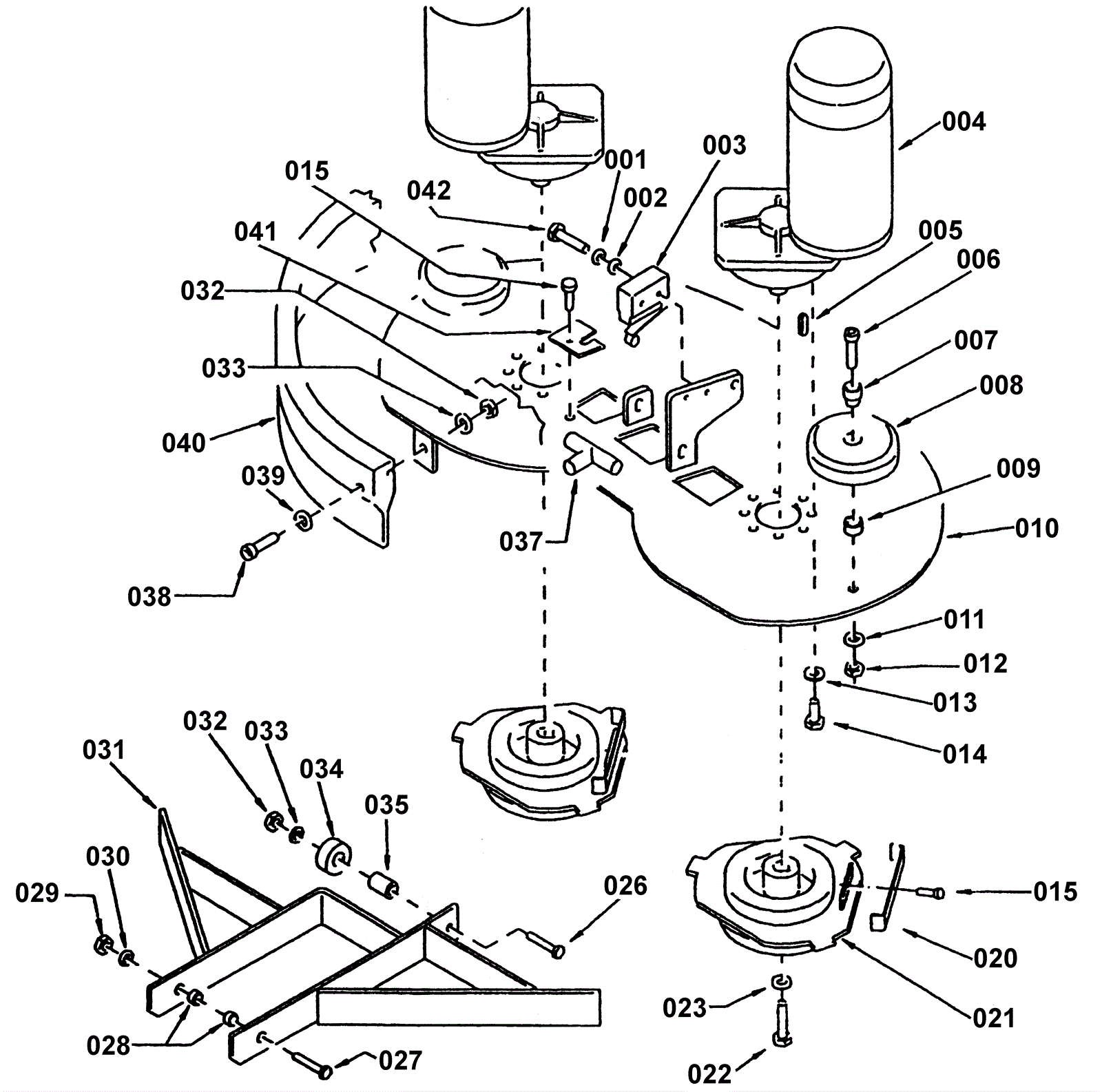

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-1433
|
Washer |
2 |
|
|
002 |
203-0235
|
Washer |
2 |
|
|
003 |
203-1754
|
Microswitch |
1 |
|
|
004 |
203-1755
|
Gear motor |
2 |
|
|
005 |
203-0644
|
Square keyway |
2 |
|
|
006 |
203-0182
|
Screw M8 |
2 |
|
|
007 |
189-0901
|
Bushing |
2 |
|
|
008 |
189-0060
|
Wheel |
2 |
|
|
009 |
189-0597
|
Spacer |
2 |
|
|
010 |
203-1757
|
Head |
1 |
|
|
011 |
189-0897
|
Washer D8 |
3 |
|
|
012 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
3 |
|
|
013 |
203-0971
|
Washer D6 |
14 |
|
|
014 |
189-1357
|
Screw 6 x 12 inch |
14 |
|
|
015 |
189-1376
|
Screw 4 x 10 inch |
3 |
|
|
020 |
203-1795
|
Clip |
2 |
|
|
021 |
375-8019
|
Driver kit (aluminum) |
2 |
|
|
022 |
203-4437
|
Screw 8 x 30 inch |
2 |
|
|
023 |
189-1449
|
Washer D10 |
2 |
|
|
026 |
189-1488
|
Screw M6 |
1 |
|
|
027 |
203-1764
|
Screw M12 |
1 |
|
|
028 |
203-1765
|
Spacer |
2 |
|
|
029 |
189-1413
|
Nut M12 |
1 |
|
|
030 |
189-1414
|
Washer D12 |
1 |
|
|
031 |
203-1766
|
Bracket |
1 |
|
|
032 |
203-0524
|
Nut M6 lock |
3 |
|
|
033 |
189-1487
|
Washer |
3 |
|
|
034 |
189-2237
|
Wheel |
1 |
|
|
035 |
189-2238
|
Spacer D6 |
1 |
|
|
037 |
203-1768
|
Union / connector |
1 |
|
|
038 |
189-1649
|
Screw 6 x 35 inch |
2 |
|
|
039 |
189-1391
|
Washer D6 |
2 |
|
|
040 |
203-1771
|
Skirt/gasket |
1 |
|
|
041 |
203-1773
|
Plaque |
1 |
|
|
