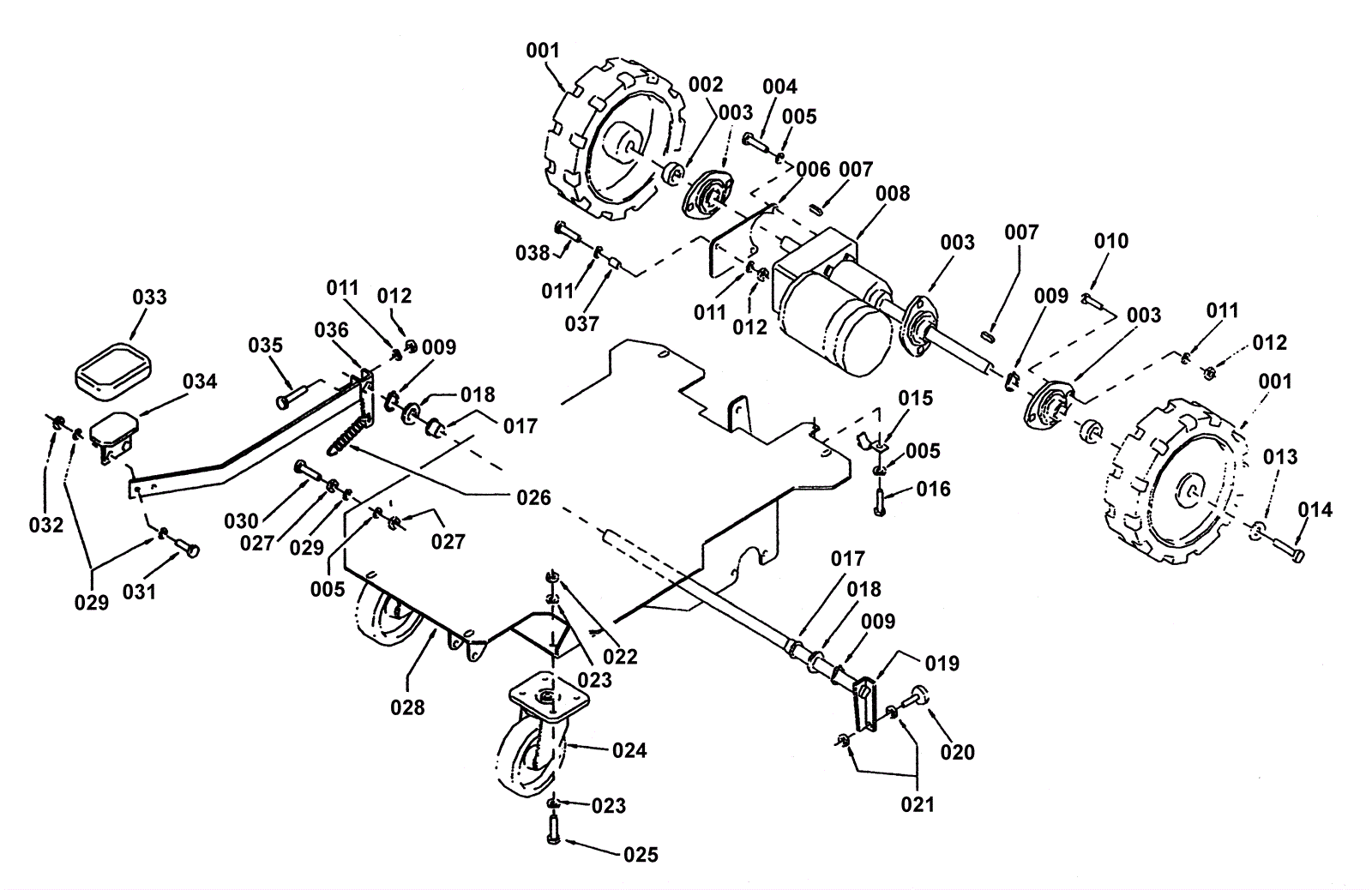

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
203-5026
|
Wheel |
2 |
|
|
002 |
189-0227
|
Spacer |
2 |
|
|
003 |
189-0226
|
Bearing |
3 |
|
|
004 |
189-1497
|
Screw 6 x 16 inch |
2 |
|
|
005 |
203-0971
|
Washer D6 |
4 |
|
|
006 |
203-1790
|
Plate |
1 |
|
|
007 |
189-0907
|
Square keyway |
2 |
|
|
008 |
189-2222
|
Transaxle |
1 |
|
|
009 |
189-0645
|
Ring |
3 |
|
|
010 |
189-1544
|
Screw |
6 |
|
|
011 |
189-0897
|
Washer D8 |
9 |
|
|
012 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
7 |
|
|
013 |
189-1410
|
Washer D8 zinc |
2 |
|
|
014 |
189-2232
|
Screw M8 |
2 |
|
|
015 |
203-1795
|
Clip |
1 |
|
|
016 |
189-1357
|
Screw 6 x 12 inch |
1 |
|
|
017 |
189-0273
|
Bearing |
2 |
|
|
018 |
203-1796
|
Washer D20 |
2 |
|
|
019 |
203-1797
|
Brake axle |
1 |
|
|
020 |
203-1798
|
Plug / stopper |
2 |
|
|
021 |
189-1492
|
Nut M8 |
4 |
|
|
022 |
189-1415
|
Nut |
8 |
|
|
023 |
189-1405
|
Washer |
16 |
|
|
024 |
203-2846
|
Small wheel (OBSOLETE) |
2 |
|
|
025 |
203-1800
|
Screw 10 x 25 inch |
8 |
|
|
026 |
189-0575
|
Spring |
1 |
|
|
027 |
189-1489
|
Nut M6 |
2 |
|
|
028 |
203-1802
|
Frame |
1 |
|
|
029 |
189-1487
|
Washer |
5 |
|
|
030 |
189-2287
|
Washer SAE 1/4 inch |
1 |
|
|
031 |
189-1445
|
Turned eye screw |
2 |
|
|
032 |
189-1536
|
Nut with nylon ring |
2 |
|
|
033 |
189-0233
|
Rubber shim |
1 |
|
|
034 |
189-0913
|
Pedal |
1 |
|
|
035 |
189-1373
|
Screw 8 x 45 inch |
1 |
|
|
036 |
203-1807
|
Lever |
1 |
|
|
037 |
203-1808
|
Spacer 8 x 30 inch |
1 |
|
|
038 |
189-1461
|
Screw |
1 |
|
|
