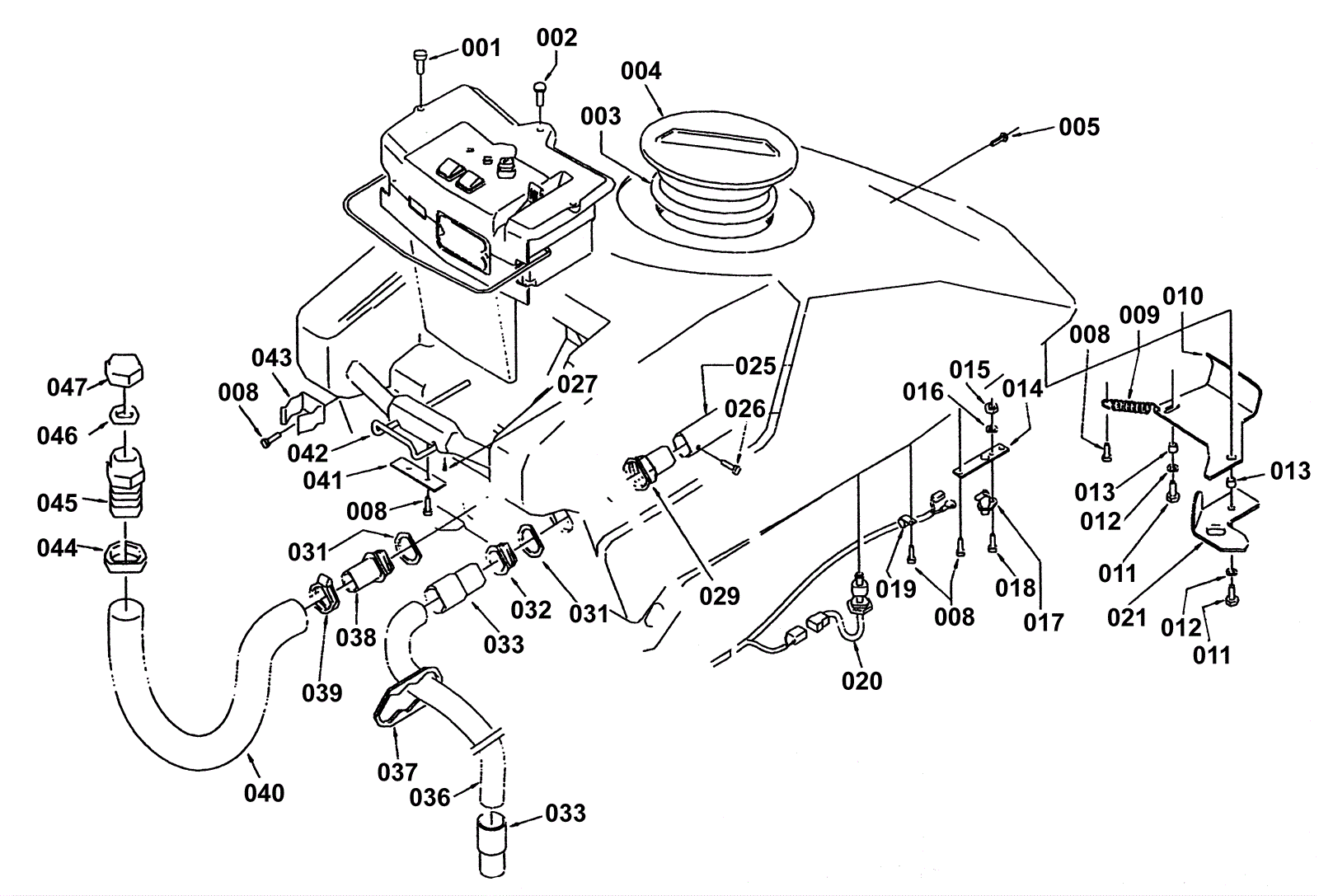

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-1638
|
Screw 6 x 20 inch |
2 |
|
|
002 |
203-0805
|
Toothed clip |
1 |
|
|
003 |
189-0293
|
Gasket |
1 |
|
|
004 |
189-0292
|
Cover |
1 |
|
|
005 |
189-2230
|
Screw M6 |
2 |
|
|
008 |
375-9544
|
Screw 5 x 12 |
12 |
|
|
009 |
189-2246
|
Spring |
1 |
|
|
010 |
189-2231
|
Coupling |
1 |
|
|
011 |
189-2232
|
Screw M8 |
2 |
|
|
012 |
189-0897
|
Washer D8 |
2 |
|
|
013 |
189-0095
|
Bushing |
2 |
|
|
014 |
189-2233
|
Plaque |
1 |
|
|
015 |
189-1384
|
Nut M4 |
1 |
|
|
016 |
189-1433
|
Washer |
1 |
|
|
017 |
189-2234
|
Push-button |
1 |
|
|
018 |
189-1431
|
Screw |
1 |
|
|
019 |
189-2235
|
Cable fastener |
5 |
|
|
020 |
189-2236
|
Float |
1 |
|
|
021 |
189-2256
|
Plaque |
1 |
|
|
025 |
189-2257
|
Pipe |
1 |
|
|
026 |
189-1451
|
Screw |
1 |
|
|
027 |
189-1634
|
Screw 4 x 8 inch |
1 |
|
|
029 |
203-0810
|
Connector |
1 |
|
|
031 |
203-0812
|
Gasket |
2 |
|
|
032 |
203-0813
|
Suction opening |
1 |
|
|
033 |
189-0118
|
Sleeve |
2 |
|
|
036a |
203-0815
|
Hose |
1 |
|
|
036b |
203-4300
|
Squeegee vacuum hose assembly |
1 |
|
|
037 |
189-0295
|
Plaque |
1 |
|
|
038 |
189-0693
|
Hose holder |
1 |
|
|
039 |
189-2258
|
Clamp |
1 |
|
|
040 |
189-2259
|
Tube |
1 |
|
|
041 |
189-2260
|
Plaque |
1 |
|
|
042 |
189-2261
|
Push-button |
1 |
|
|
043 |
189-0239
|
Ductlock |
1 |
|
|
044 |
189-2262
|
Nut |
1 |
|
|
045 |
189-2263
|
Connector |
1 |
|
|
046 |
189-2264
|
Recovery hose gasket |
1 |
|
|
047 |
189-2265
|
Cap |
1 |
|
|
