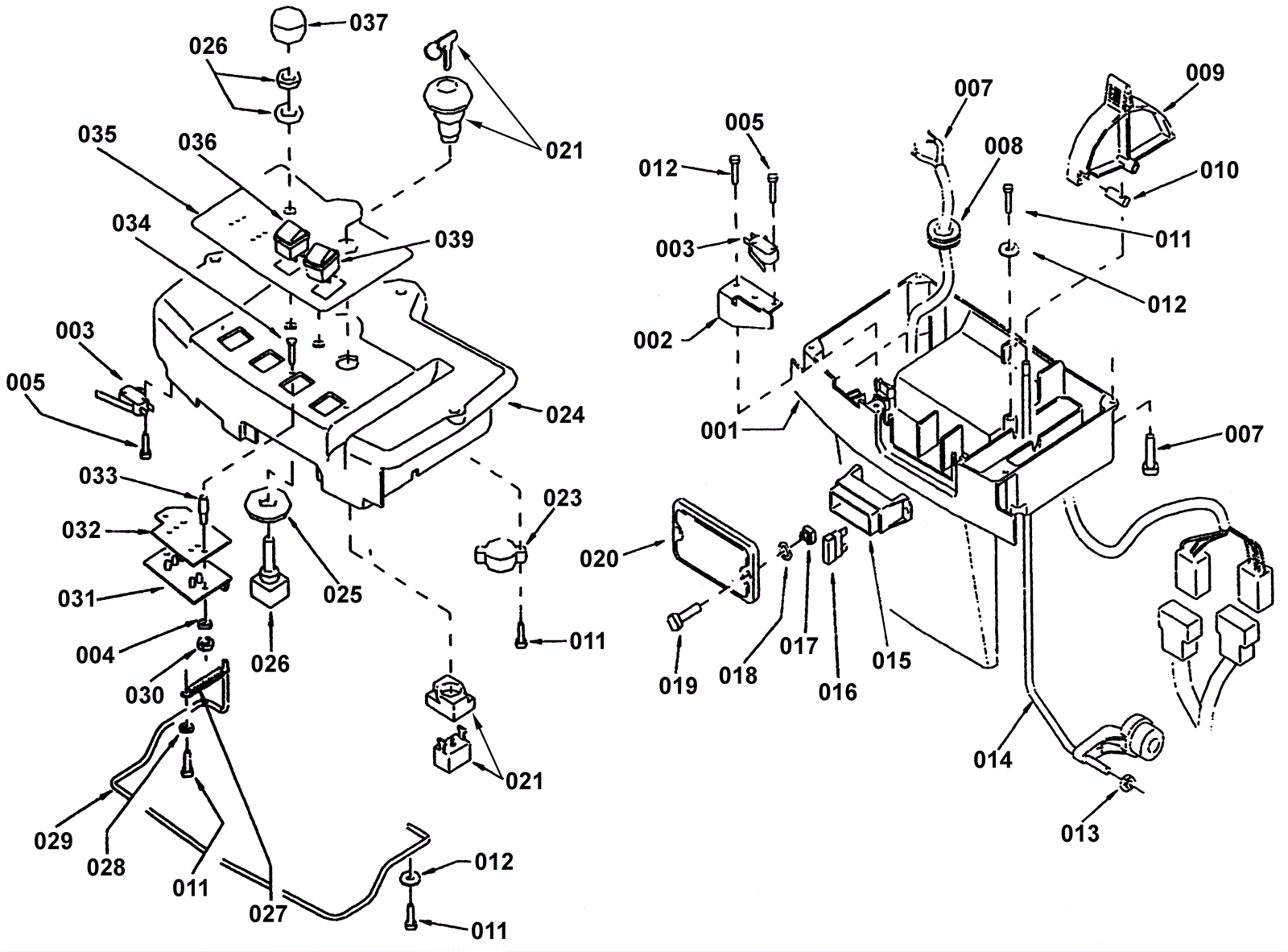

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
189-4682
|
Squeegee support wheel |
1 |
|
|
001 |
189-2239
|
Lower control panel housing |
1 |
|
|
002 |
203-1754
|
Microswitch |
1 |
|
|
003 |
189-0258
|
Microswitch |
3 |
|
|
004 |
189-2241
|
Washer D3 |
2 |
|
|
005 |
189-1640
|
Screw |
6 |
|
|
006 |
189-1624
|
Screw 3 1/2 x 16 inch |
6 |
|
|
007 |
189-2242
|
Wiring |
1 |
|
|
008 |
189-1133
|
Fairlead |
1 |
|
|
009 |
189-0288
|
Lever |
1 |
|
|
010 |
189-0289
|
Solution rod |
1 |
|
|
011 |
189-2243
|
5-10 inch M. 3 screw |
4 |
|
|
012 |
189-1504
|
Washer |
2 |
|
|
013 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
014 |
189-2244
|
Rod |
1 |
|
|
015 |
189-0659
|
Fuse holders |
1 |
|
|
016 |
189-0107
|
5 amp fuse |
2 |
|
|
017 |
189-1637
|
Nut M6 |
2 |
|
|
018 |
189-0755
|
Gasket |
4 |
|
|
019 |
189-1638
|
Screw 6 x 20 inch |
2 |
|
|
020 |
189-0834
|
Lid |
1 |
|
|
021a |
189-0264
|
Key switch complete |
1 |
|
|
021b |
189-0037
|
Key |
1 |
(included with 021a) |
|
023 |
189-0420
|
Indicator |
1 |
|
|
024 |
203-4364
|
Control panel |
1 |
|
|
025 |
189-1405
|
Washer |
2 |
|
|
026 |
189-0259
|
Potentiometer (OBSOLETE) |
1 |
|
|
027 |
189-2246
|
Spring |
1 |
|
|
028 |
189-1375
|
Washer D4 |
1 |
|
|
029 |
189-2247
|
Lever |
1 |
|
|
030 |
189-1446
|
Nut M3 |
2 |
|
|
031 |
189-2248
|
Board |
1 |
|
|
032 |
203-3344
|
Plate |
1 |
|
|
033 |
189-2250
|
Spacer |
2 |
|
|
034 |
189-2251
|
Screw 3 x 6 inch |
2 |
|
|
035 |
189-2252
|
Control panel decal |
1 |
|
|
036 |
189-2223
|
Switch |
1 |
|
|
037 |
189-0260
|
Knob |
1 |
|
|
039 |
189-2254
|
Push-button |
1 |
|
|
