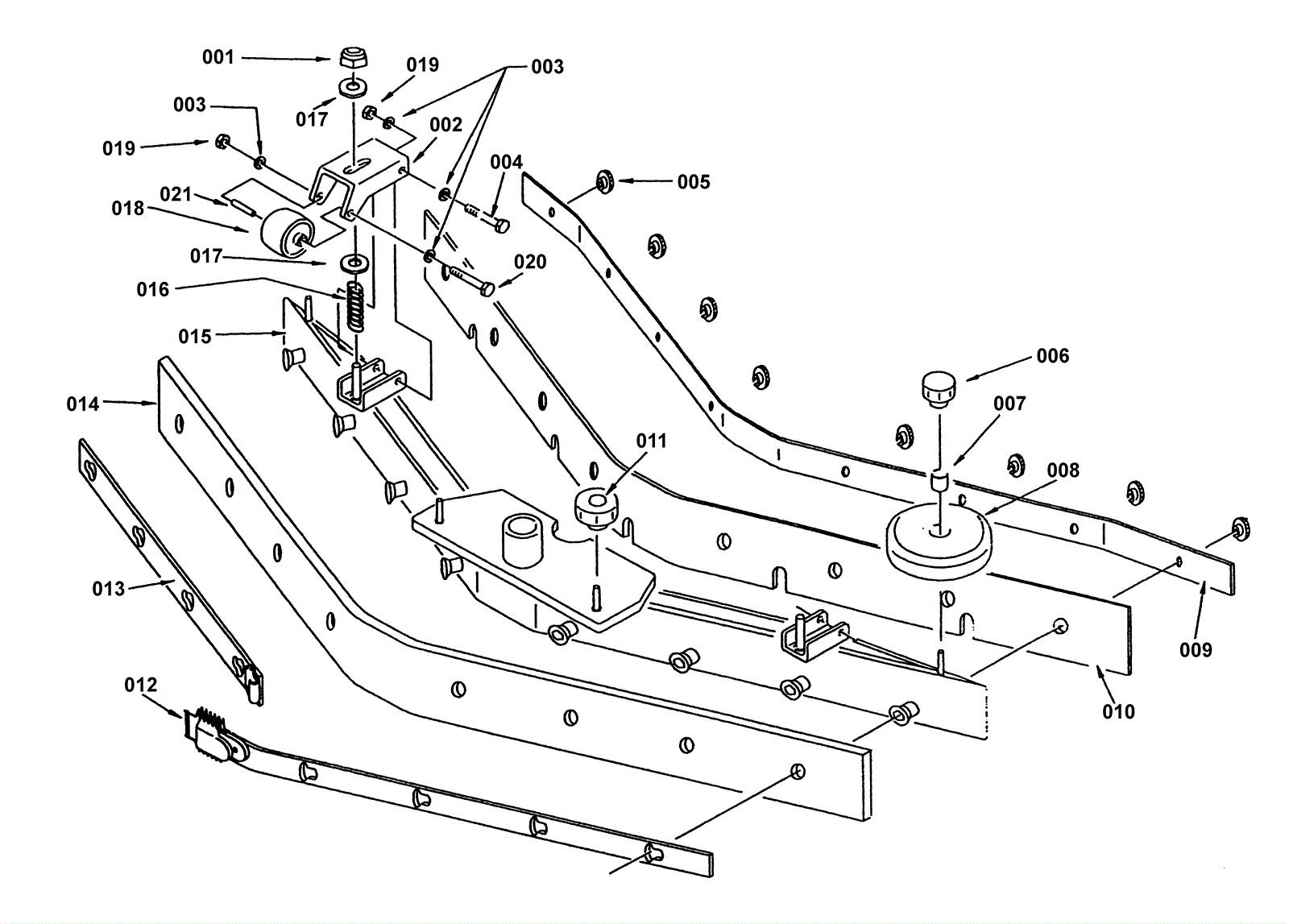

Squeegee

#PartDescription ReqNotesAvailability
000 189-2936 Complete squeegee
001 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
002 203-0916 Support 2
003 189-1487 Washer 12
004 189-1497 Screw 6 x 16 inch 4
005 189-0278 Handle 8
006 189-0058 Handle 2
007 203-0920 Spacer 2
008 189-0060 Wheel 2
009 189-0280 Squeegee blade holder 1
010 203-1820 Squeegee blade curved front 1 front
011 189-0071 Handle 2
012 189-0282 Squeegee blade holder 1
013 189-0283 Squeegee blade holder 1
014 203-1822 Squeegee blade curved rear 1 rear
015 203-4276 Squeegee assembly 1 Body no longer available alone.
016 189-0285 Spring 2
017 189-0897 Washer D8 4
018 189-2237 Wheel 2
019 999-0469 Nut M6-1 nylon insert lock zinc plated 6
020 189-1488 Screw M6 2
021 189-2238 Spacer D6 2
