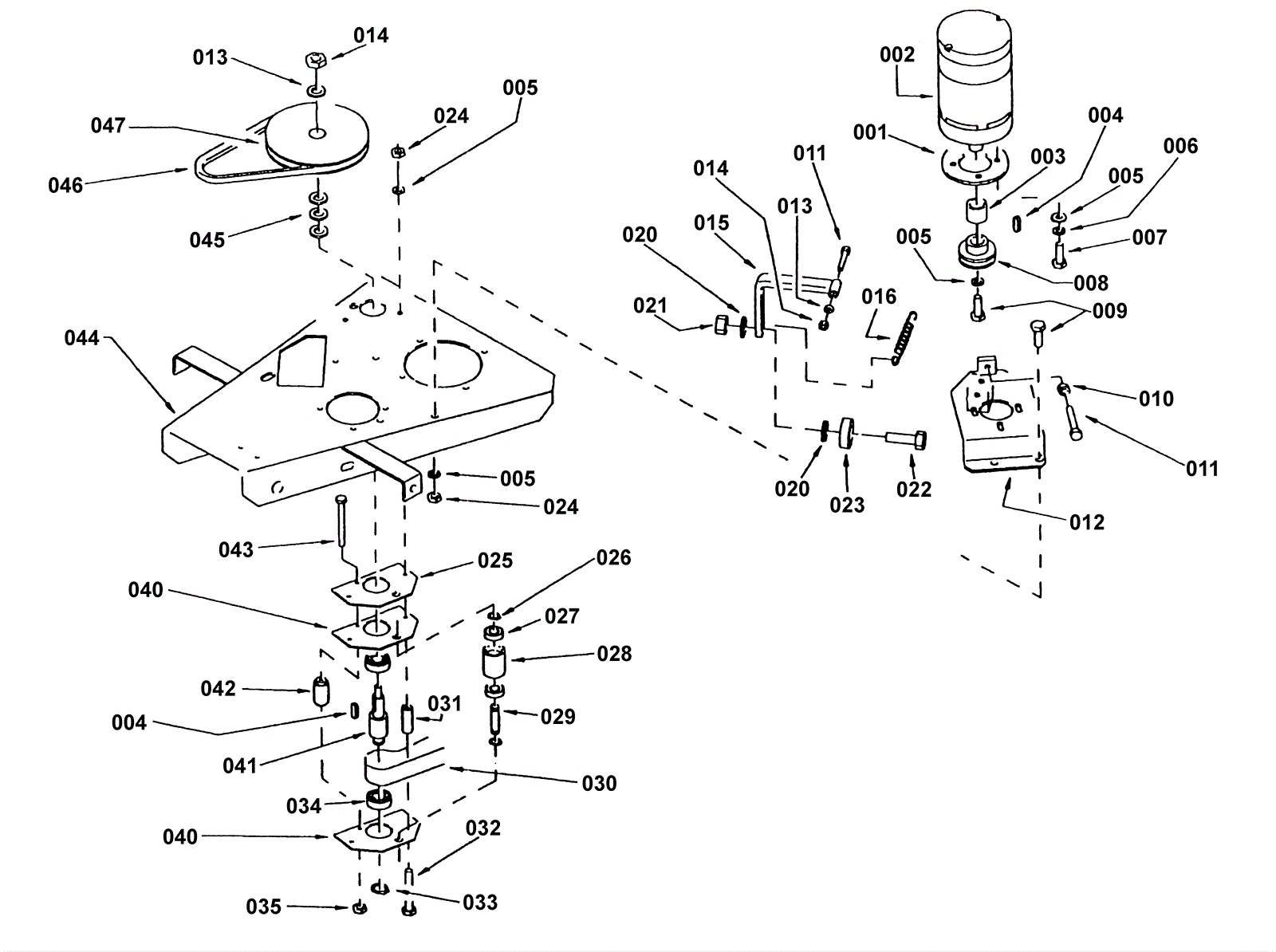

WS20 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
001 203-0857 Flange $79.41 1 usually ships 1-5 days
002 189-0155 Motor $2,377.87 1 usually ships 15-24 days
003 203-0859 Spacer $12.67 1 usually ships 1-5 days
004 189-0153 Tang-tongue $6.19 2 usually ships 1-5 days
005 189-1487 Washer $10.64 10 usually ships 15-24 days
006 189-1477 Washer cham $5.19 4 usually ships 15-24 days
007 189-1445 Turned eye screw $0.99 2 usually ships 15-24 days
008 189-0850 Pulley $104.86 1 usually ships 1-5 days
009 189-1497 Screw 6 x 16 inch $4.20 4 usually ships 15-24 days
010 189-1379 Nut M8 $30.60 1 usually ships 1-5 days
011 189-1373 Screw 8 x 45 inch $4.20 2 ships same day
012 203-2850 Support (OBSOLETE) $125.50 1 usually ships 1-5 days
013 189-1643 Washer $2.18 2 usually ships 1-5 days
014 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
015 203-2864 Arm $62.78 1 usually ships 15-24 days
016 203-0862 Spring $12.49 1 usually ships 15-24 days
020 189-1644 Washer $5.19 2 usually ships 1-5 days
021 189-1413 Nut M12 $4.25 1 usually ships 1-5 days
022 203-0864 Screw $6.26 1 usually ships 1-5 days
023 203-0865 Wheel $354.85 1 usually ships 15-24 days
024 203-0524 Nut M6 lock $5.50 5 usually ships 1-5 days
025 203-0866 Gasket $6.18 1 usually ships 1-5 days
026 189-0081 Ring $0.99 2 usually ships 15-24 days
027 203-3263 Bearing $34.43 2 ships same day
028 189-0146 Pulley $40.28 1 usually ships 15-24 days
029 189-0148 Pin/plug $19.81 1 usually ships 1-5 days
030 189-0152 Belt $205.79 1 usually ships 15-24 days
031 189-0147 Bearing $10.35 2 usually ships 15-24 days
032 189-1539 Screw $4.20 2 usually ships 15-24 days
033 189-0149 Ring $5.19 1 usually ships 1-5 days
034 189-0150 Bearing $36.52 2 usually ships 1-5 days
035 189-1489 Nut M6 $3.61 1 usually ships 1-5 days
040 189-0144 Plaque $41.88 2 usually ships 1-5 days
041 189-2438 Shaft $154.50 1 usually ships 15-24 days
042 189-2442 Spacer $18.67 1 usually ships 1-5 days
043 189-1488 Screw M6 $4.20 1 usually ships 15-24 days
044 203-2865 Head (OBSOLETE) Call for price 1 usually ships 1-5 days
045 189-1481 Washer $5.02 3 usually ships 1-5 days
046 189-0299 Belt $89.35 1 usually ships 1-5 days
047 189-0157 Pulley $347.73 1 usually ships 1-5 days
