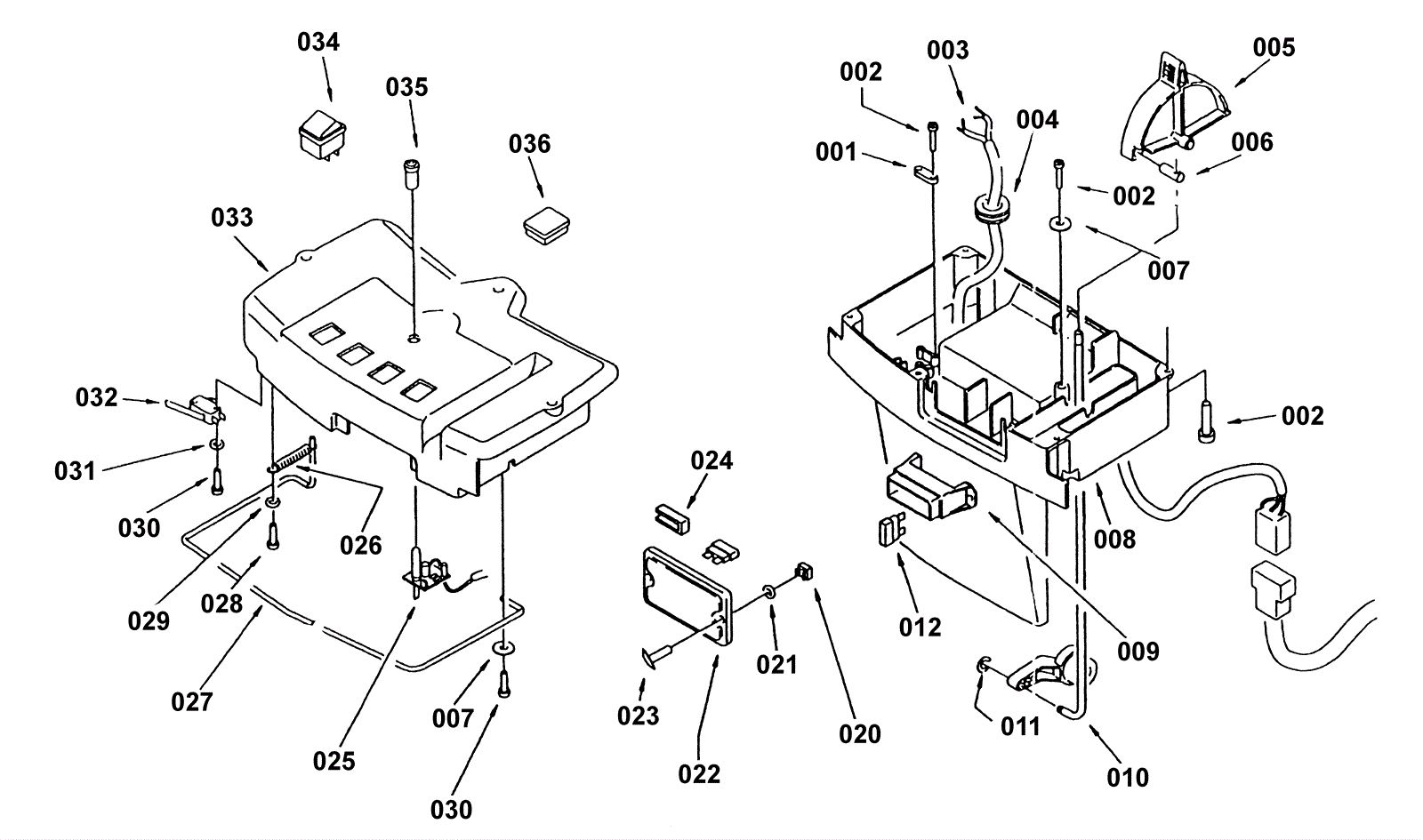

Control Panel

#PartDescription ReqNotesAvailability
001 189-1132 Cable clamping staple 1
002 189-1624 Screw 3 1/2 x 16 inch 8
004 189-1133 Fairlead 1
005 189-0288 Lever 1
006 189-0289 Solution rod 1
007 189-1462 Washer 5 x 14 inch 2
008 189-1134 Control panel 1
009 189-0256 Fuse carrier 1
010 189-0290 Solution control rod 1
011 189-0291 Snap ring 1
012a 189-0107 5 amp fuse 4
012b 203-3133 30amp fuse 2
025 189-0832 Circuit board 1
026 189-1135 Spring 1
027 189-1136 Lever 1
028 189-1639 Screw (OBSOLETE) 1
029 189-1375 Washer D4 1
030 189-1640 Screw 2
031 189-1441 Washer 1
032 189-0258 Microswitch 1
036 203-0785 Switch cover 1
N/S 189-0037 Key Before SN42210
N/S 203-0782 Relay For the vac motor
N/S 203-0840 Washer
