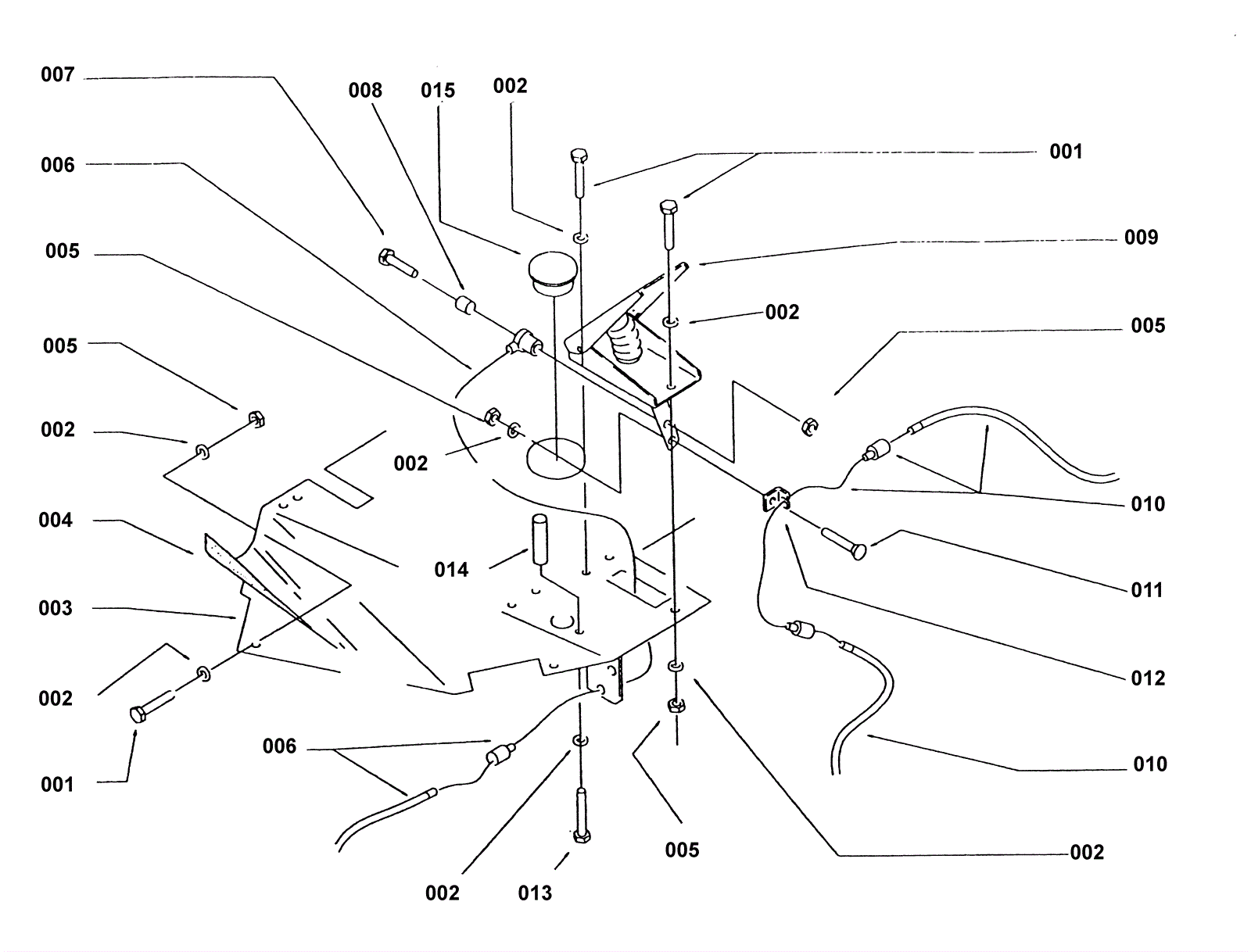

Brake Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1390 Screw $4.40 10 usually ships 1-5 days
002 189-1345 Washer d10 cham $4.84 22 usually ships 1-5 days
003 189-0740 Footboard Call for price 1 usually ships 1-5 days
004 189-0521 Covering / Coating Call for price 1 usually ships 1-5 days
005 189-1361 Nut $4.86 12 usually ships 1-5 days
006 189-0416 Cable $72.92 1 usually ships 1-5 days
007 189-1424 Screw $4.82 1 usually ships 1-5 days
008 189-0523 Bushing $9.72 1 usually ships 1-5 days
009 189-0524 Treadle (OBSOLETE) Call for price 1 usually ships 1-5 days
010 203-2615 Cable $128.82 1 usually ships 1-5 days
011 189-1365 Seat screw $28.60 1 usually ships 1-5 days
012 189-0526 Block / Lock $42.36 1 usually ships 1-5 days
013 189-1424 Screw $4.82 1 usually ships 1-5 days
014 189-0527 Spacer Call for price 1 usually ships 1-5 days
015 189-0741 Cap $9.67 14 usually ships 1-5 days
