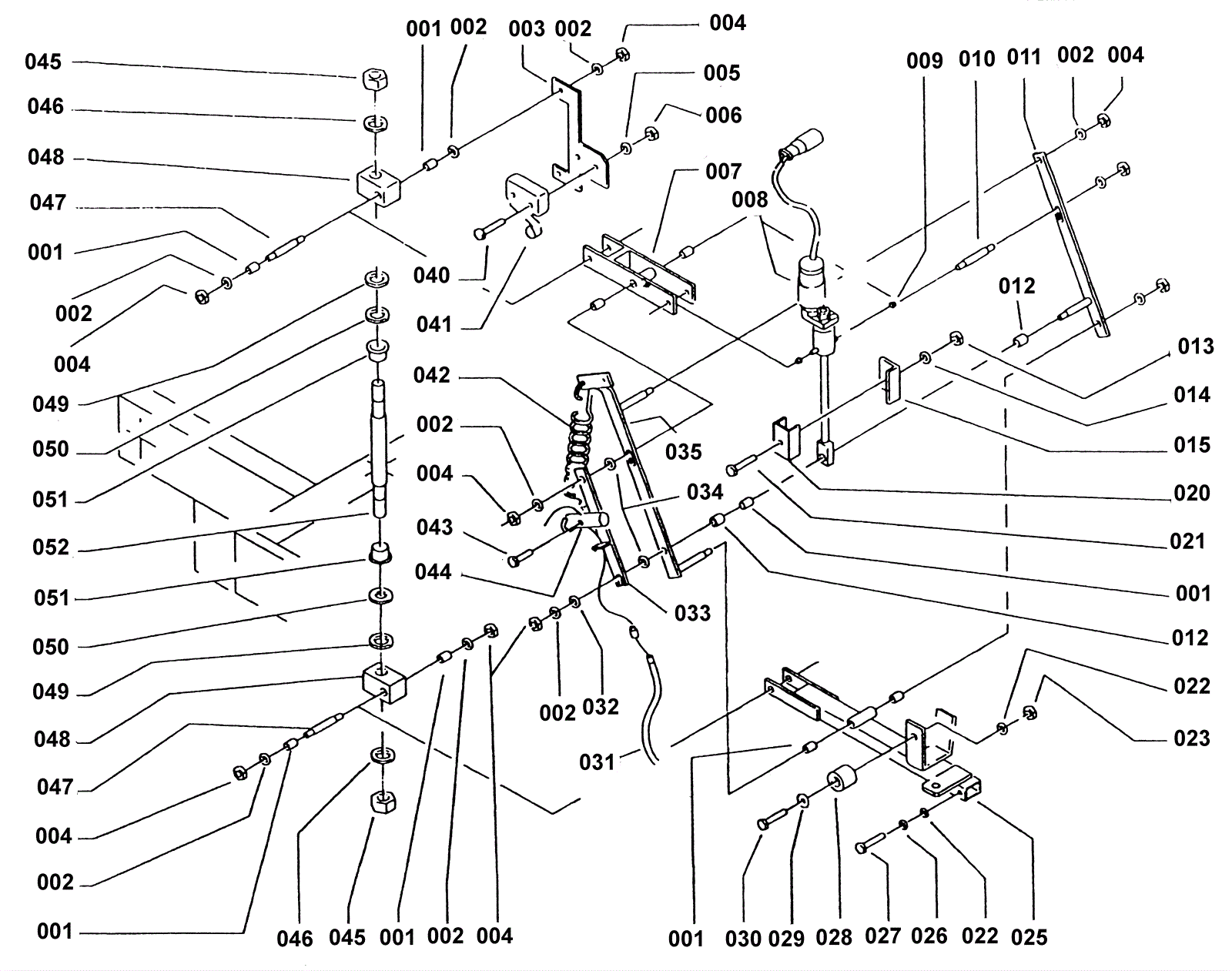

WS36T Rear Head Lift

#PartDescriptionPriceReqNotesAvailability
001 189-0539 Bearing $13.24 9 usually ships 1-5 days
002 189-1363 Washer $4.84 10 usually ships 1-5 days
003 189-0592 Support Call for price 1 usually ships 1-5 days
004 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 10 ships same day
005 189-1375 Washer D4 $2.90 2 usually ships 1-5 days
006 189-1384 Nut M4 $0.99 2 usually ships 5-15 days
007 189-0593 Lever $62.36 1 usually ships 1-5 days
008 189-0570 Actuator $792.79 1 usually ships 1-5 days
009 189-0569 Bearing $9.39 2 usually ships 1-5 days
010 189-0595 Pin $25.47 1 usually ships 1-5 days
011 189-0596 Lever $99.03 1 usually ships 1-5 days
012 189-0597 Spacer $5.95 2 usually ships 1-5 days
013 189-1385 Nut $29.26 1 usually ships 1-5 days
014 189-1386 Washer $2.05 1 usually ships 1-5 days
015 189-0598 Support $54.75 1 usually ships 1-5 days
020 189-0599 Spacer $43.12 1 usually ships 1-5 days
021 189-1387 Screw $23.54 1 usually ships 1-5 days
022 189-1345 Washer d10 cham $4.84 3 usually ships 1-5 days
023 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
025 189-0600 Lever Call for price 1 usually ships 1-5 days
026 189-1347 Washer $4.73 2 usually ships 1-5 days
027 189-1390 Screw $4.40 2 usually ships 1-5 days
028 189-0574 Plug / Stopper $5.50 1 usually ships 1-5 days
029 189-1391 Washer D6 $0.99 1 usually ships 5-15 days
030 189-1392 Screw $6.33 1 usually ships 1-5 days
031 189-0472 Cable $82.04 1 usually ships 1-5 days
032 189-1393 Washer $2.79 1 usually ships 1-5 days
033 189-0602 Plate Call for price 1 usually ships 1-5 days
034 189-1394 Washer D13 $2.79 2 usually ships 1-5 days
035 189-0603 Plate Call for price 1 usually ships 1-5 days
040 189-1395 Screw Call for price 2 usually ships 1-5 days
041 203-1754 Microswitch $70.46 1 usually ships 5-15 days
042 189-0604 Spring (OBSOLETE) $77.36 2 usually ships 1-5 days
043 189-1357 Screw 6 x 12 inch $3.94 1 usually ships 5-15 days
044 189-0605 Pin Call for price 1 usually ships 1-5 days
045 189-1358 Nut $1.06 2 usually ships 1-5 days
046 189-1366 Washer D14 $2.79 2 usually ships 1-5 days
047 189-0606 Pin $27.97 2 usually ships 1-5 days
048 189-0607 Block / Lock Call for price 2 usually ships 1-5 days
049 189-1381 Washer $2.38 2 usually ships 1-5 days
050 189-1372 Washer Call for price 2 usually ships 1-5 days
051 189-0465 Bearing $3.52 2 usually ships 1-5 days
052 189-0608 Pin Call for price 1 usually ships 1-5 days
