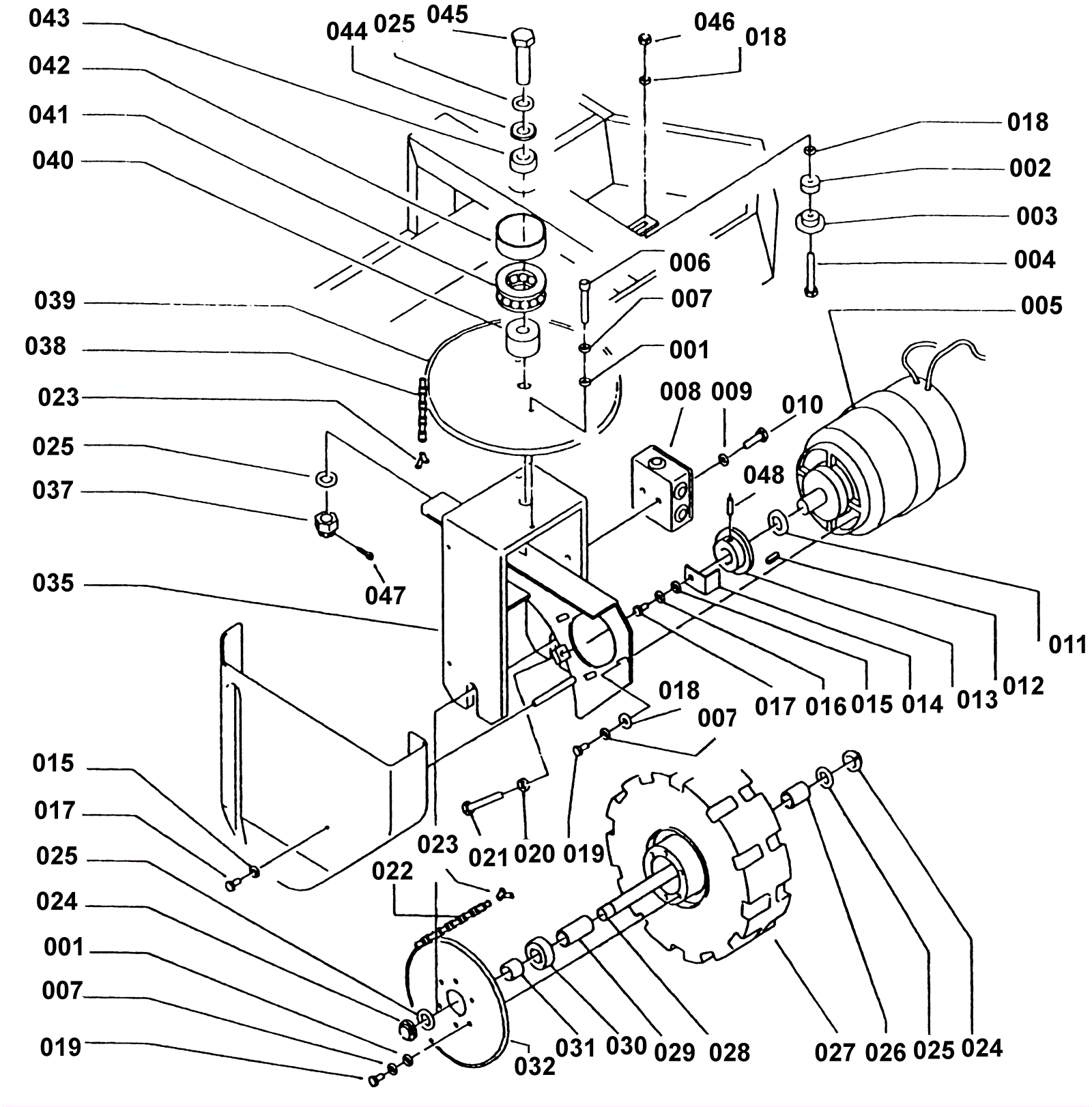

WS36T Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1363 Washer $4.84 14 usually ships 1-5 days
002 189-0609 Spacer $30.69 1 usually ships 1-5 days
003 189-0610 Chain tightener $168.29 1 usually ships 1-5 days
004 189-1373 Screw 8 x 45 inch $3.94 1 ships same day
005 189-0611 Traction motor $4,458.63 1 usually ships 1-5 days
006 189-1374 Screw $4.86 2 usually ships 1-5 days
007 189-1369 Washer cham $4.86 12 usually ships 1-5 days
008 189-0612 Electric housing (OBSOLETE) Call for price 1 usually ships 1-5 days
009 189-1375 Washer D4 $2.90 2 usually ships 1-5 days
010 189-1376 Screw 4 x 10 inch $3.94 2 usually ships 5-15 days
011 189-1377 Washer Call for price 1 usually ships 1-5 days
012 189-0737 Tongue Call for price 1 usually ships 1-5 days
013 189-0613 Pinion $124.65 1 usually ships 1-5 days
014 189-0614 Plate $50.16 1 usually ships 1-5 days
015 189-1345 Washer d10 cham $4.84 4 usually ships 1-5 days
016 189-1347 Washer $4.73 1 usually ships 1-5 days
017 189-1424 Screw $4.82 3 usually ships 1-5 days
018 189-1378 Washer $4.84 5 usually ships 1-5 days
019 189-1367 Screw Call for price 10 usually ships 1-5 days
020 189-1379 Nut M8 $28.60 1 usually ships 1-5 days
021 189-1370 Screw $4.86 1 usually ships 1-5 days
022 189-0615 Traction chain $124.78 1 usually ships 1-5 days
023 189-0616 Chain link $16.95 2 usually ships 1-5 days
024 189-1380 Nut $19.82 2 usually ships 1-5 days
025 189-1381 Washer $2.38 4 usually ships 1-5 days
026 189-0617 Spacer $11.92 1 usually ships 1-5 days
027 189-0618 Driver wheel $2,350.38 1 usually ships 1-5 days
028 189-0619 Pin $43.20 1 usually ships 1-5 days
029 189-0620 Spacer $35.51 1 usually ships 1-5 days
030 189-0621 Bearing $95.04 1 usually ships 1-5 days
031 189-0622 Spacer $6.22 1 usually ships 1-5 days
032 189-0623 Crown $471.01 1 usually ships 1-5 days
035 189-0624 Fork Call for price 1 usually ships 1-5 days
037 189-1382 Nut Call for price 1 usually ships 1-5 days
038 189-0625 Steering chain $136.72 1 usually ships 1-5 days
039 189-0626 Crown $450.77 1 usually ships 1-5 days
040 189-0627 Spacer $129.78 1 usually ships 1-5 days
041 189-0628 Bearing $203.35 1 usually ships 1-5 days
042 189-0629 Guard $5.78 1 usually ships 1-5 days
044 189-0631 Ring $31.21 1 usually ships 1-5 days
045 189-1383 Screw Call for price 1 usually ships 1-5 days
047 189-0632 Split pin Call for price 1 usually ships 1-5 days
048a 189-0633 Split pin (OBSOLETE) Call for price 1 usually ships 1-5 days
048b 189-0634 Motor drum Call for price 1 usually ships 1-5 days
