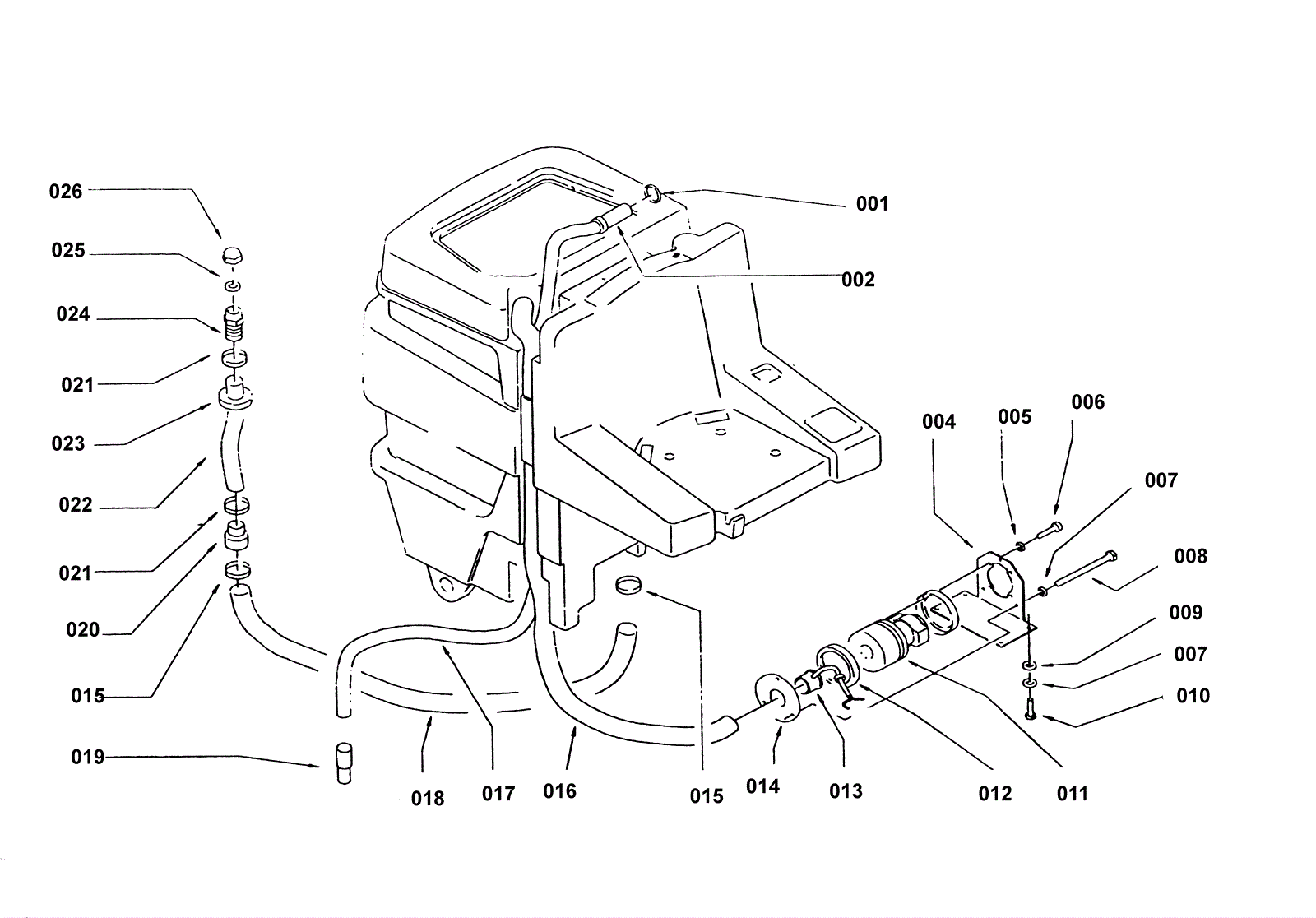

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-0680
|
Gasket |
1 |
|
|
002 |
189-0679
|
Sleeve |
1 |
|
|
004 |
189-0681
|
Support |
1 |
|
|
005 |
189-1345
|
Washer d10 cham |
4 |
|
|
006 |
189-1346
|
Screw |
4 |
|
|
007 |
189-1347
|
Washer |
7 |
|
|
008 |
189-1348
|
Screw |
3 |
|
|
009 |
189-1356
|
Washer 6-18 inch |
4 |
|
|
010 |
189-1424
|
Screw |
4 |
|
|
011a |
189-0684
|
Vacuum motor |
1 |
(OEM) |
|
011b |
991-1212
|
36V 3 stage vacuum motor peripheral |
1 |
(NON-OEM) |
|
012 |
189-0185
|
Gasket |
2 |
|
|
013 |
189-0782
|
Connector |
1 |
|
|
014 |
189-0686
|
Flange |
1 |
|
|
015 |
189-0687
|
Clamp |
2 |
|
|
016 |
189-0688
|
Spring hose |
1 |
|
|
017 |
189-0023
|
Squeegee vac hose |
1 |
|
|
018 |
189-0024
|
Recovery drain hose |
1 |
|
|
019 |
189-0118
|
Sleeve |
1 |
|
|
020 |
189-0689
|
Connector |
1 |
|
|
021 |
189-0690
|
Clamp |
2 |
|
|
022 |
189-0691
|
Drain hose sheath |
1 |
|
|
023 |
189-0692
|
Drain hose adapter |
1 |
|
|
024 |
189-0693
|
Hose holder |
1 |
|
|
025 |
189-0694
|
Gasket |
1 |
|
|
026 |
189-0695
|
Cap |
1 |
|
|
