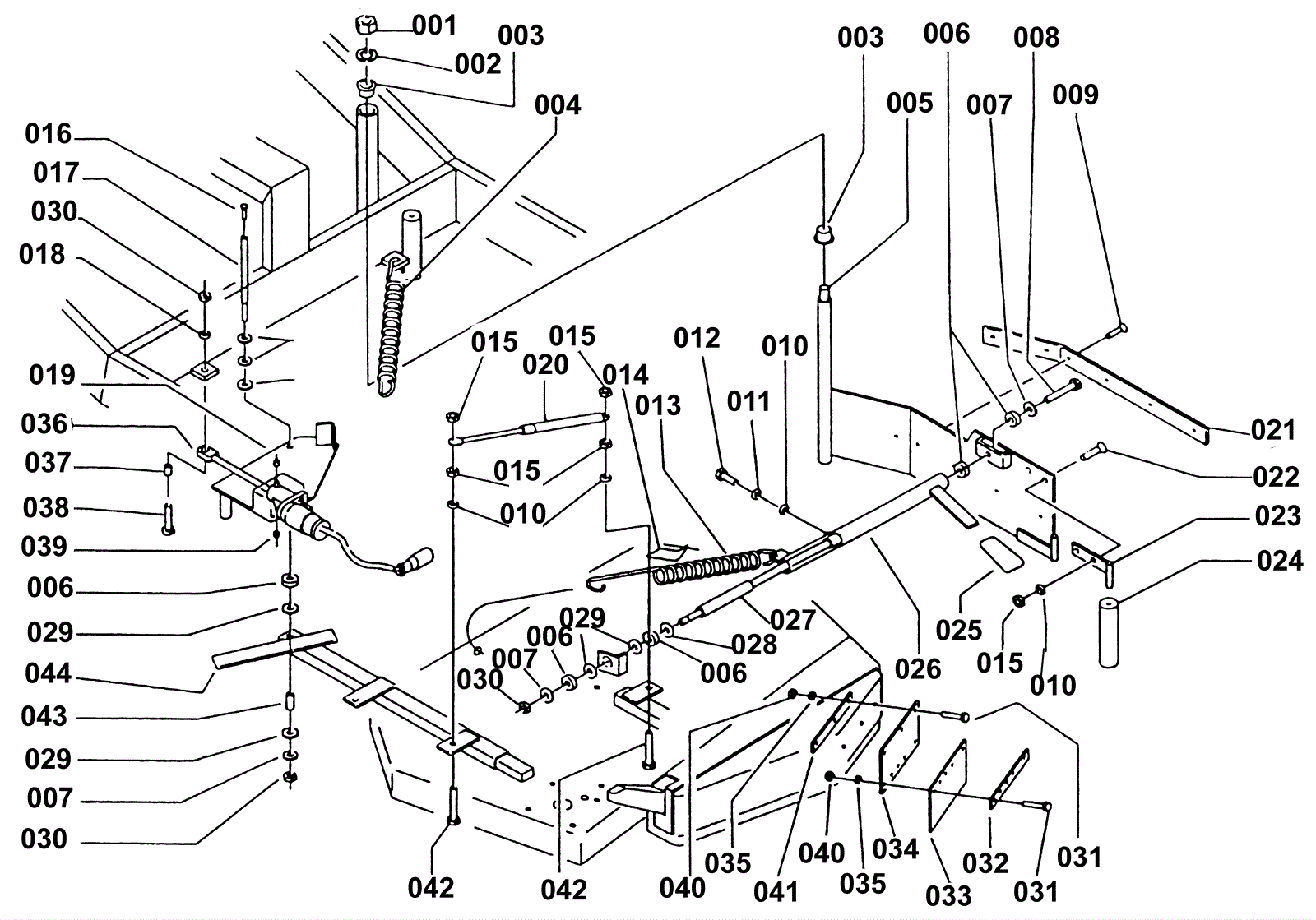

AS36 Head Exit

#PartDescriptionPriceReqNotesAvailability
001 189-1358 Nut $1.06 1 usually ships 1-5 days
002 189-1366 Washer D14 $2.79 1 usually ships 1-5 days
003 189-0465 Bearing $3.52 2 usually ships 1-5 days
004 189-0554 Spring Call for price 1 usually ships 1-5 days
005 189-0555 Bumper $383.59 1 usually ships 1-5 days
006 189-0223 Rubber shim $7.79 5 usually ships 1-5 days
007 189-1378 Washer $4.84 4 usually ships 1-5 days
008 189-1404 Screw M8 $0.99 1 usually ships 1-5 days
009 189-1396 Screw Call for price 6 usually ships 1-5 days
010 189-1345 Washer d10 cham $4.84 7 usually ships 1-5 days
011 189-1347 Washer $4.73 1 usually ships 1-5 days
012 999-0924 Bolt 3/8-16 x 6-15/16 turned eye zinc plated $3.60 1 ships same day
013 189-0556 Spring $42.47 1 usually ships 1-5 days
014 189-0557 Label Call for price 1 usually ships 1-5 days
015 189-1361 Nut $4.86 8 usually ships 1-5 days
016 189-1407 Screw $5.50 1 usually ships 1-5 days
017 189-0572 Pivot pin $40.54 1 usually ships 1-5 days
018 189-1363 Washer $4.84 1 usually ships 1-5 days
019 189-0571 Crank Call for price 1 usually ships 1-5 days
020 189-0558 Spring $247.97 1 usually ships 1-5 days
021 189-0559 Strip / Band Call for price 1 usually ships 1-5 days
022 189-1365 Seat screw $28.60 4 usually ships 1-5 days
023 189-0560 Plate $124.21 2 usually ships 14-27 days
024 189-0561 Roller Call for price 1 usually ships 1-5 days
025 203-0522 Handle $11.87 1 usually ships 1-5 days
026 189-0562 Lever Call for price 1 usually ships 1-5 days
027 189-0563 Lever Call for price 1 usually ships 1-5 days
028 189-1405 Washer $5.70 3 usually ships 1-5 days
029 189-1394 Washer D13 $2.79 4 usually ships 1-5 days
031 189-1406 Screw $3.96 8 usually ships 1-5 days
032 189-0564 Strip / Band Call for price 1 usually ships 1-5 days
033 189-0565 Flap $4.09 1 usually ships 1-5 days
034 189-0566 Support Call for price 1 usually ships 1-5 days
035 203-0145 Washer 4-16 inch $2.79 8 usually ships 10-12 days
036 189-0570 Actuator $792.79 1 usually ships 1-5 days
037 189-0059 Spacer $3.52 1 usually ships 1-5 days
038 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
039 189-0569 Bearing $9.39 2 usually ships 1-5 days
040 189-1384 Nut M4 $0.99 8 usually ships 10-12 days
041 189-0567 Plate Call for price 1 usually ships 1-5 days
042 189-1392 Screw $6.33 2 usually ships 1-5 days
043 189-0234 Spacer $6.02 1 usually ships 1-5 days
044 189-0568 Lever $328.93 1 usually ships 1-5 days
