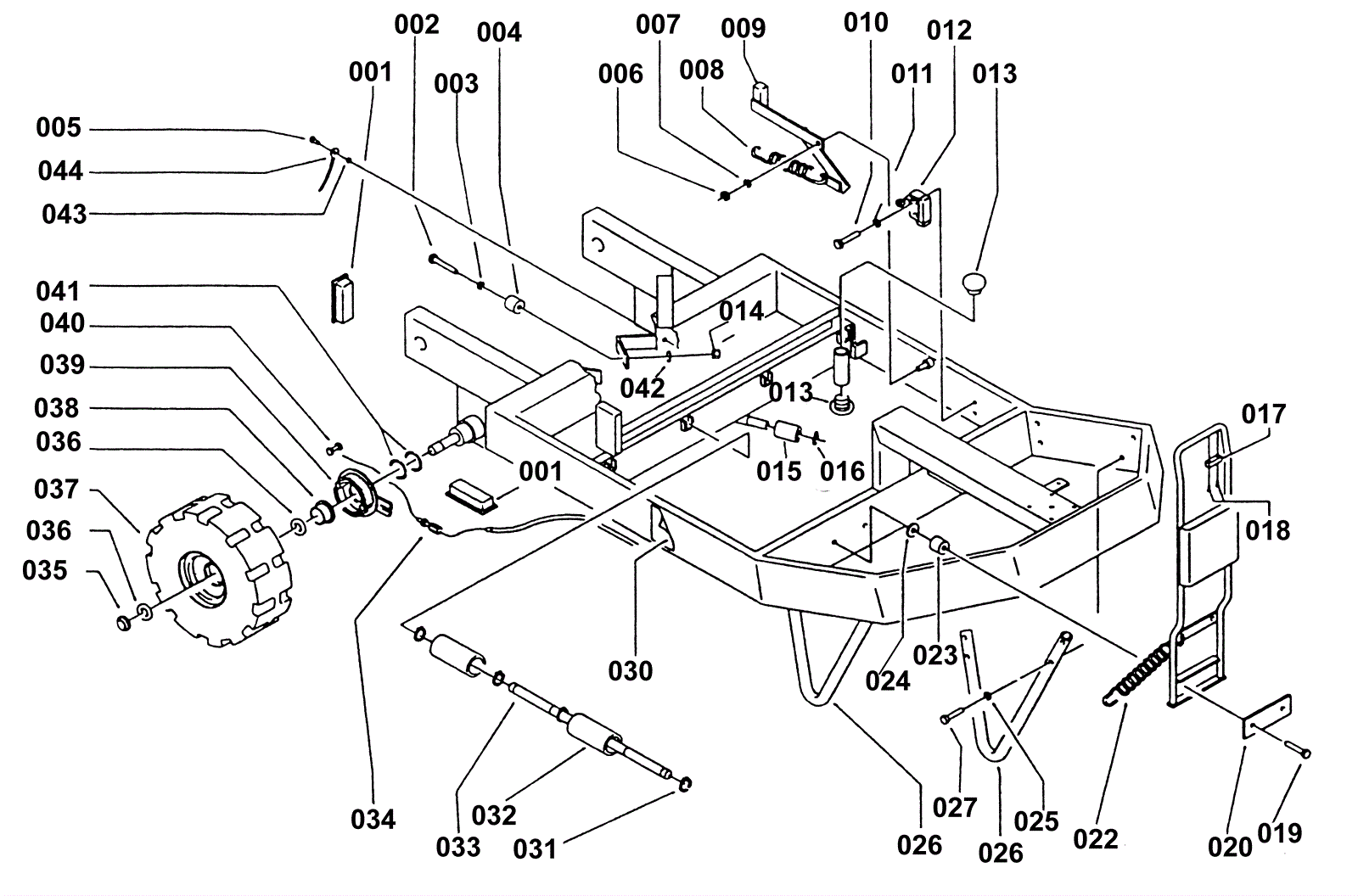

AS30 Frame

#PartDescriptionPriceReqNotesAvailability
001 189-0573 Terminal Call for price 4 usually ships 1-5 days
002 189-1392 Screw $5.75 2 usually ships 1-5 days
003 189-1391 Washer D6 $2.87 2 usually ships 5-15 days
004 189-0574 Plug / Stopper $5.00 2 usually ships 1-5 days
005 999-0924 Bolt 3/8-16 x 6-15/16 turned eye zinc plated $3.60 1 ships same day
007 189-1363 Washer $4.32 1 usually ships 1-5 days
008 189-0575 Spring $10.40 1 usually ships 1-5 days
009 189-0576 Lever Call for price 1 usually ships 1-5 days
010 189-1395 Screw Call for price 2 usually ships 1-5 days
011 189-1375 Washer D4 $4.32 2 usually ships 1-5 days
012 203-1754 Microswitch $62.79 1 usually ships 5-15 days
013 189-0577 Plug Call for price 6 usually ships 1-5 days
014 189-1361 Nut $4.34 2 usually ships 1-5 days
015 189-0578 Roller Call for price 1 usually ships 1-5 days
016 189-0579 Seeger Call for price 1 usually ships 1-5 days
017 189-0580 Connection Call for price 1 usually ships 1-5 days
018 189-1396 Screw Call for price 2 usually ships 1-5 days
019 189-1397 Screw $10.40 2 usually ships 1-5 days
020 189-0581 Plate Call for price 1 usually ships 1-5 days
022 189-0582 Spring $8.46 2 usually ships 1-5 days
023 189-0583 Spacer Call for price 2 usually ships 1-5 days
024 189-1398 Washer 6 x 24 inch $2.50 2 usually ships 5-15 days
025 189-1369 Washer cham $4.34 8 usually ships 1-5 days
026 189-0584 Hose Call for price 2 usually ships 1-5 days
027 189-1399 Screw M8 zinc $4.34 8 usually ships 1-5 days
028 189-1400 Washer $4.32 1 usually ships 5-15 days
029 189-1401 Screw $4.34 1 usually ships 1-5 days
030 189-0585 Label Call for price 1 usually ships 1-5 days
031 189-0149 Ring $4.32 16 usually ships 1-5 days
032 189-0586 Roller $55.68 8 usually ships 1-5 days
033 189-0587 Pin $62.67 4 usually ships 1-5 days
034 189-0415 Register $12.02 2 usually ships 1-5 days
035 189-1380 Nut $17.67 2 usually ships 1-5 days
036 189-1381 Washer $2.12 4 usually ships 1-5 days
037 189-0588 Rear wheel rubber $1,893.37 2 usually ships 1-5 days
038 189-0589 Bushing $93.96 2 usually ships 1-5 days
039 189-0590 Block $235.55 2 usually ships 1-5 days
040 173-2292 1.5 hole snap bushing $3.80 2 usually ships 1-5 days
041 189-1402 Washer Call for price 4 usually ships 1-5 days
042 189-1345 Washer d10 cham $4.32 2 usually ships 1-5 days
043 189-1403 Washer D8 $4.32 1 usually ships 5-15 days
044 189-0591 Cable Call for price 1 usually ships 1-5 days
