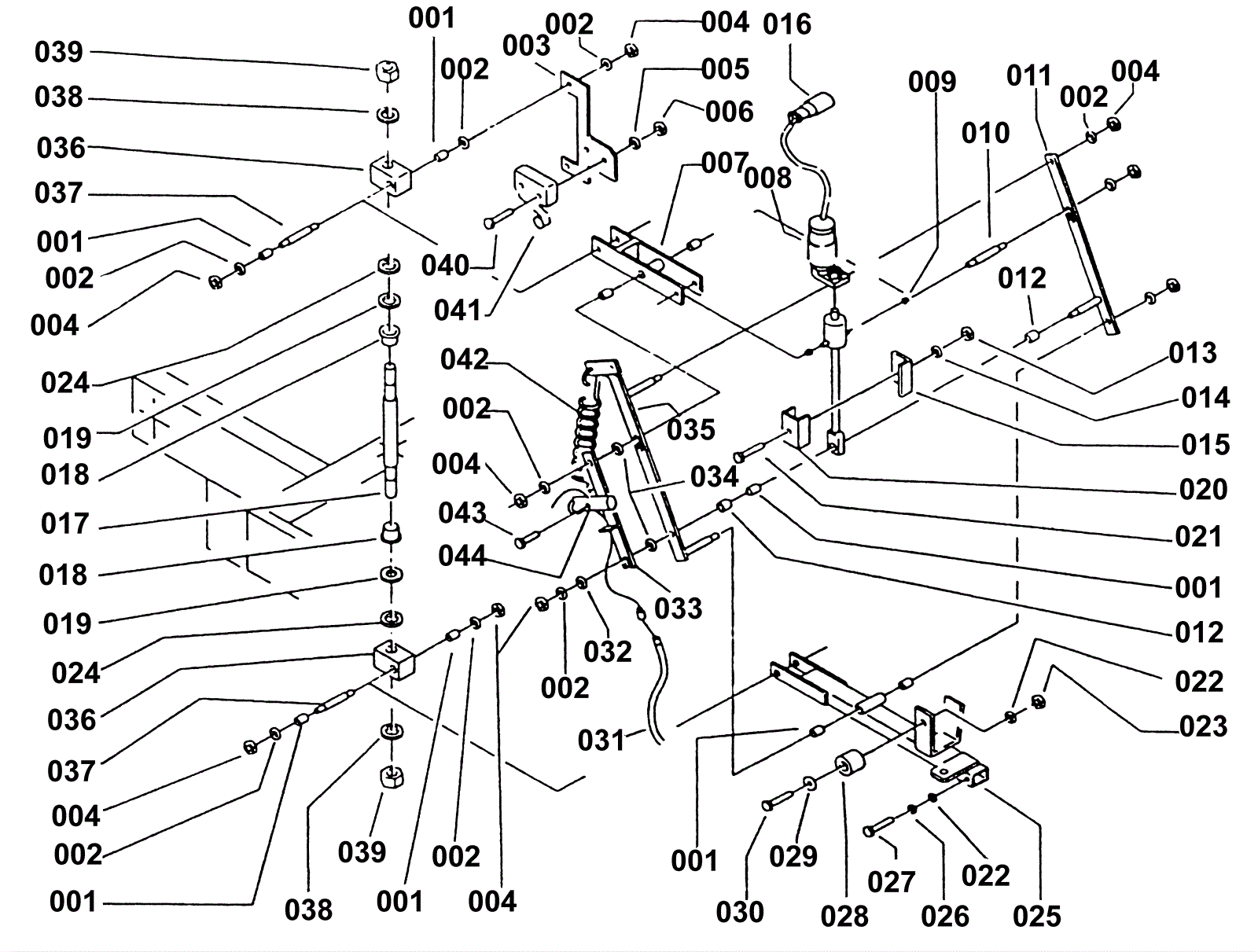

AS30 Rear Head Lift

#PartDescriptionPriceReqNotesAvailability
001 189-0539 Bearing $11.80 9 usually ships 1-5 days
002 189-1363 Washer $4.32 10 usually ships 1-5 days
003 189-0592 Support Call for price 1 usually ships 1-5 days
004 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 10 ships same day
005 189-1375 Washer D4 $4.32 2 usually ships 1-5 days
006 189-1384 Nut M4 $0.90 2 usually ships 5-15 days
007 189-0593 Lever $55.58 1 usually ships 1-5 days
008 189-0570 Actuator $706.59 1 usually ships 1-5 days
009 189-0569 Bearing $8.37 2 usually ships 1-5 days
010 189-0595 Pin $22.70 1 usually ships 1-5 days
011 189-0596 Lever $90.03 1 usually ships 1-5 days
012 189-0597 Spacer $5.30 2 usually ships 1-5 days
013 189-1385 Nut $2.26 1 usually ships 1-5 days
014 189-1386 Washer $1.82 1 usually ships 1-5 days
015 189-0598 Support $48.79 1 usually ships 1-5 days
016 189-0594 Wiring unit $129.55 1 usually ships 1-5 days
017 189-0608 Pin Call for price 1 usually ships 1-5 days
018 189-0465 Bearing $18.51 2 usually ships 1-5 days
019 189-1372 Washer Call for price 2 usually ships 1-5 days
020 189-0599 Spacer $38.43 1 usually ships 1-5 days
021 189-1387 Screw $21.40 1 usually ships 1-5 days
022 189-1345 Washer d10 cham $4.32 3 usually ships 1-5 days
023 189-1385 Nut $2.26 1 usually ships 1-5 days
024 189-1381 Washer $2.12 2 usually ships 1-5 days
025 189-0500 Handle Call for price 1 usually ships 1-5 days
026 189-1347 Washer $4.22 2 usually ships 1-5 days
027 189-1390 Screw $4.00 2 usually ships 1-5 days
028 189-0574 Plug / Stopper $5.00 1 usually ships 1-5 days
029 189-1391 Washer D6 $2.87 1 usually ships 5-15 days
030 189-1392 Screw $5.75 1 usually ships 1-5 days
031 189-0472 Cable $73.12 1 usually ships 1-5 days
032 189-1393 Washer $4.32 1 usually ships 1-5 days
033 189-0602 Plate Call for price 1 usually ships 1-5 days
034 189-1394 Washer D13 $5.22 2 usually ships 1-5 days
035 189-0603 Plate Call for price 1 usually ships 1-5 days
036 189-0607 Block / Lock Call for price 2 usually ships 1-5 days
037 189-0600 Lever Call for price 2 usually ships 1-5 days
038 189-1366 Washer D14 $4.22 2 usually ships 1-5 days
039 189-1358 Nut $0.94 2 usually ships 1-5 days
040 189-5021 T-handle support paint $67.43 2 usually ships 1-5 days
041 203-1754 Microswitch $62.79 1 usually ships 5-15 days
042 189-0604 Spring (OBSOLETE) $70.33 2 usually ships 1-5 days
043 189-1357 Screw 6 x 12 inch $4.34 1 usually ships 5-15 days
044 189-0605 Pin Call for price 1 usually ships 1-5 days
