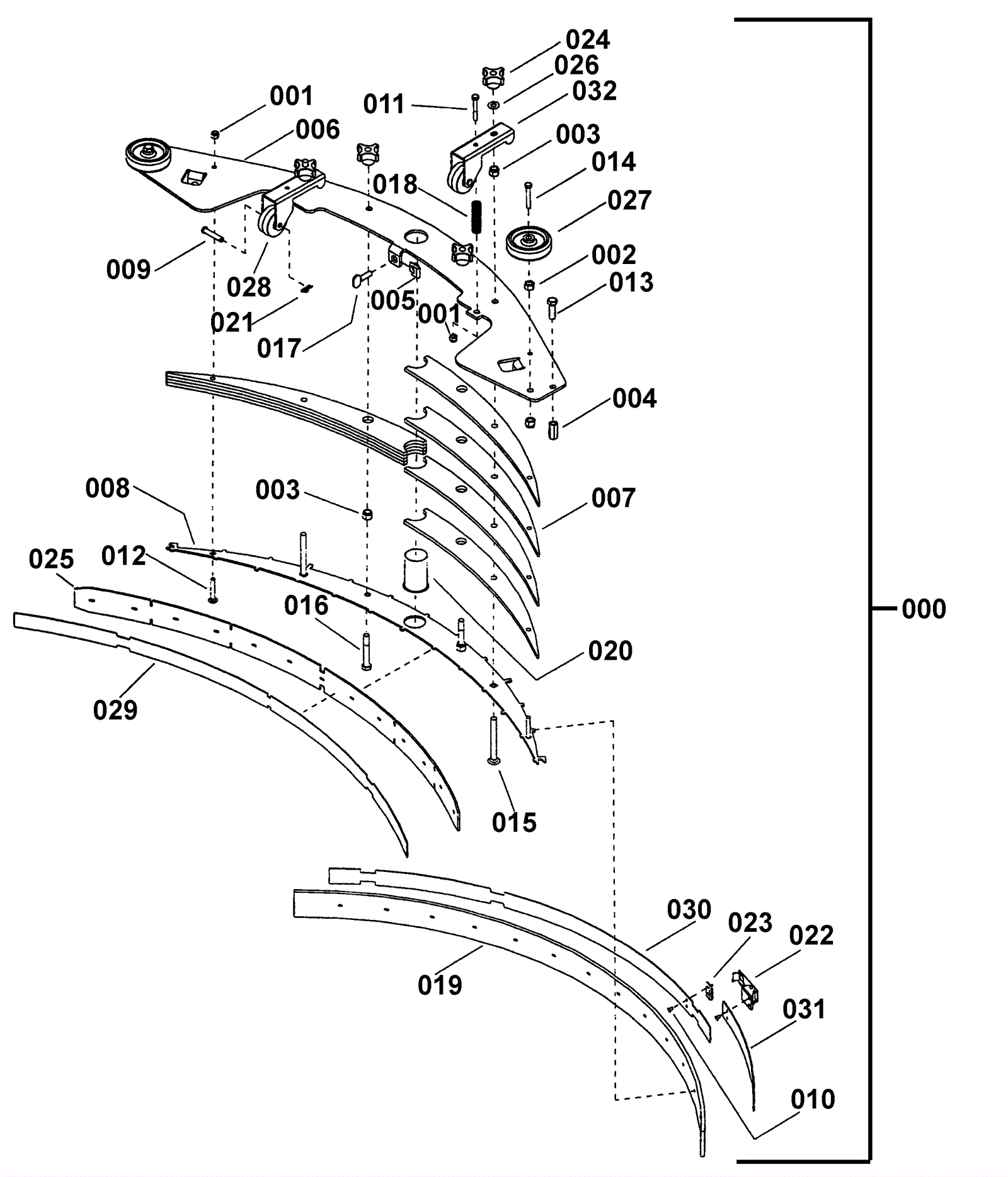

Squeegee Assembly - 32 inch

#PartDescription ReqNotesAvailability
000 173-0614 Squeegee assembly 34 inch
001 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
003 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 6
005 173-3935 Nut 5/16-18 captive jam (OBSOLETE) 3
006 189-0350 Squeegee retainer top plate 1
007 189-1042 Squeegee filler plate 8
008 189-0351 Squeegee blade retainer plate 7
009 173-3181 Clevis pin 2
010 173-2797 Rivet 4
011 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
012 189-1610 Screw 1/4-20 x 1 1/2 elevator 2
013 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 2
015 999-1399 Screw 3/8-16 x 3 1/2 carriage head stainless steel 2
016 173-3939 Screw 3/8-16 x 2 1/2 self tapping (OBSOLETE) 2
017 173-3940 Screw 5/16-18 x 1 thumb type p stainless steel 3
018 189-0353 Compression spring 2
019a 173-7374 Squeegee blade rear linatex red 44 inch - 13 hole 1 28 inch and 32 inch Notes: Red blade
Posted By: cmm
10/13/2003 12:03:53 PM Source: Betco/Cindy
Notes: for 28inch and 32inch red blade
Posted By: cmm
10/13/2003 12:05:21 PM Source: Betco/Cindy
019b 173-2651 Squeegee blade rear 44 inch 1 28 inch and 32 inch
019c 189-1043 Rear squeegee blade 1 28 inch and 32 inch
020 173-1643 Vacuum hose intake tube 1
021 173-1480 Cotter ring 2
022 173-0412 Squeegee strap latch 1
023 170-7029 Keeper 1
024 173-1025 Knob 4
025a 173-7376 Squeegee blade linatex front 1 28 inch and 32 inch Notes: Red blade
Posted By: cmm
10/13/2003 11:35:15 AM Source: Betco/Cindy
025b 189-0040 Squeegee blade front 28 inch and 32 inch
025c 173-3416 Squeegee blade front green buttons 28 inch and 32 inch
026 999-1007 Washer 3/8 x 1/16 flat nylon 2
027 189-0326 Bumper wheel 2
028 189-0355 Wheel (gray) (OBSOLETE) 2
029 189-0356 Squeegee band front 1
030 173-2795 Squeegee band rear 1
031 173-2796 Squeegee band rear short 1
032 189-0357 Wheel mount bracket 2
