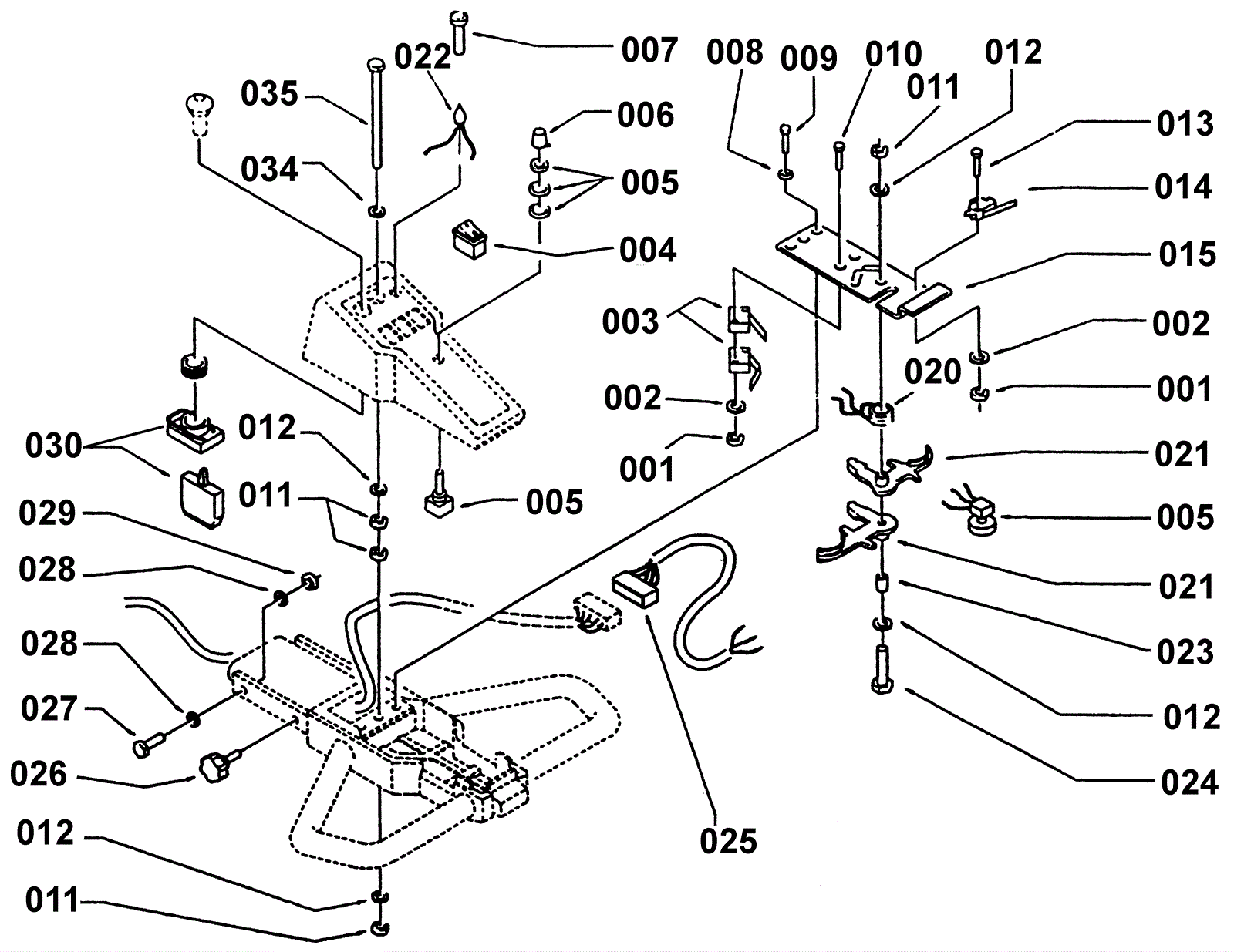

AS28 Electric Unit 3

#PartDescriptionPriceReqNotesAvailability
001 189-1425 Nut Call for price 4 usually ships 1-5 days
002 189-1426 Washer $2.18 4 usually ships 1-5 days
003 189-0258 Microswitch $18.94 2 usually ships 5-15 days
004 203-0698 Lighted switch $34.02 3 usually ships 5-15 days
005 189-0259 Potentiometer $135.16 2 usually ships 5-15 days
006 189-0260 Knob $65.26 1 usually ships 1-5 days
007 189-0102 Reflector $4.75 1 usually ships 1-5 days
008 189-1386 Washer $2.00 2 usually ships 1-5 days
009 189-1522 Screw Call for price 2 usually ships 1-5 days
010 189-1549 Screw $4.77 2 usually ships 1-5 days
011 189-1361 Nut $4.77 4 usually ships 1-5 days
012 189-1345 Washer d10 cham $4.75 4 usually ships 1-5 days
013 189-1427 Screw $4.77 2 usually ships 5-15 days
014 189-0261 Microswitch $41.02 1 usually ships 5-15 days
020 189-0262 Spring $40.62 1 usually ships 1-5 days
021 189-0930 Lever $17.11 2 usually ships 1-5 days
022 189-0263 Lamp $30.31 1 usually ships 1-5 days
023 189-0931 Bushing Call for price 1 usually ships 1-5 days
024 189-1354 Turned eye screw $1.94 1 usually ships 1-5 days
025 189-0932 Wiring Call for price 1 usually ships 1-5 days
026 189-0096 Handle $18.94 2 usually ships 1-5 days
027 189-1547 Screw Call for price 2 usually ships 1-5 days
028 189-1405 Washer $5.70 4 usually ships 1-5 days
030a 189-0264 Key switch complete $137.79 1 usually ships 5-15 days
030b 189-0037 Key $42.04 1 (included with 030a) usually ships 1-5 days
034 189-1347 Washer $4.64 1 usually ships 1-5 days
035 189-1550 Screw Call for price 1 usually ships 1-5 days
