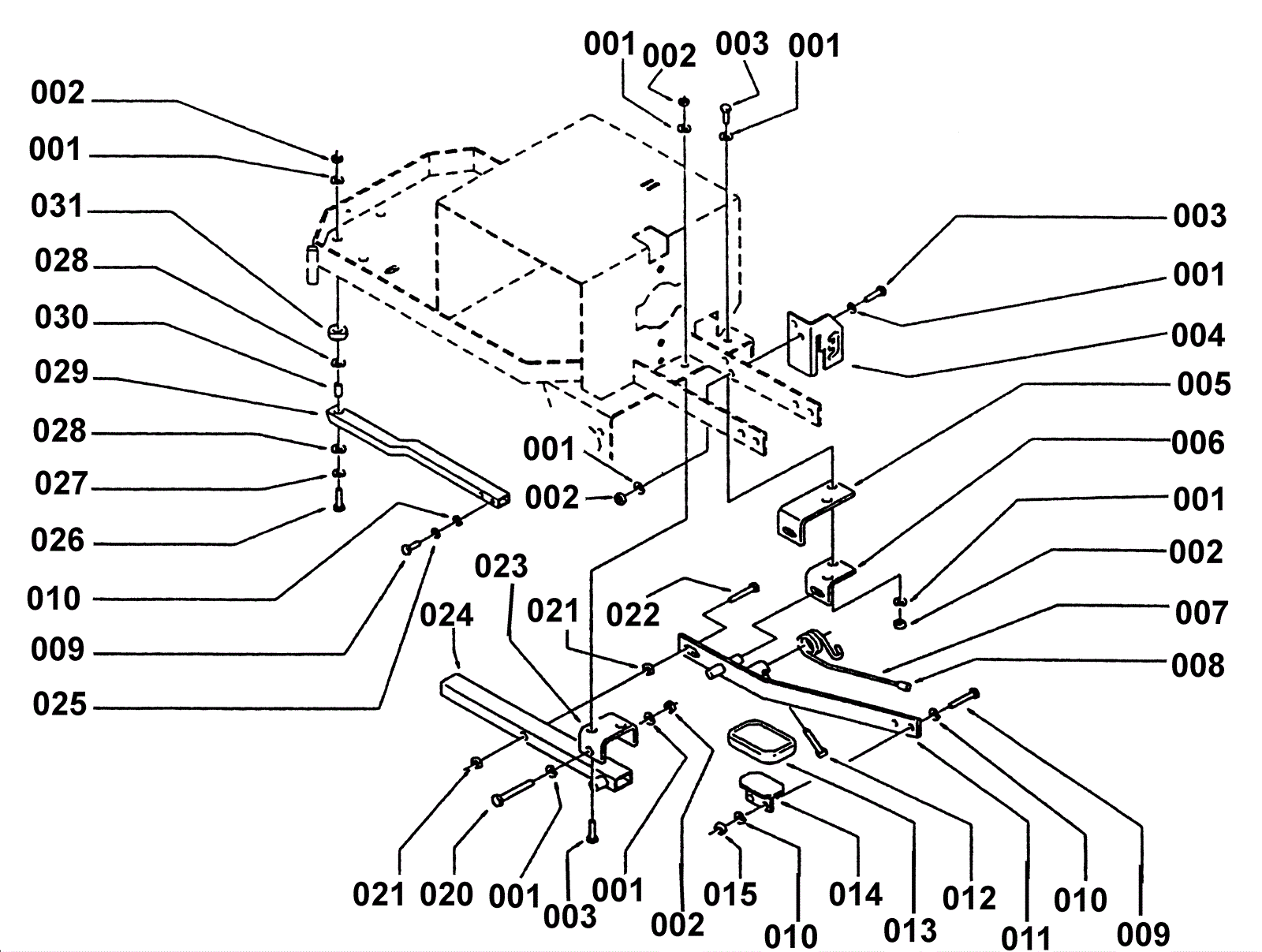

AS28 Head Lifting Unit

#PartDescriptionPriceReqNotesAvailability
001 189-1363 Washer $4.75 11 usually ships 1-5 days
003 189-1461 Screw Call for price 6 usually ships 1-5 days
004 189-0231 Selector $142.37 1 usually ships 1-5 days
005 189-0909 Half fork $36.77 1 usually ships 1-5 days
006 189-0910 Half fork $19.22 1 usually ships 1-5 days
007 189-0911 Spring Call for price 1 usually ships 1-5 days
008 189-0912 Knob Call for price 1 usually ships 1-5 days
009 189-1537 Screw $1.67 4 usually ships 1-5 days
010 189-1487 Washer $10.64 6 usually ships 5-15 days
011 189-0232 Lever $261.72 1 usually ships 1-5 days
012 189-1514 Screw $5.74 1 usually ships 1-5 days
013 189-0233 Rubber shim $34.10 1 usually ships 1-5 days
014 189-0913 Pedal $42.27 1 usually ships 1-5 days
015 189-1361 Nut $4.77 2 usually ships 1-5 days
020 189-1545 3/4 inch screw M8 $11.46 1 usually ships 1-5 days
022 250-1385 Screw M8 x 60mm $4.88 1 usually ships 1-5 days
023 189-0914 Fork Call for price 1 usually ships 1-5 days
024 189-0915 Lever Call for price 1 usually ships 1-5 days
025 189-1477 Washer cham $4.75 2 usually ships 5-15 days
026 189-1547 Screw Call for price 1 usually ships 1-5 days
027 189-1378 Washer $4.75 1 usually ships 1-5 days
028 189-1394 Washer D13 $5.74 2 usually ships 1-5 days
029 189-0916 Lever Call for price 1 usually ships 1-5 days
030 189-0234 Spacer $5.90 1 usually ships 1-5 days
031 189-0223 Rubber shim $7.63 1 usually ships 1-5 days
