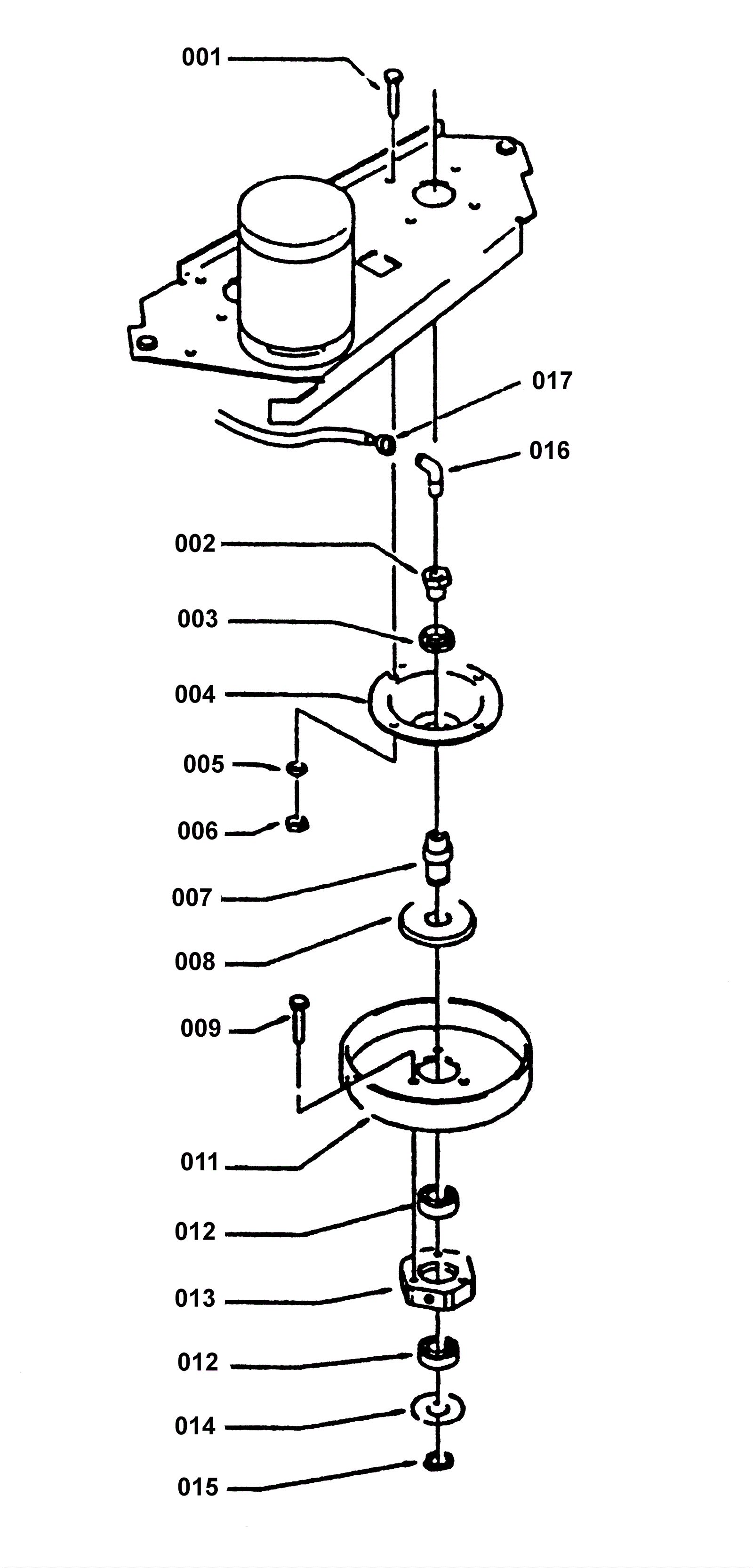

AS28 Head 71: Axle Pulley

#PartDescriptionPriceReqNotesAvailability
001 189-1367 Screw Call for price 10 usually ships 1-5 days
002 189-0205 Nipple $18.34 2 usually ships 10-12 days
003 189-1429 Nut $21.31 2 usually ships 10-12 days
004 189-0156 Flange $96.28 2 usually ships 10-12 days
005 189-1363 Washer $5.19 12 usually ships 1-5 days
006 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 8 ships same day
007 189-0206 Coupling thread $128.78 2 usually ships 1-5 days
008 189-0207 Guard $10.35 2 usually ships 1-5 days
009 189-1452 Screw M5-16 zinc plated $5.19 6 usually ships 1-5 days
011 189-0094 Pulley $117.19 2 usually ships 10-12 days
013 189-0208 Hexagon $204.52 2 usually ships 10-12 days
014 189-0209 Guard $21.19 2 usually ships 1-5 days
015 189-0093 Snap Ring $4.80 2 usually ships 10-12 days
016 189-0142 Union/connector $12.60 2 usually ships 10-12 days
017 189-0141 Clamp 10-16 inch $5.76 2 usually ships 1-5 days
