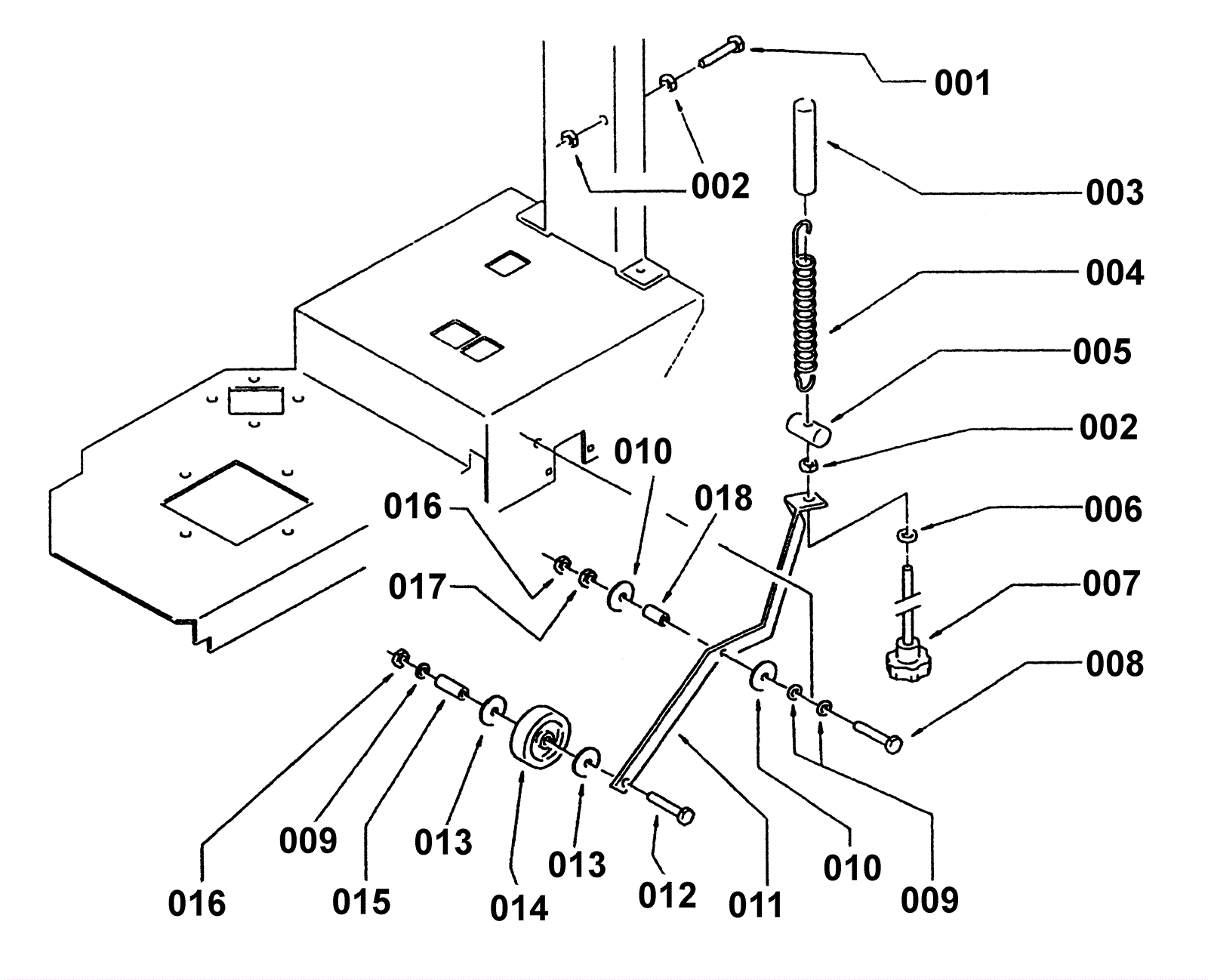

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-1390
|
Screw |
1 |
|
|
002 |
189-1489
|
Nut M6 |
3 |
|
|
003 |
189-0852
|
Sheath |
1 |
|
|
004 |
189-0166
|
Spring |
1 |
|
|
005 |
189-1515
|
Spring coupling |
1 |
|
|
006 |
189-1391
|
Washer D6 |
1 |
|
|
007 |
189-1516
|
Knob |
1 |
|
|
008 |
189-1344
|
Screw M8 |
1 |
|
|
009 |
189-0897
|
Washer D8 |
3 |
|
|
010 |
189-1517
|
Washer |
2 |
|
|
011 |
189-1518
|
Lever |
1 |
|
|
012 |
189-1370
|
Screw |
1 |
|
|
013 |
189-1520
|
Washer |
2 |
|
|
014 |
189-0167
|
Small wheel |
1 |
|
|
015 |
189-0853
|
Pin |
1 |
|
|
016 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
017 |
189-1492
|
Nut M8 |
1 |
|
|
018 |
189-0168
|
Bushing |
1 |
|
|
