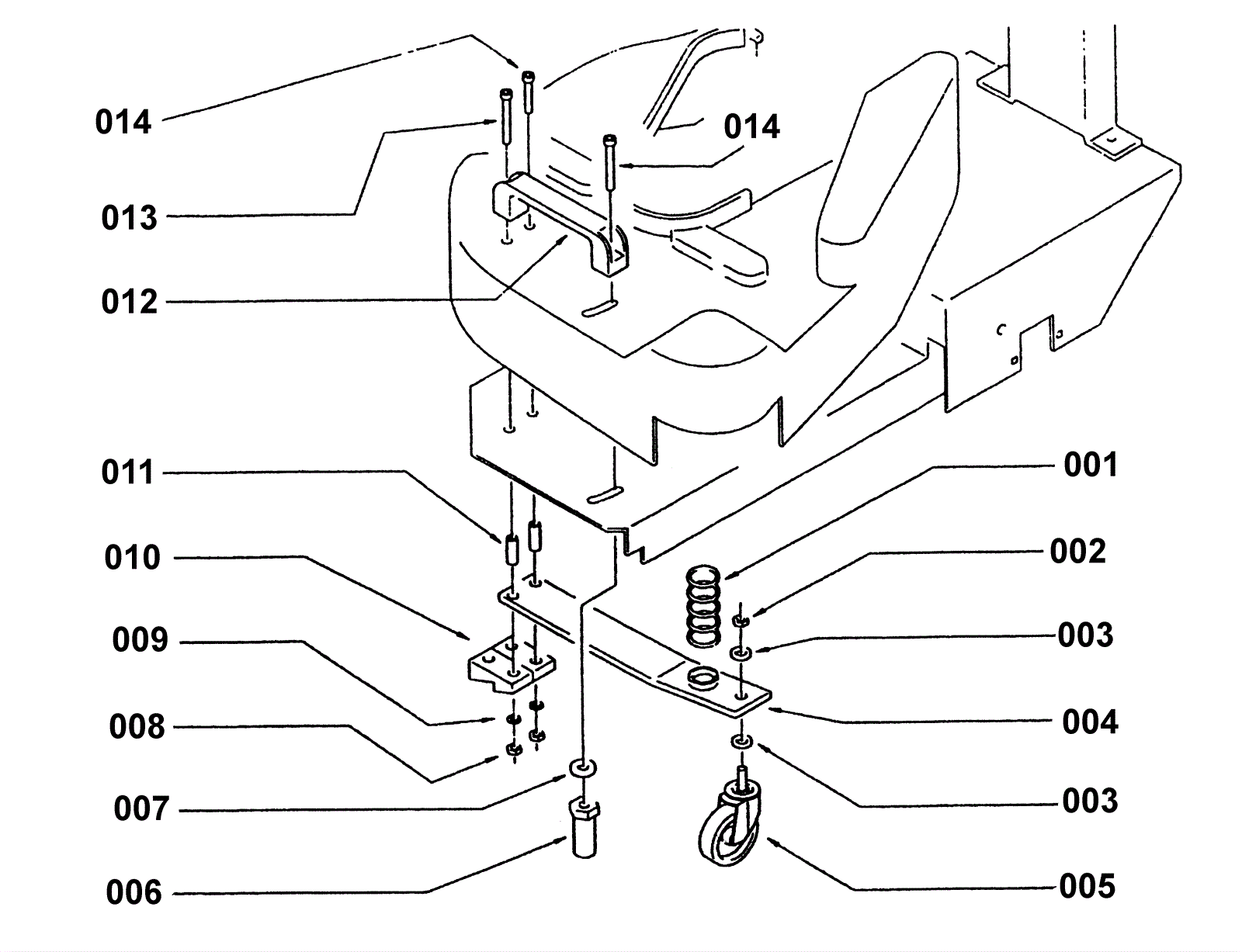

Small Wheel

#PartDescription ReqNotesAvailability
001 189-0159 Spring 1
002 189-1413 Nut M12 1
003 189-1414 Washer D12 2
004 189-0160 Lever 1
005 189-0161 Small wheel 1
006 189-0162 Bearing 1
007 189-1459 Washer 1
008 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
009 375-9615 Washer D. 8 x 24 inox 2
010 189-0163 Silent blok 2
011 189-0164 Bearing 2
012 189-0165 Handle 1
013 189-1513 Screw 2
014 189-1514 Screw 2
