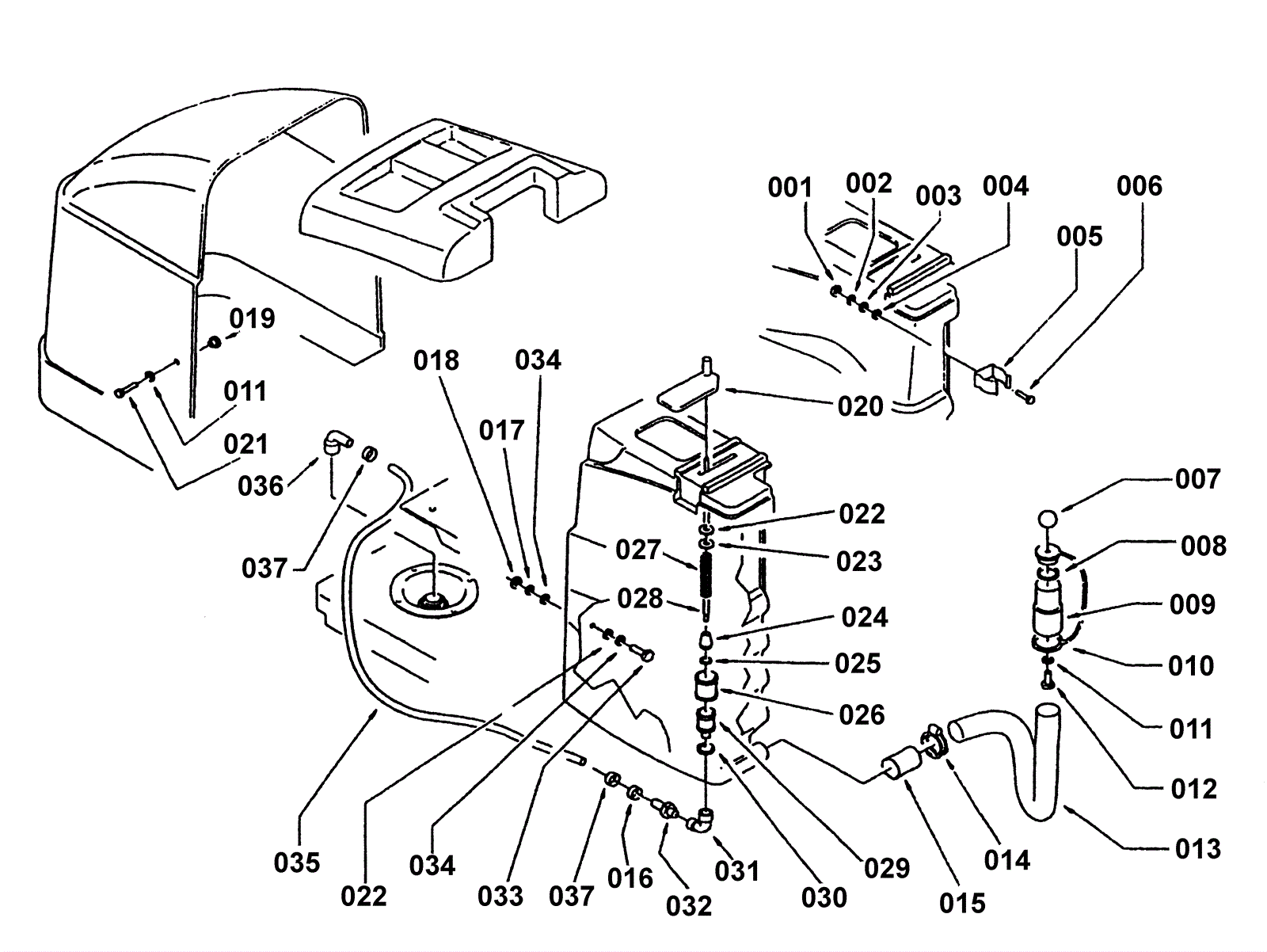

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-1468
|
Nut M5 |
2 |
|
|
002 |
189-1507
|
Washer (OBSOLETE) |
2 |
|
|
003 |
189-1353
|
Washer D5 |
2 |
|
|
004 |
189-0755
|
Gasket |
2 |
|
|
005 |
189-0115
|
Duct lock |
1 |
|
|
006 |
375-9483
|
Screw M5 x 16 inox |
2 |
|
|
007 |
189-0119
|
Knob |
1 |
|
|
008 |
189-0120
|
Gasket |
1 |
|
|
009 |
189-0118
|
Sleeve |
1 |
|
|
010 |
189-0121
|
Cap |
1 |
|
|
011 |
189-1487
|
Washer |
3 |
|
|
012 |
189-1445
|
Turned eye screw |
1 |
|
|
013 |
203-0501
|
Hose |
1 |
Solution drain hose |
|
014 |
189-0123
|
Clamp 35-40 inch |
1 |
|
|
015 |
189-0122
|
Sheath |
1 |
|
|
016 |
189-0544
|
Clamp |
1 |
|
|
017 |
189-1511
|
Washer |
1 |
|
|
018 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
019 |
189-0143
|
Bushing |
2 |
|
|
020 |
189-0847
|
Lever |
1 |
|
|
021 |
189-1503
|
Screw |
2 |
|
|
022 |
189-1498
|
Washer |
2 |
|
|
023 |
189-1391
|
Washer D6 |
1 |
|
|
024 |
189-0132
|
Shutter |
1 |
|
|
025 |
189-0133
|
Gasket |
1 |
|
|
026 |
189-0134
|
Filter |
1 |
|
|
027 |
189-0135
|
Spring |
1 |
|
|
028 |
189-0136
|
Tie rod |
1 |
|
|
029 |
189-0137
|
Body |
1 |
|
|
030 |
189-0138
|
Gasket |
1 |
|
|
031 |
189-0139
|
Union/connector |
1 |
|
|
032 |
189-0140
|
Union/connector |
1 |
|
|
033 |
189-1479
|
Screw 8 x 25 inch |
1 |
|
|
034 |
375-9615
|
Washer D. 8 x 24 inox |
1 |
|
|
035 |
189-0848
|
Hose |
1 |
|
|
036 |
189-0142
|
Union/connector |
1 |
|
|
037 |
189-0141
|
Clamp 10-16 inch |
2 |
|
|
