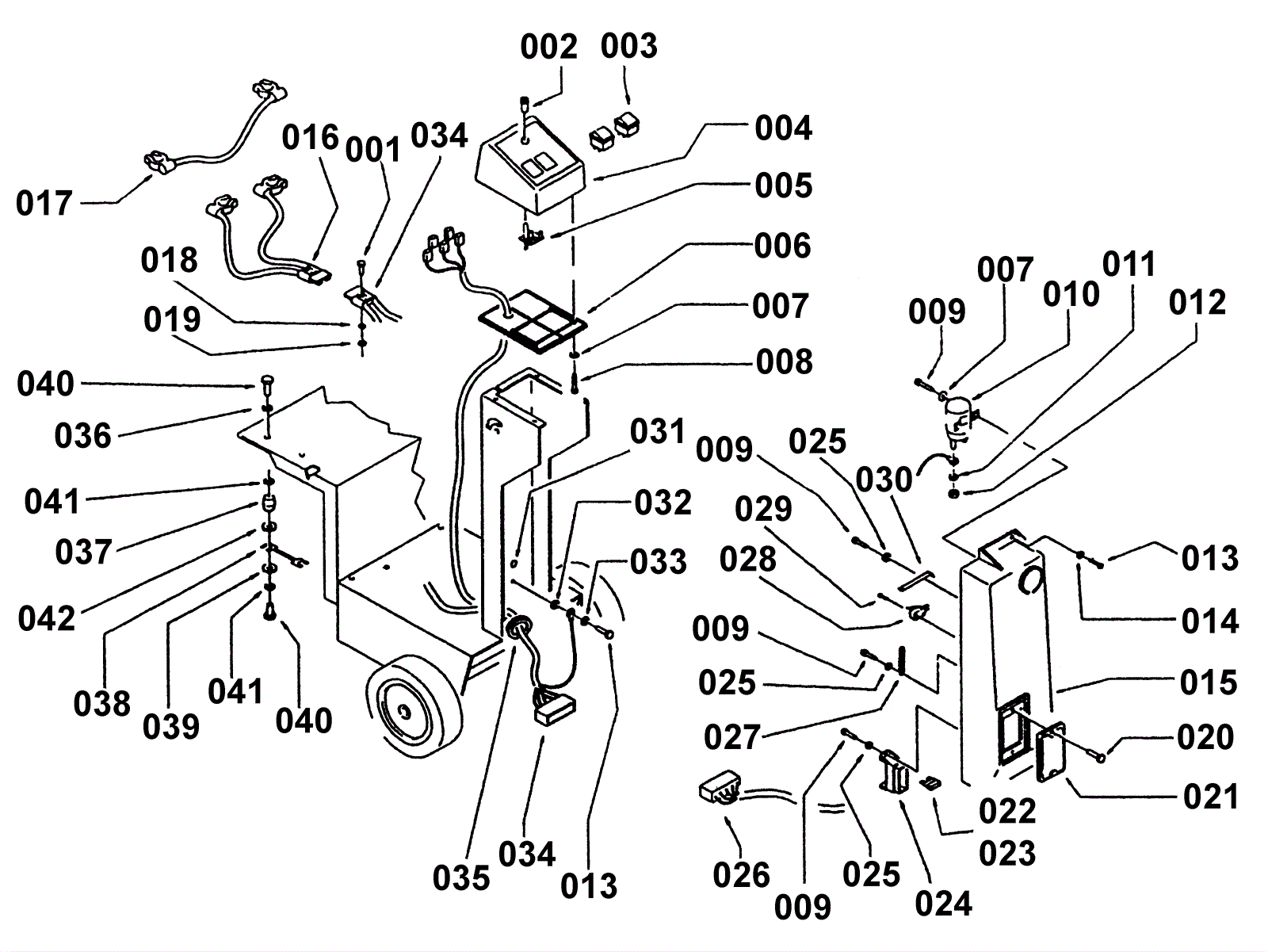

AS20 Electric Unit

#PartDescriptionPriceReqNotesAvailability
002 189-0102 Reflector $5.19 1 usually ships 1-5 days
003 203-0698 Lighted switch $37.14 2 usually ships 15-24 days
004 189-0104 Control panel $63.07 1 usually ships 1-5 days
005 189-0832 Circuit board $104.58 1 usually ships 15-24 days
006 189-0833 Control panel base $25.11 1 usually ships 1-5 days
007 203-0145 Washer 4-16 inch $2.99 4 usually ships 15-24 days
008 189-1501 Screw Call for price 4 usually ships 1-5 days
009 189-1502 Screw (OBSOLETE) Call for price 4 usually ships 1-5 days
010 189-0105 Relay $214.81 1 usually ships 15-24 days
011 189-1369 Washer cham $5.19 2 usually ships 1-5 days
012 189-1379 Nut M8 $30.60 2 usually ships 1-5 days
013 189-1376 Screw 4 x 10 inch $4.20 3 usually ships 15-24 days
014 189-1375 Washer D4 $3.10 2 usually ships 15-24 days
015 189-0106 Cover $53.02 1 usually ships 1-5 days
016 189-0114 Wiring $321.29 1 usually ships 1-5 days
017 189-0113 Battery jumper cable $90.08 1 usually ships 15-24 days
018 189-1426 Washer $2.18 2 usually ships 1-5 days
019 189-1425 Nut Call for price 2 usually ships 1-5 days
020 189-1503 Screw $5.50 2 usually ships 1-5 days
021 189-0834 Lid $18.67 1 usually ships 15-24 days
022 189-0107 5 amp fuse $25.42 2 usually ships 1-5 days
023 189-0108 Fuse $5.50 1 usually ships 1-5 days
024 189-0659 Fuse holders $59.55 1 usually ships 1-5 days
025 189-1504 Washer $14.22 2 usually ships 1-5 days
026 189-0835 Wiring $51.12 1 usually ships 1-5 days
027 189-0109 Spring $10.20 1 usually ships 1-5 days
028 189-0110 Microswitch $40.98 1 usually ships 1-5 days
029 189-1505 Screw Call for price 2 usually ships 1-5 days
030 189-0836 Foil Call for price 1 usually ships 1-5 days
031 189-0837 Label (OBSOLETE) Call for price 1 usually ships 1-5 days
032 189-1433 Washer $5.06 3 usually ships 1-5 days
033 203-0235 Washer $2.99 1 usually ships 15-24 days
034 189-0111 Wiring $566.74 1 usually ships 1-5 days
035 189-0838 Fairlead Call for price 1 usually ships 1-5 days
036 189-1345 Washer d10 cham $5.19 2 usually ships 1-5 days
037 189-0839 Fuse $33.87 2 usually ships 1-5 days
038 189-0456 75amp fuse $14.37 1 usually ships 1-5 days
039 189-1356 Washer 6-18 inch $1.03 4 usually ships 1-5 days
040 189-1447 Screw Call for price 4 usually ships 1-5 days
041 189-1347 Washer $5.06 4 usually ships 1-5 days
