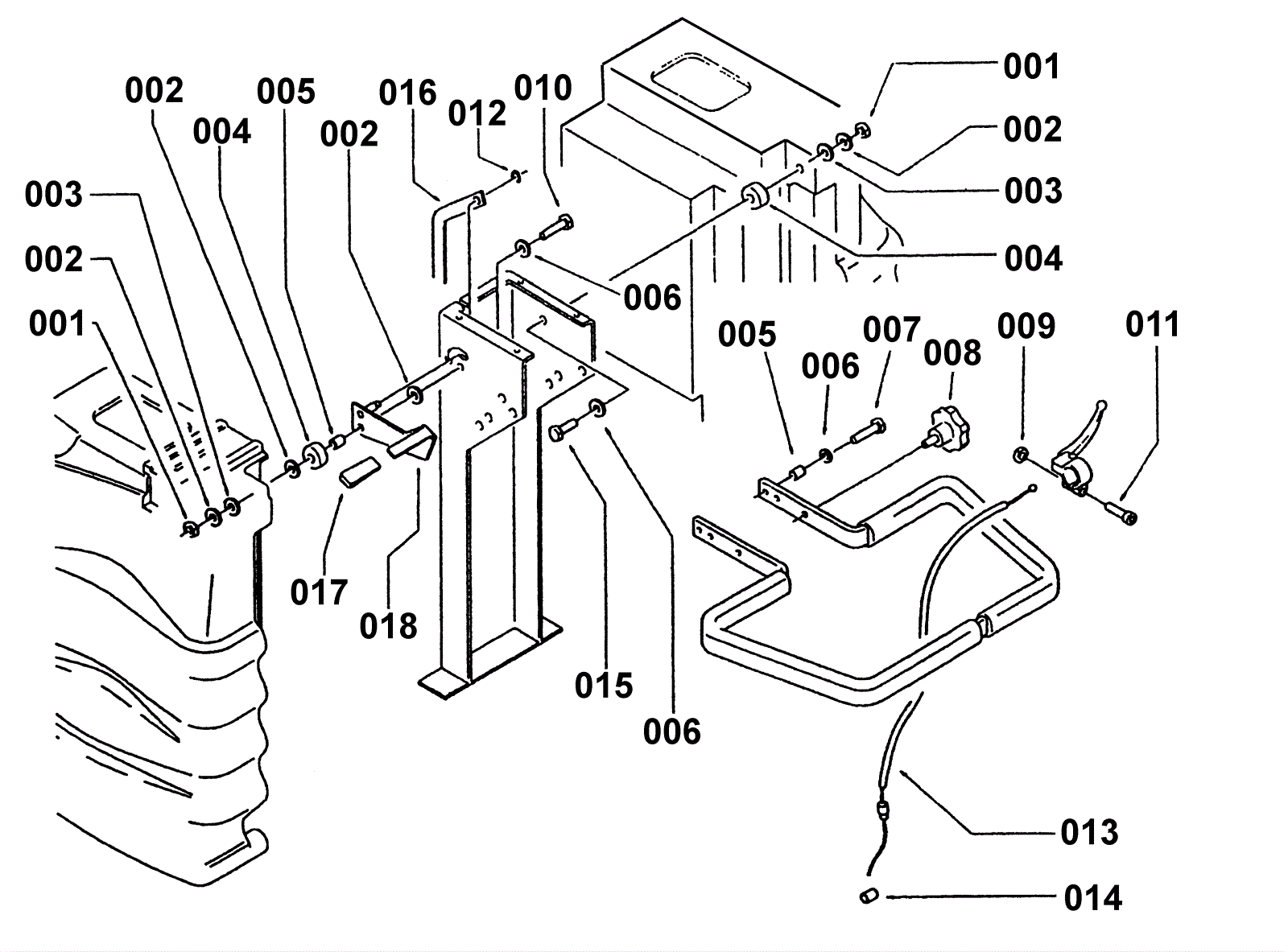

Handgrip Unit

#PartDescription ReqNotesAvailability
001 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
002 375-9615 Washer D. 8 x 24 inox 4
003 189-1498 Washer 2
004 189-0837 Label (OBSOLETE) 1
005 189-0095 Bushing 3
006 189-0897 Washer D8 4
007 189-1499 Screw 2
008 189-0096 Handle 2
009 189-1469 Nut 1
010 189-1373 Screw 8 x 45 inch 1
011 189-1500 Screw 1
012 203-0524 Nut M6 lock 1
013 189-0097 Sheath 1
014 189-0098 Clamp 1
015 189-1404 Screw M8 1
016 189-0101 Tie-rod 1
017 203-0522 Handle 1
018 189-0099 Lever 1
