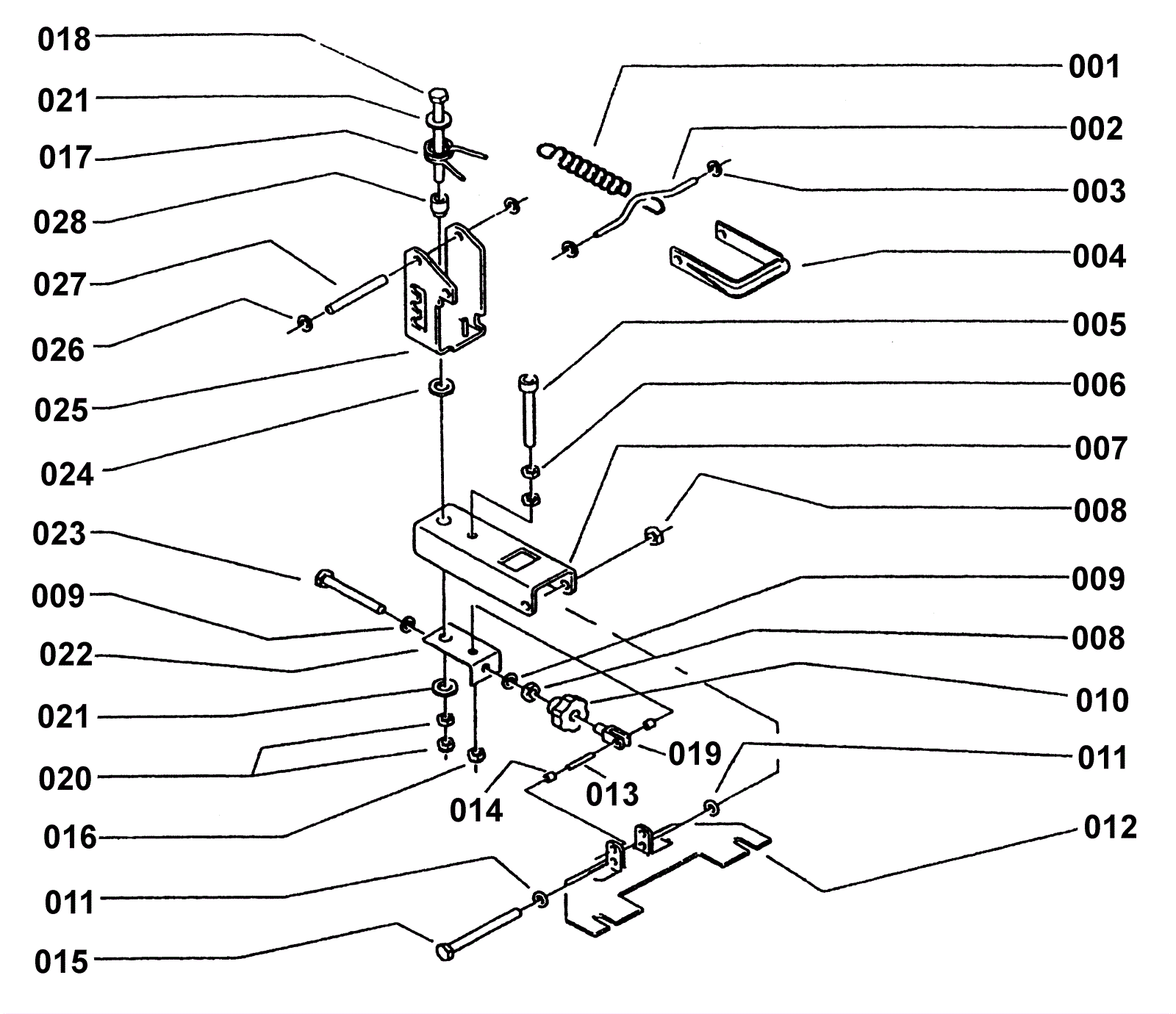

Squeegee Support

#PartDescription ReqNotesAvailability
001 203-0584 Squeegee spring 1
002 189-0068 Hooking 1
003 189-0828 Ring 2
004 189-0069 Handle 1
005 189-1470 Screw 1
006 189-1489 Nut M6 2
007 189-0070 Arm 1
008 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
009 189-0897 Washer D8 2
010 189-0071 Handle 1
011 375-9658 Washer nylon 2
012 189-0072 Plate 1
013 189-0073 Pin 1
014 189-0074 Spacer 1
015 189-1491 Screw 1
016 203-0524 Nut M6 lock 1
017 203-0584 Squeegee spring 1
018 189-1373 Screw 8 x 45 inch 1
019 189-0080 Fork 1
020 189-1492 Nut M8 2
021 375-9615 Washer D. 8 x 24 inox 2
022 189-0075 Support 1
023 189-1370 Screw 1
024 189-1493 Squeegee washer 1
025 189-0076 Bracket 1
026 203-0524 Nut M6 lock 2
027 189-0077 Pin 1
028 189-0078 Bush 1
