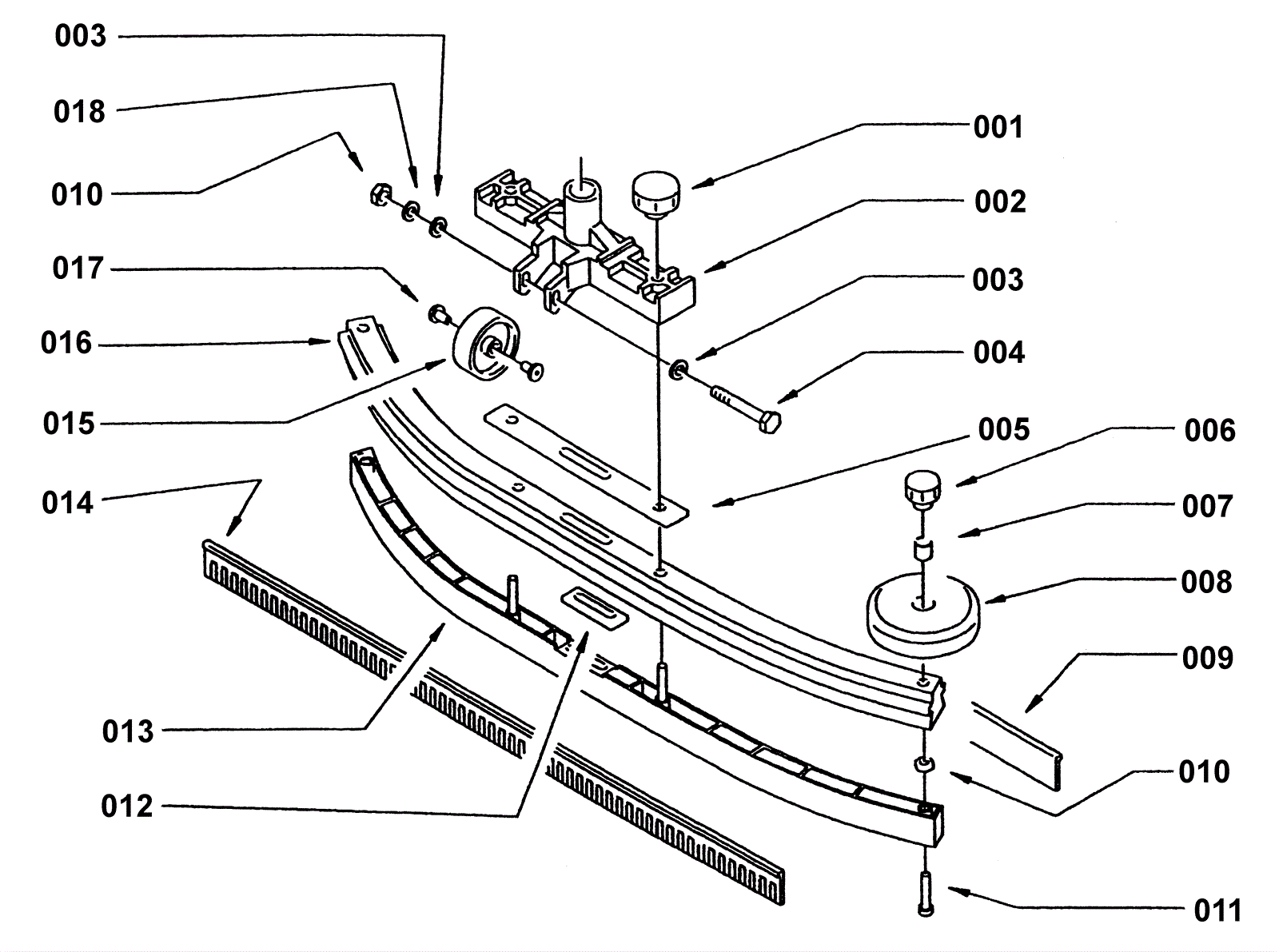

Squeegee Assembly

#PartDescription ReqNotesAvailability
001 189-0055 Handle 2
002 189-0056 Suction point 1
003 189-1487 Washer 2
004 189-1488 Screw M6 1
005 189-0057 Gasket 1
006 189-0058 Handle 2
007 189-0059 Spacer 2
008 189-0060 Wheel 2
009 189-0061 Front squeegee blade 33 inch 1
010 189-1489 Nut M6 3
011 189-1490 Battery cable screw 2
012 189-0062 Gasket 1
013 189-0063 Insert 1
014 189-0064 Rear squeegee blade 33 inch 1
015 189-0051 Small wheel 1
016 189-0827 Extended Frame 1
017 189-0066 Bushing 2
018 189-1477 Washer cham 1
