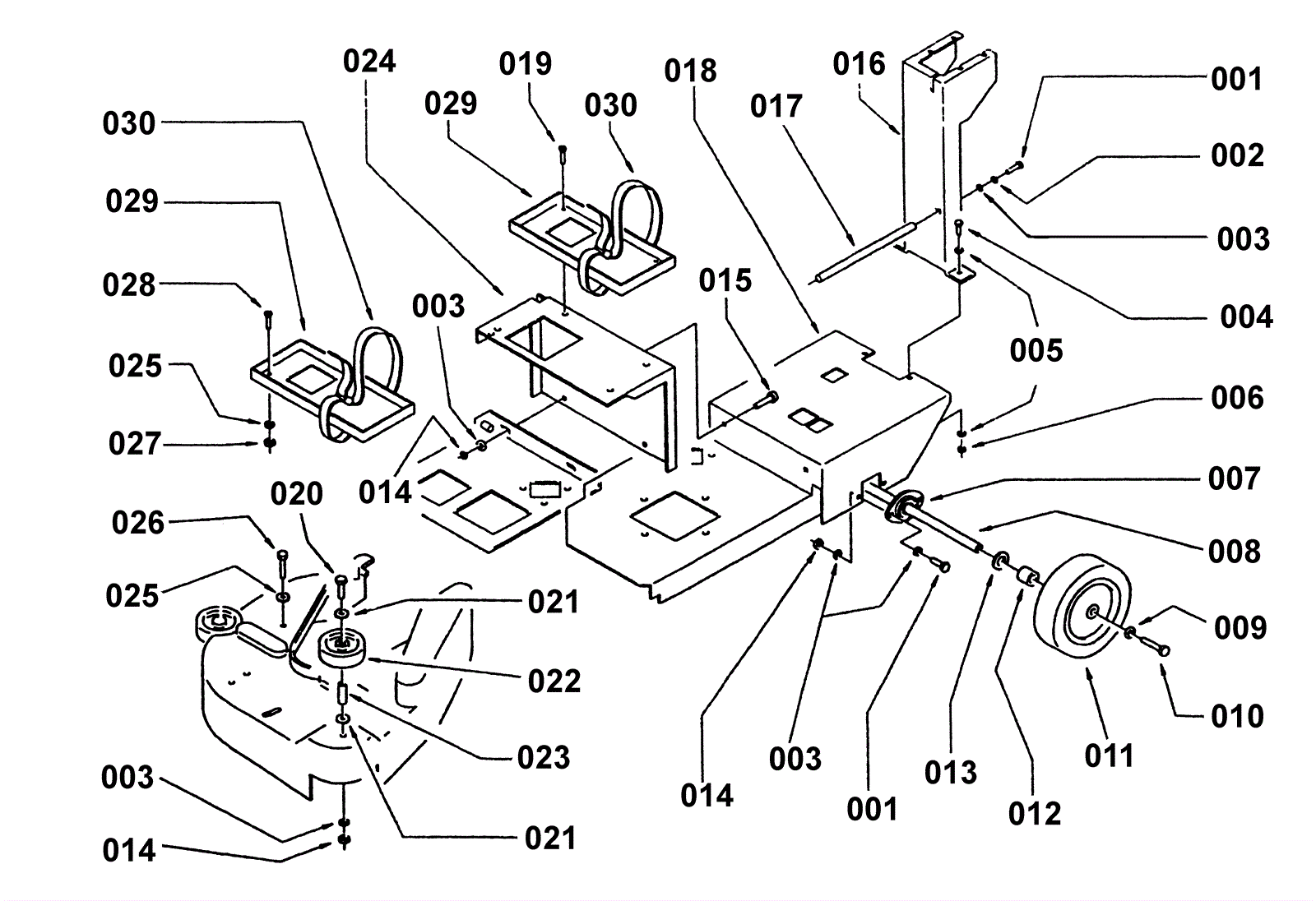

Frame

#PartDescription ReqNotesAvailability
001 189-1390 Screw 6
002 189-1477 Washer cham 2
003 189-1487 Washer 14
004 189-1479 Screw 8 x 25 inch 2
005 189-1363 Washer 4
006 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
007 203-0715 Bearing 2
008 189-0048 Axle 1
009 375-9615 Washer D. 8 x 24 inox 2
011 189-0049 Small wheel 2
012 189-0050 Bearing 2
013 189-1481 Washer 2
014 203-0524 Nut M6 lock 8
015 189-1482 Screw 2
016 189-0826 Upright pillar 1
017 189-0825 Bearing 1
018 189-0824 Basement 1
019 189-1486 Screw 2
020 189-1483 Screw 6 x 40 inch 2
021 189-1391 Washer D6 4
022 189-0051 Small wheel 2
023 189-0052 Bearing 2
024 189-0823 Support 1
025 189-1462 Washer 5 x 14 inch 3
026 189-1352 Screw 2
027 189-1484 Nut M5 1
028 189-1485 Screw 1
029 189-0053 Battery bearing surface 2
030 189-0054 Belt 2
