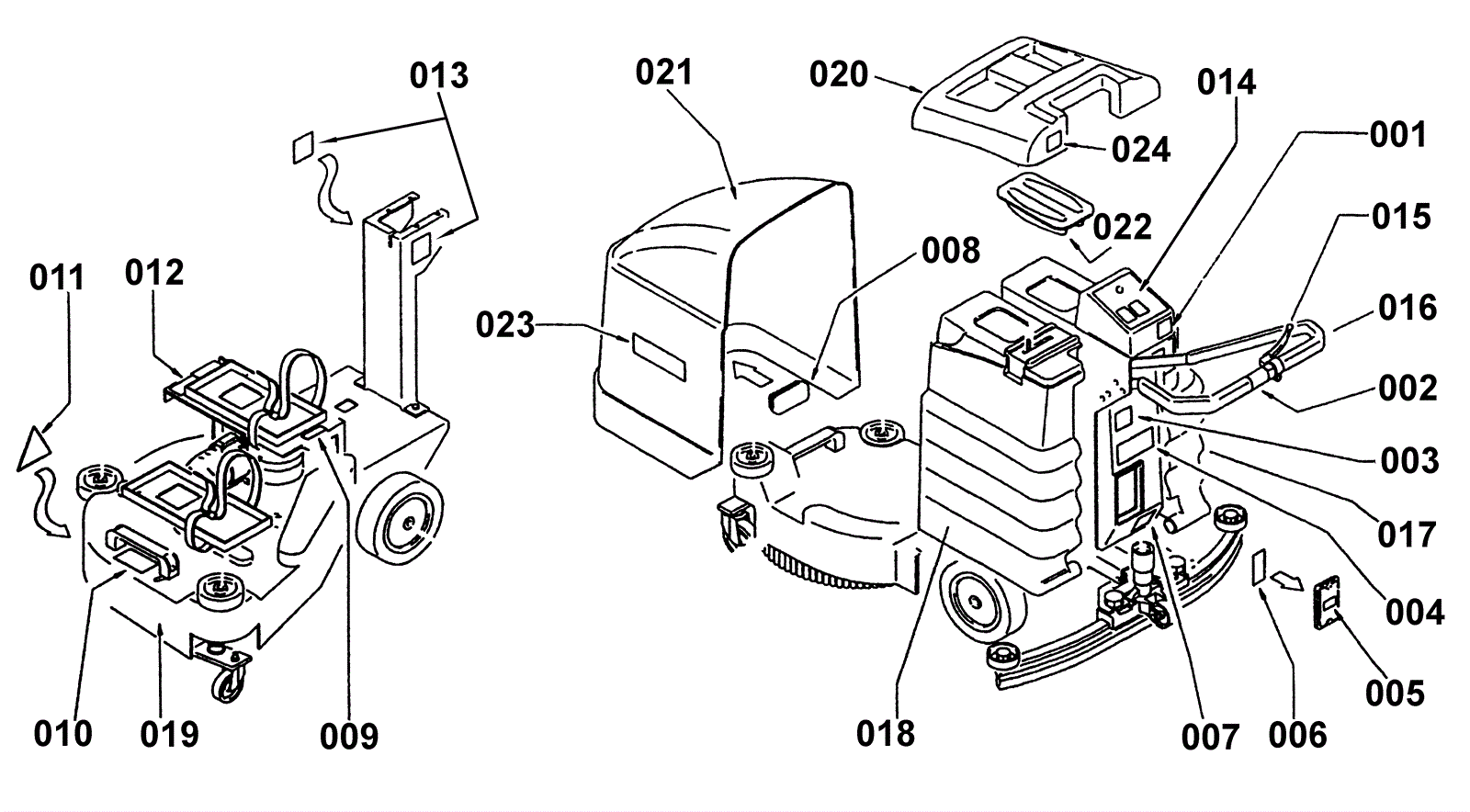

External Parts

#PartDescription ReqNotesAvailability
001 189-0507 Adesive label (OBSOLETE) 1
002 189-0809 Label 1
003 189-0506 Adesive label 1
004 189-0505 Label 1
005 189-0498 Label 1
006 189-0810 Label 1
007 189-0811 Label 1
008 189-0822 Cap 1
009 189-0812 Label 1
010 189-0041 Label 1
011 189-0042 Adhesive label 1
012 189-0813 Label 1
013 189-0814 Adesive label 2
014 189-0815 Label 1
015 189-0043 Lever 1
016 189-0816 Handgrip 1
017 189-0817 Tank 1
018 189-0818 Tank 1
019 189-0819 Brush holder 1
020 189-0022 Tank cover 1
021 189-0045 Hood 1
022 189-0026 Lid 1
023 189-0820 Label 2
024 189-0821 Label 1
