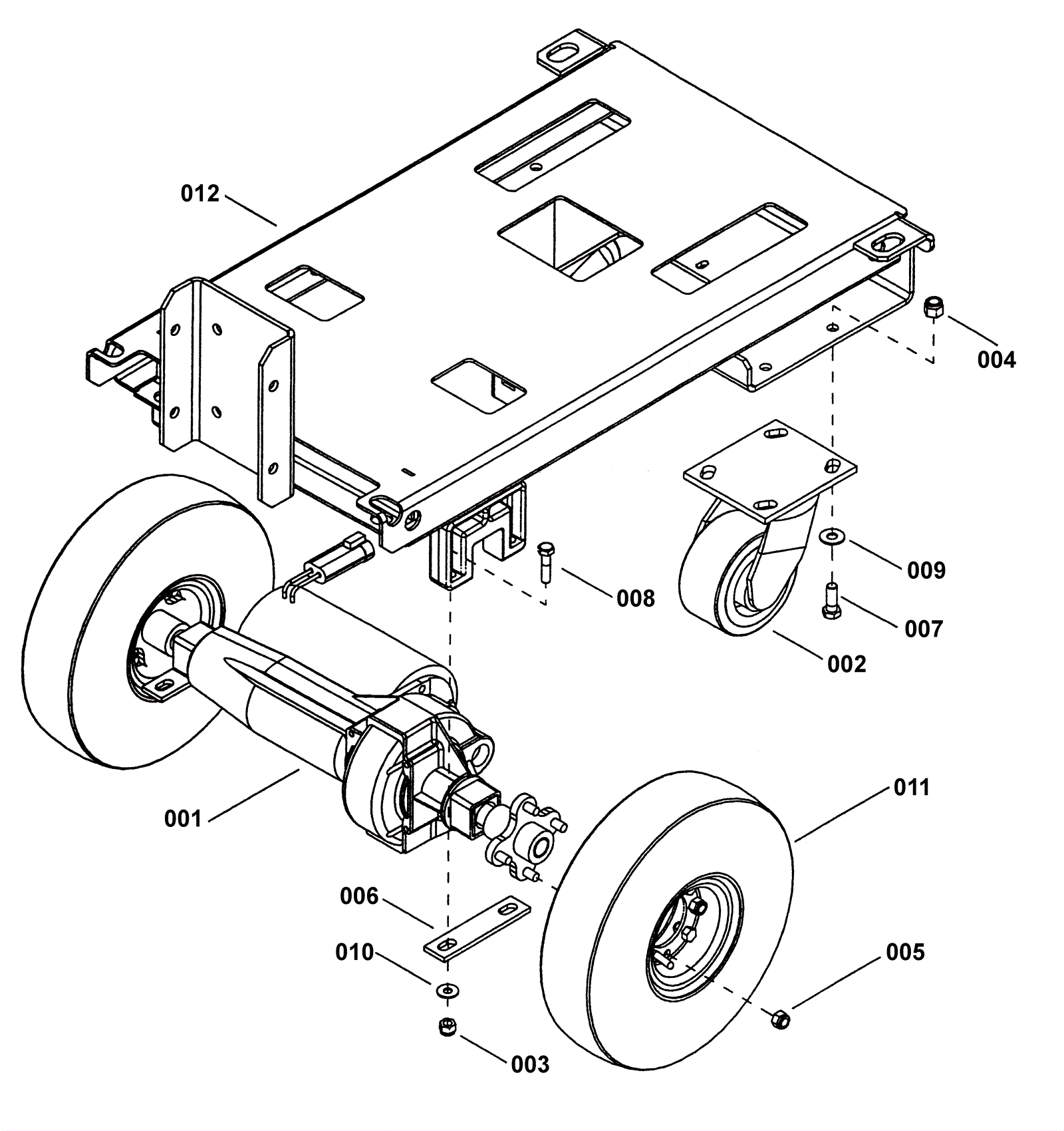

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-0347
|
24V drive motor axle |
1 |
|
|
002 |
991-2008
|
4 inch caster wheel with bearings (red) |
2 |
|
|
004 |
173-3869
|
Nut 3/8-16 hex nylock (OBSOLETE) |
8 |
|
|
006 |
173-1694
|
Drive axle plate |
2 |
|
|
007 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
8 |
|
|
008 |
999-0162
|
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
4 |
|
|
009 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
8 |
|
|
010 |
173-2483
|
Washer 1/4ID x 3/4OD plated |
4 |
|
|
011a |
189-0348
|
10 inch pnumatic non-marking wheel |
2 |
|
|
011b |
173-1697
|
10 inch black wheel assembly |
|
|
|
011c |
173-1699
|
10 inch solid wheel |
|
|
|
011d |
189-0349
|
10 inch non-marking foam filled wheel assembly |
|
|
|
011e |
173-1701
|
10 inch knobby wheel assembly |
|
|
|
012 |
173-1702
|
Weldment frame (OBSOLETE) |
1 |
|
|
N/S |
173-1696
|
10 inch tire tube |
|
|
|
