| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-2634
|
Worm gear clamp |
1 |
|
|
002 |
189-0021
|
Hex drive hub (OBSOLETE) |
2 |
|
|
004 |
173-1570
|
Nylon braided hose 3/8 x 7 inch |
1 |
|
|
005 |
173-1571
|
Nylon hose 3/8 x 2 inch |
1 |
|
|
007 |
189-0323
|
Square keyway |
2 |
|
|
008 |
173-1574
|
24V 1HP brush motor assembly |
2 |
|
|
009 |
999-0151
|
Nut 8-32 nylon insert lock zinc plated |
4 |
|
|
011 |
173-3869
|
Nut 3/8-16 hex nylock (OBSOLETE) |
1 |
|
|
012 |
999-0547
|
Bolt 5/16-18 x 1/2 hex head stainless steel |
4 |
|
|
013 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
016 |
189-3075
|
Shroud-32 inch |
1 |
|
|
017 |
173-1577
|
Tree clip |
4 |
|
|
018 |
173-3922
|
Sealed bulkhead nut |
4 |
|
|
019 |
173-1578
|
Brush release cover |
2 |
|
|
020 |
173-3660
|
Motor guard |
4 |
|
|
021 |
173-1579
|
anti slip pad |
1 |
|
|
022 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
023 |
173-3912
|
Washer .344 x .066 flat head (OBSOLETE) |
2 |
|
|
024 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
8 |
|
|
025 |
189-0326
|
Bumper wheel |
1 |
|
|
026 |
N/A
|
Not available |
1 |

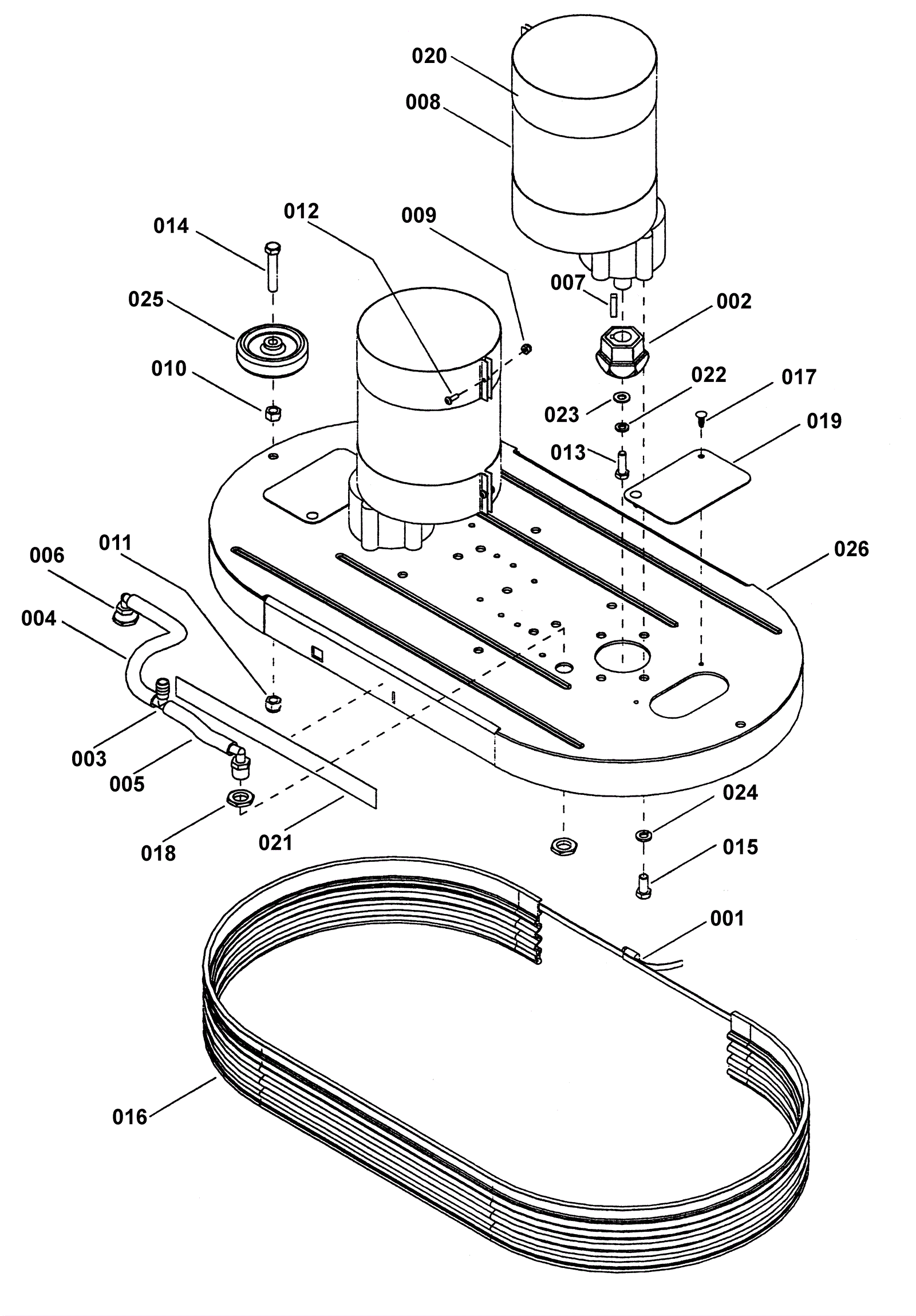

(Scrub deck) |
|
