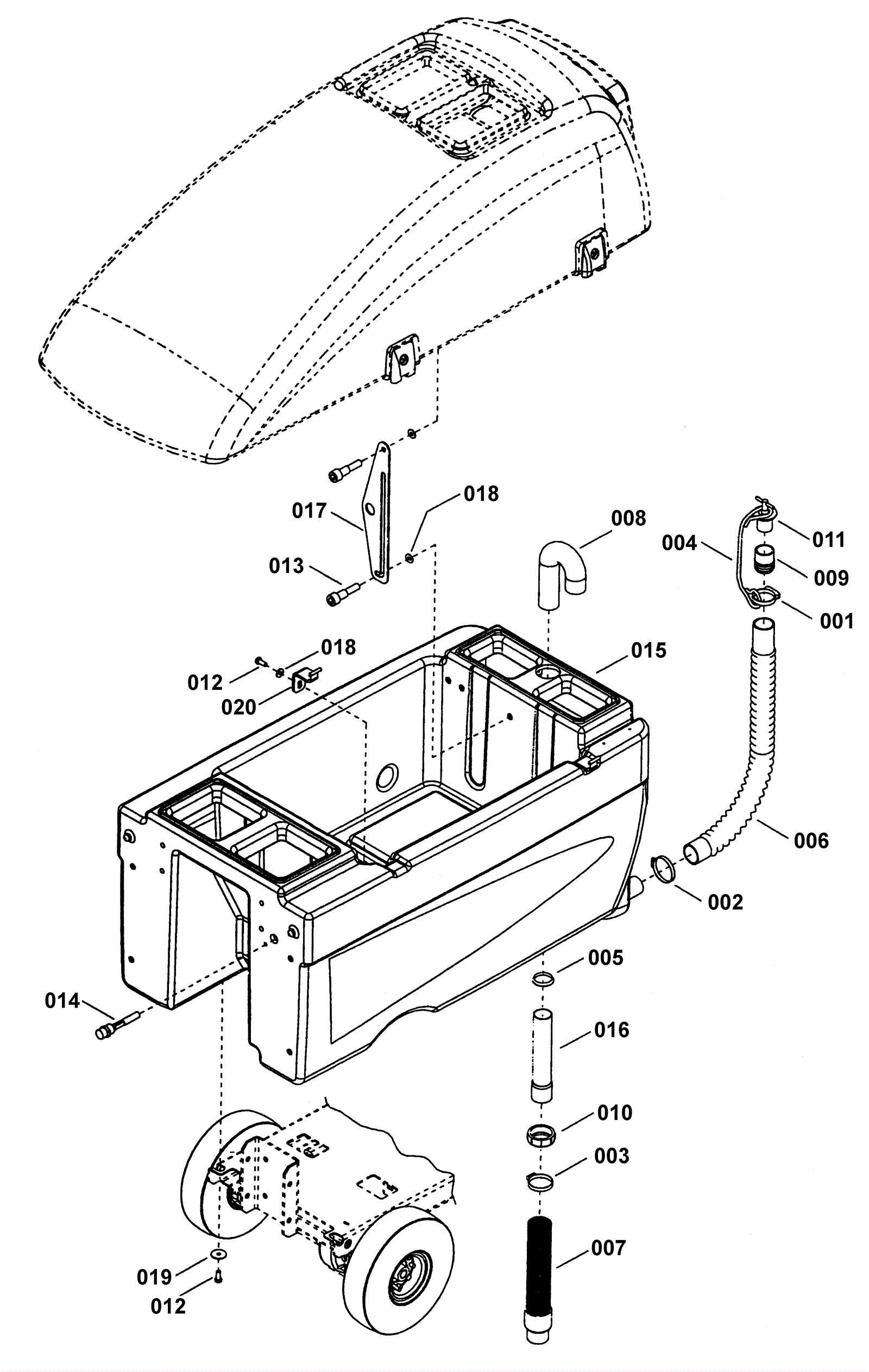

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-0055
|
Handle |
1 |
|
|
002 |
189-4108
|
Worm gear clamp |
1 |
|
|
003 |
189-0329
|
Hose clamp |
1 |
|
|
004 |
189-4123
|
Drain plug tether |
1 |
|
|
005 |
173-1542
|
1 1/2 compression gasket |
1 |
|
|
006 |
173-1216
|
Drain hose 1 1/2 x 24 inch |
1 |
|
|
007 |
173-2798
|
Vacuum hose assembly |
1 |
|
|
008 |
189-0330
|
P-trap hose |
1 |
|
|
009 |
189-4130
|
1/2 inch hosebarb |
1 |
|
|
010 |
273-6836
|
Slip joint nut |
1 |
|
|
011 |
173-1213
|
Drain plug |
1 |
|
|
012 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
6 |
|
|
013 |
173-1545
|
Shoulder bolt |
2 |
|
|
014 |
273-1080
|
Float switch |
1 |
|
|
015 |
189-0332
|
Recovery tank |
1 |
|
|
016 |
173-1548
|
1.5 inch x 8 inch PVC tube (OBSOLETE) |
1 |
|
|
017 |
173-1549
|
Recovery tank support plate |
1 |
|
|
019 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
020 |
189-0333
|
Weldment hinge |
2 |
|
|
