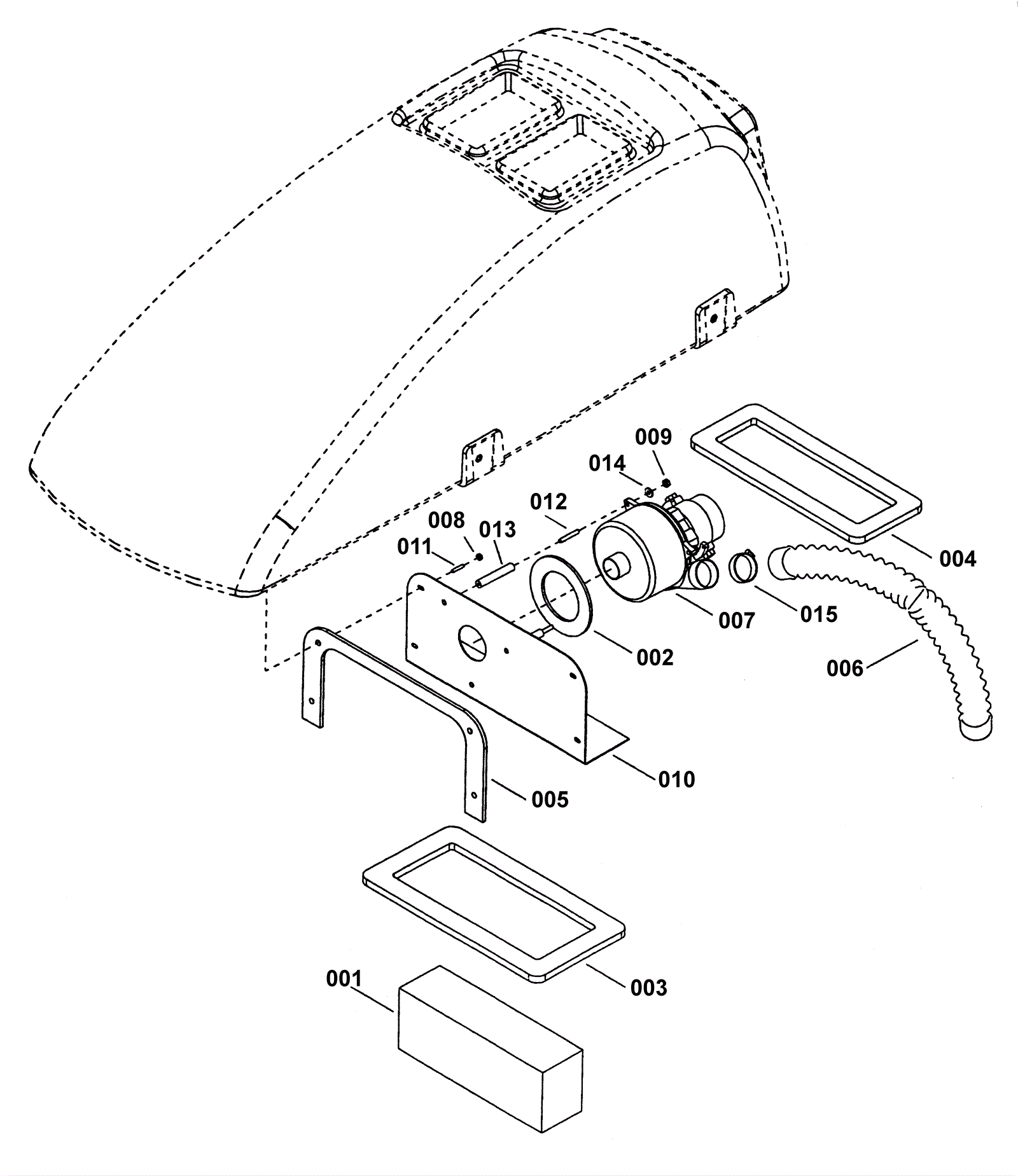

Vacuum Assembly

#PartDescription ReqNotesAvailability
001 189-0334 Vacuum filter 1
002 189-0976 Vacuum motor gasket 1
003 189-0020 Gasket 8.50 x 16.40 x .50T (OBSOLETE) 1
004 189-0019 Gasket 6.30 x 16.1C .50T (OBSOLETE) 1
005 189-0335 Vacuum motor gasket 1
006 173-1675 Vacuum exhaust hose 1
007a 189-0336 24VDC 3 stage vacuum motor assembly 1
007b 991-1230 24V 3 stage vacuum motor tangential with snout 1
008 173-2472 Nut 10-32 with star washer 4
009 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 3
010 173-1673 Vacuum mount plate 1
011 173-3946 Screw 10-32 x 1 set stainless steel 4
012 173-3947 Screw 1/4-20 x 1 3/4 set socket cup point 3
013 173-1674 Spacer 3
014 999-0123 Washer 1/4 SAE flat zinc plated 3
015 189-4108 Worm gear clamp 1
N/S 173-1672 Vacuum motor brush set
