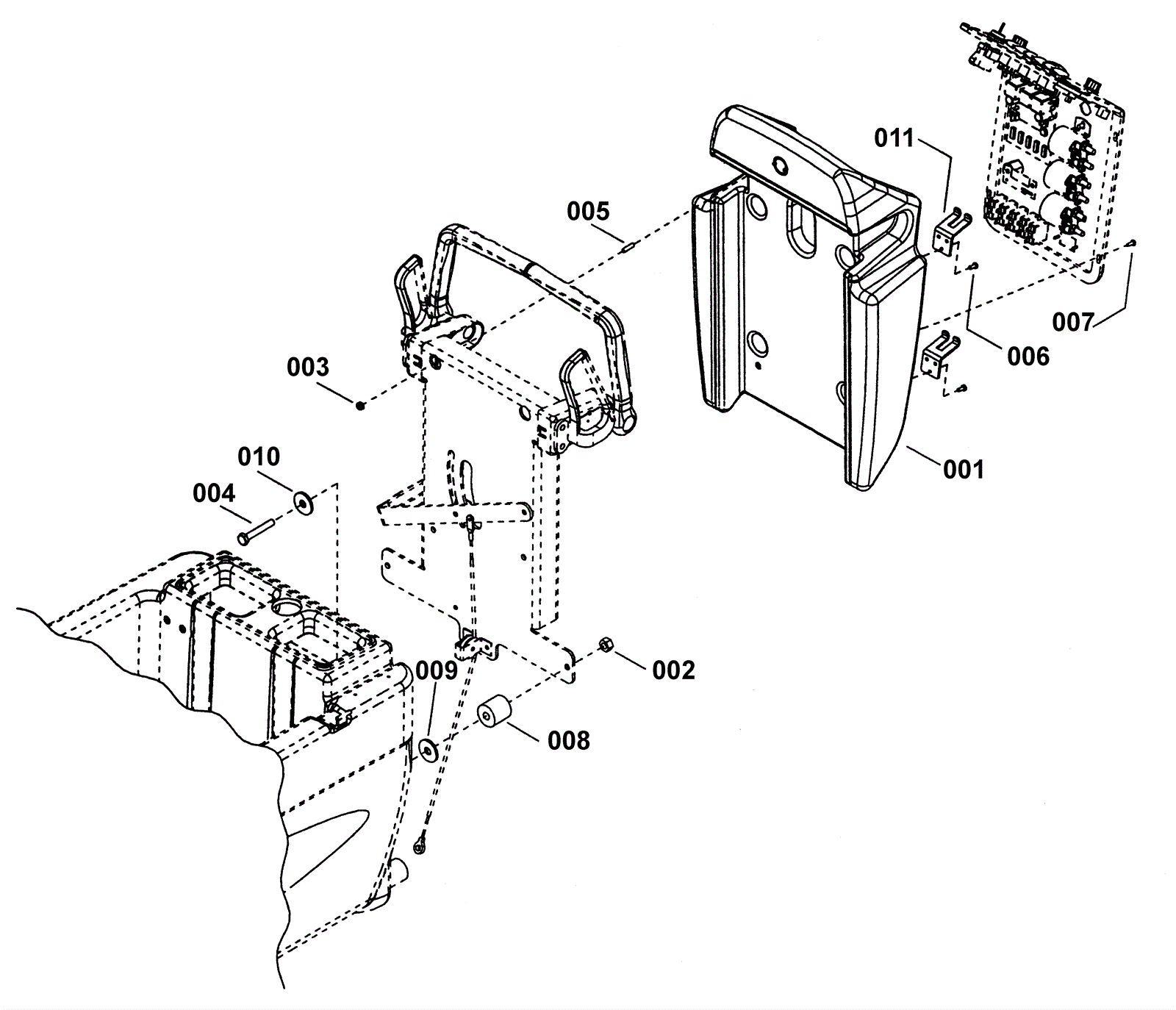

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-0948
|
Rear console |
1 |
|
|
002 |
173-3869
|
Nut 3/8-16 hex nylock (OBSOLETE) |
4 |
|
|
003 |
999-0595
|
Nut 1/4-20 flange lock serrated zinc plated |
4 |
|
|
004 |
999-0550
|
Bolt 3/8-16 x 2 hex head stainless steel |
4 |
|
|
005 |
189-1558
|
Screw 1/4-20 x 1 1/4 left set |
4 |
|
|
006 |
999-1940
|
Screw #10-16 x 1/2 pan head phillips type B stainless steel |
6 |
|
|
007 |
999-0371
|
Screw 10-32 x 1/2 pan head phillips zinc plated |
6 |
|
|
008 |
189-0949
|
Spacer |
4 |
|
|
009 |
173-2548
|
Washer M10 x 30mm plated |
2 |
|
|
010 |
189-1562
|
Washer 3/8 x 3/4 sealing outer diameter |
4 |
|
|
011 |
189-4135
|
Hose mounting bracket |
2 |
|
|
