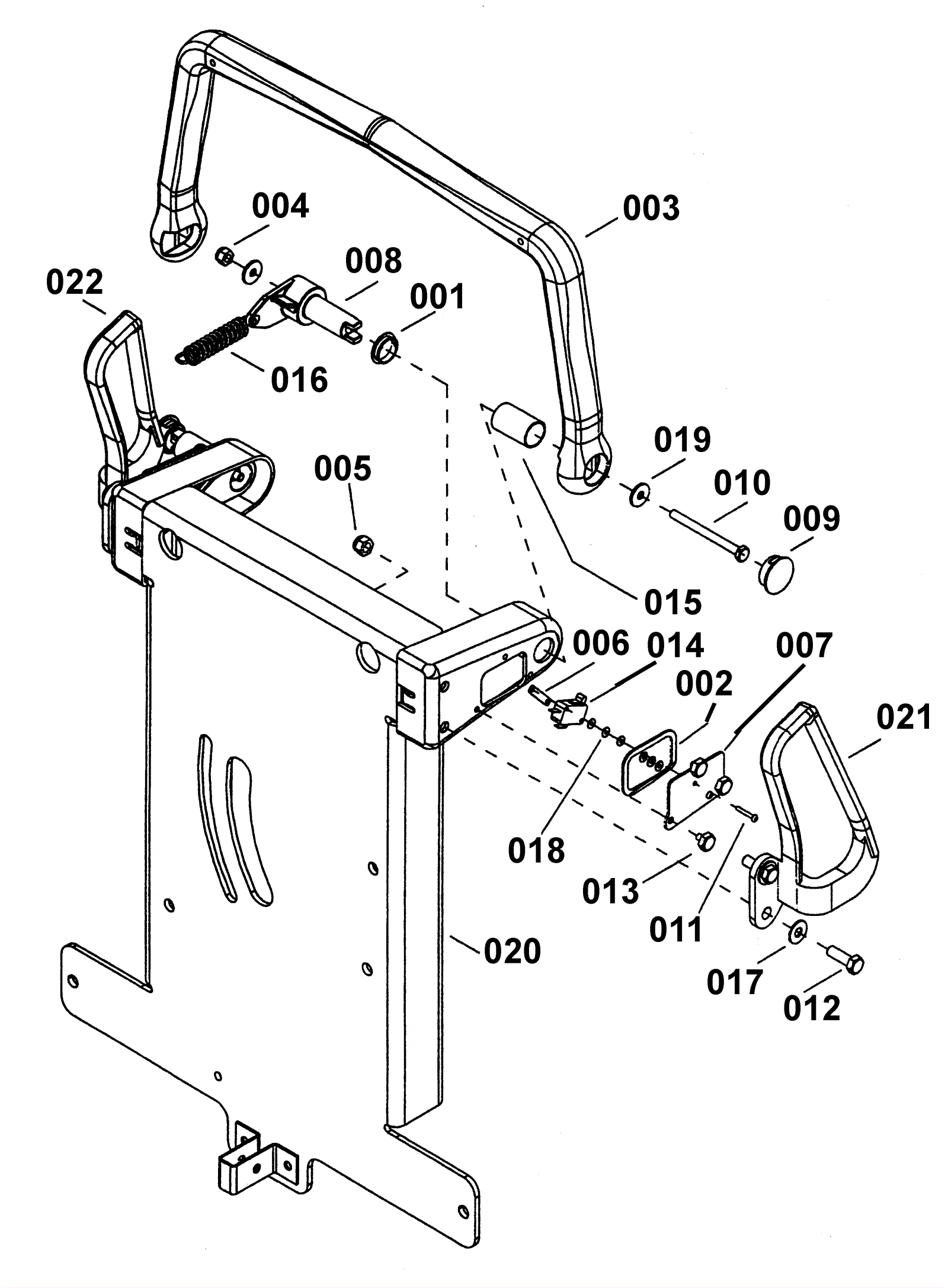

Control Handle Assembly

#PartDescription ReqNotesAvailability
001 173-1487 3/4 nyliner SI bearing 2
002 173-1488 micro switch cover gasket 2
003 173-1489 control handle 1
004 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
006 173-3902 Switch mounting nut plate 2
007 173-1490 microswitch mount plate 2
008 173-1491 handle pivot (OBSOLETE) 2
009 173-1492 1.00 hole plug 2
010 189-1552 Bolt 1/4-20 x 3 hex head 2
013 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer 6
014 189-0305 Microswitch 2
015 173-1494 spacer 7/8 OD x .78 ID x 1.357L 2
016 189-0306 Extension spring 2
018 173-3904 Washer 1/8 rivet backup 12
019 173-2483 Washer 1/4ID x 3/4OD plated 4
020 173-1496 weldment tower 1
021 173-1497 Grab handle bar left 1
022 173-1498 Grab handle bar right (OBSOLETE) 1
023 173-1529 Windsor service card (OBSOLETE) 1
