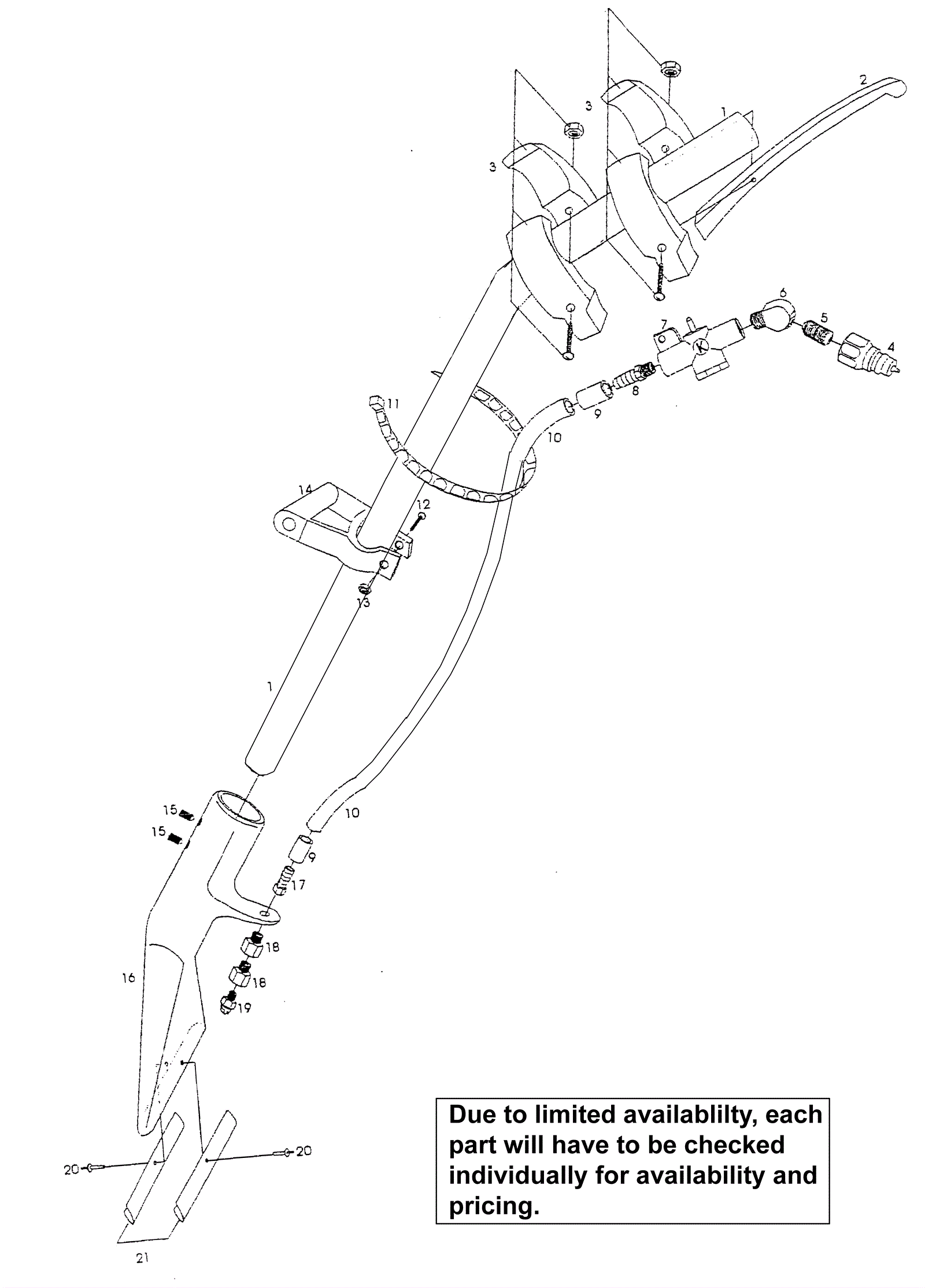

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
186-0765
|
Handle tube |
1 |
|
|
2 |
186-0766
|
Lever |
1 |
|
|
3 |
186-0767
|
Solution valve bracket assembly |
2 |
|
|
3a |
186-0768
|
Nut |
2 |
|
|
3b |
186-0769
|
Bracket |
2 |
|
|
3c |
999-0744
|
Screw 10-32 x 1 3/4 pan head phillips zinc plated |
2 |
|
|
4 |
186-0770
|
1/4 inch male quick connector |
1 |
|
|
5 |
186-0771
|
1/4 inch nipple |
1 |
|
|
6 |
186-0772
|
45 degree elbow |
1 |
|
|
7 |
186-0773
|
Control valve |
1 |
|
|
9 |
186-0775
|
Hose ferrule |
2 |
|
|
10 |
186-0776
|
44 inch solution hose |
1 |
|
|
11 |
186-0777
|
Hose tie |
1 |
|
|
12 |
186-0596
|
Screw |
1 |
|
|
13 |
186-0146
|
Nut |
1 |
|
|
14 |
186-0778
|
Handle grip |
1 |
|
|
15 |
999-0361
|
Bolt 1/4-20 x 3/8 hex head grade 5 zinc |
2 |
|
|
16 |
186-0779
|
Hand tool |
1 |
|
|
18 |
186-0781
|
Adapter |
2 |
|
|
19 |
186-0782
|
Spray jet |
1 |
|
|
20 |
186-0783
|
Rivet |
4 |
|
|
21 |
186-0784
|
Hand tool guard |
1 |
|
|
