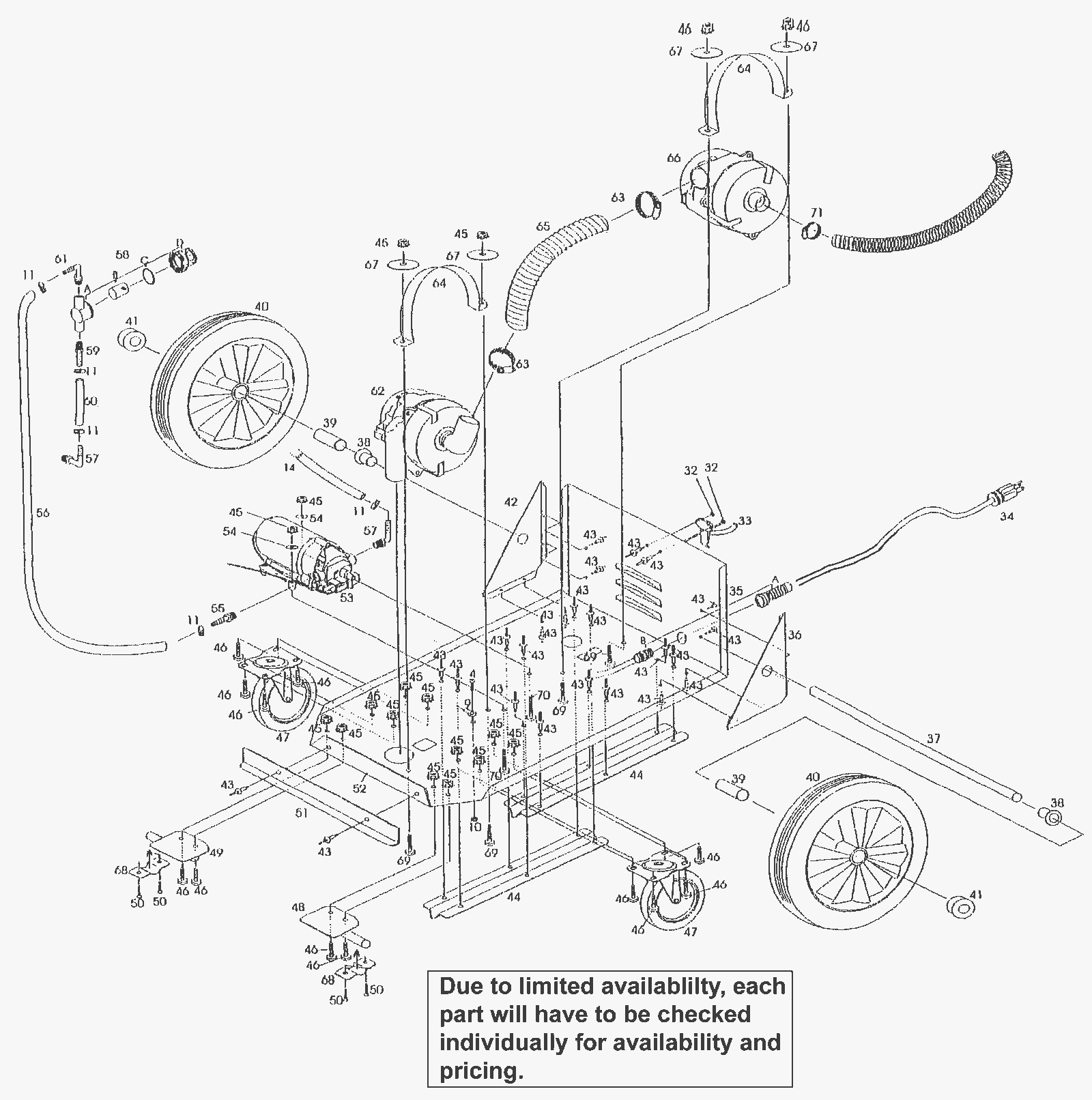

Chassis Assembly

#PartDescription ReqNotesAvailability
10 186-0712 Nut 10-32 1
11 186-0448 Hose clamp 6
14 186-0714 26 inch solution hose 1
30 186-0728 68 inch vacuum hose 1
32 186-0729 Rivet 2
34 186-0731 25 foot power cord 1
35 186-0732 Power cord strain relief 1
36 186-0733 Right hand rear wheel bracket 1
37 186-0734 Axle 1
38 186-0735 Bearing 2
39 186-0739 Left hand wheel bracket 2
40 186-0737 12 inch rear wheel 2
41 186-0738 Axle holder 2
42 186-0739 Left hand wheel bracket 1
43 186-0740 Rivet 24
44 186-0741 Support plate 1
45 186-0146 Nut 18
46 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 12
47 186-0742 Caster wheel 2
48 186-0743 Right hand hinge 1
49 186-0744 Left hand hinge 1
50 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 4
51 186-0745 Front support plate 1
52 186-0746 Base plate 1
53 186-0747 Solution pump 1
54 186-0748 Washer 2
55 186-0749 Hose barb 1
56 186-0750 63 inch solution hose 1
57 186-0751 90 degree hose barb 2
58 186-0752 Filter assembly 1 (includes 58a-58d)
58a 186-0753 Filter 1
58b N/A Not available 1
58c 186-0755 Gasket 1
58d 186-0095 Plastic cap for filter 1
59 186-0756 Hose barb 1
60 186-0457 3.5 inch hose 1
61 186-0339 Barbed elbow 1
62 186-0757 Vacuum motor 1
63 186-0758 Hose clamp 2
64 186-0759 Motor strap 2
65 186-0760 Vacuum hose 1
66 186-0761 Vacuum motor 1
67 186-0762 Vacuum motor fender 4
68 186-0763 Hinge clamp 2
69 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel 2
70 186-0596 Screw 4
71 186-0764 Hose clamp 1
