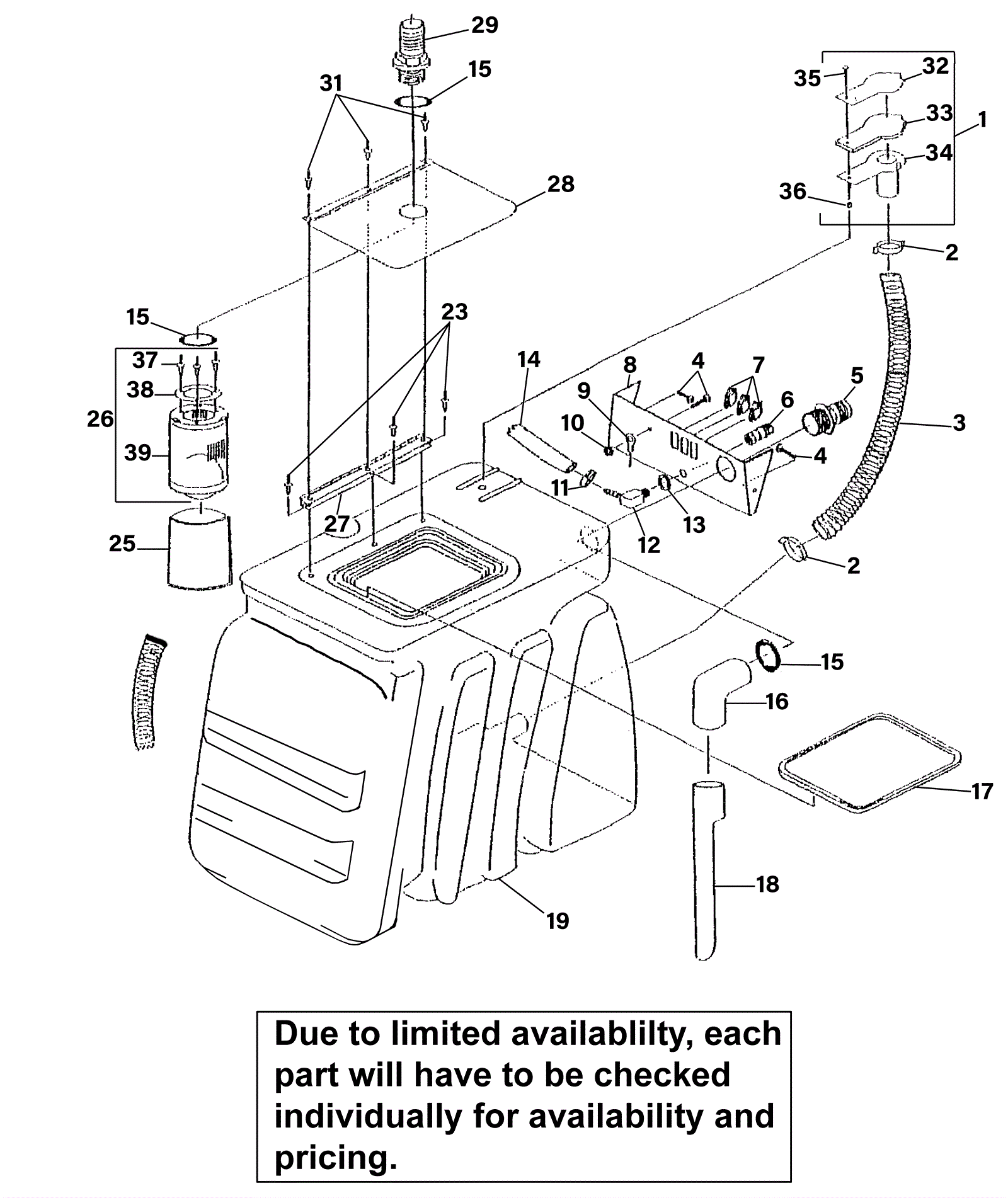

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 186-0703 Drain valve assembly 1 (includes 32-36)
2 186-0707 Hose clamp 3
3 186-0708 Vacuum hose 1
4 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 3
5 186-0709 1/2 inch hose barb 1
7 186-0443 Rocker switch 3
8 186-0710 Switch plate 1
9 186-0711 Ring connector 2
10 186-0712 Nut 10-32 2
11 186-0448 Hose clamp 6
12 186-0339 Barbed elbow 1
13 186-0713 Spacer 1
14 186-0714 26 inch solution hose 1
15 186-0715 Gasket 3
16 186-0716 90 degree elbow 1
17 186-0717 Tank seal 1
18 186-0718 Splash guard 1
19 186-0719 Recovery tank 1
23 186-0699 Rivet 3
25 186-0720 Filter 1
26 186-0721 Cage with ball and attach plate 1 (includes 37-39)
27 186-0725 Hinge 1
29 186-0727 Hose barb 1
31 186-0701 Rivet 3
32 186-0704 Top drain valve 1
33 186-0705 Drain valve gasket 1
34 186-0706 Bottom drain valve 1
35 999-0748 Screw 1/4-20 x 1 1/2 flat head phillips zinc plated 1
36 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
37 186-0722 Rivet 3
38 186-0723 Cage attach plate 1
39 186-0724 Float cage with ball 1
