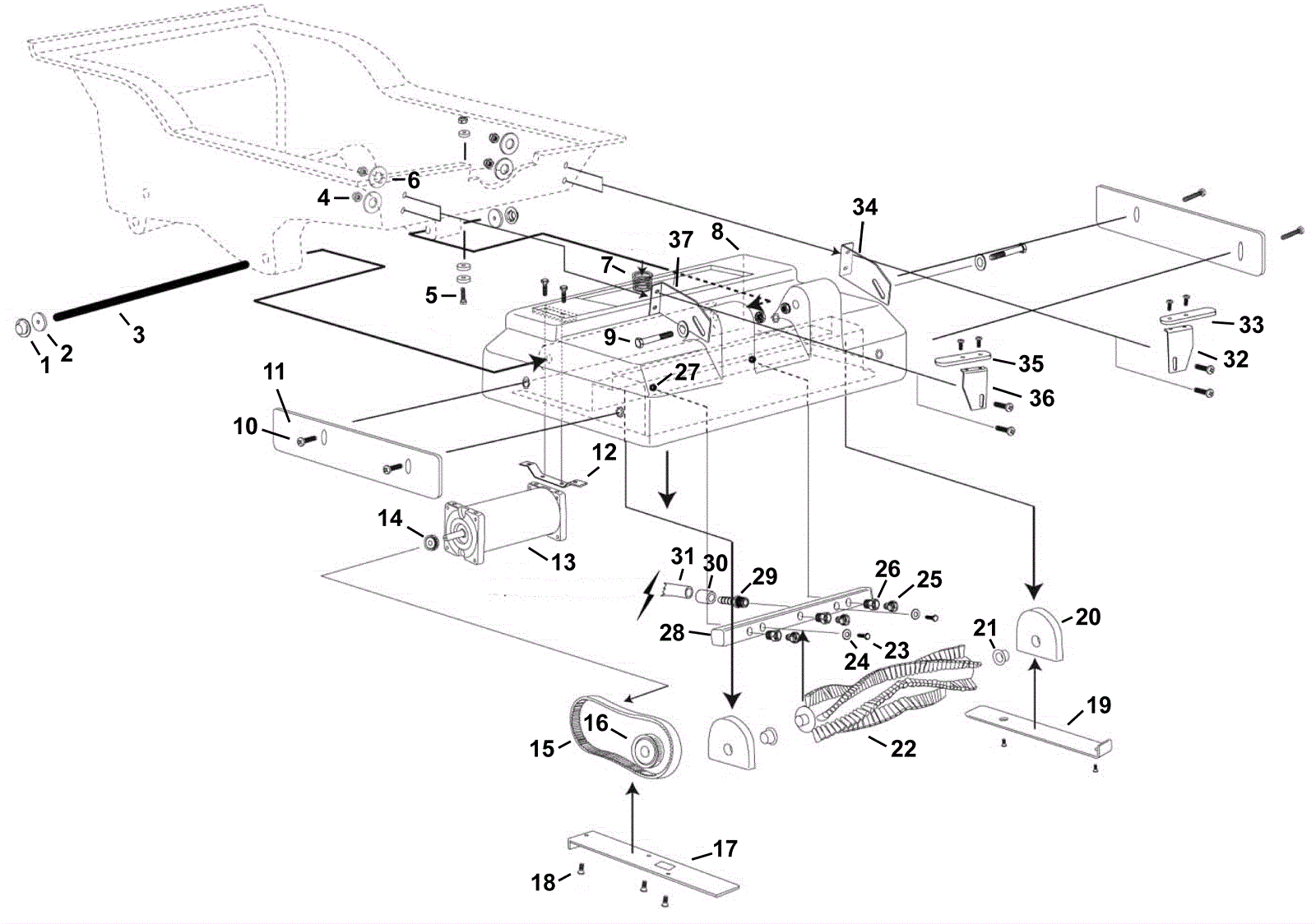

RUG BOSS SC440 Wand and Cleaning Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 186-0212 Axle end cap $4.80 2 usually ships 1-5 days
2 186-0213 Fender washer $1.80 6 usually ships 1-5 days
3 186-0214 Rod $14.00 1 usually ships 1-5 days
4 186-0215 Nut $1.80 5 usually ships 1-5 days
5 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 3 ships same day
6 186-0217 Washer $2.16 4 usually ships 1-5 days
7 186-0218 Mounting spring $2.16 1 usually ships 1-5 days
8 186-0219 Brush housing $633.60 1 usually ships 1-5 days
9 186-0220 Bolt 1/4-20 x 3 hex tap $5.76 2 usually ships 1-5 days
10 186-0221 Screw 10-32 x 3/4 phillips $2.16 8 usually ships 1-5 days
11a 186-0222 Right hand brush cover $40.80 1 usually ships 1-5 days
11b 186-0223 Left hand brush cover $40.80 1 usually ships 1-5 days
12 186-0224 Brush motor mounting bracket $38.40 1 usually ships 1-5 days
13 186-0225 Motor $368.90 1 usually ships 16-19 days
14 186-0197 Motor pulley $136.80 1 usually ships 1-5 days
15 186-0226 Timing belt $110.88 1 usually ships 1-5 days
16 186-0227 Timing pulley $140.28 1 usually ships 1-5 days
17 186-0228 Left hand belt cover $96.00 1 usually ships 1-5 days
18 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 5 ships same day
19 186-0230 Right hand belt cover $57.60 1 usually ships 1-5 days
20 186-0231 Bearing holder $148.12 2 usually ships 1-5 days
21 186-0232 High temperature bearing $49.08 2 usually ships 1-5 days
22 186-0233 Nylon brush $178.20 1 usually ships 1-5 days
22 186-0234 Axle $120.52 2 usually ships 1-5 days
23 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel $0.99 2 ships same day
24 186-0236 Washer $2.16 2 usually ships 1-5 days
25 186-0237 Quick nozzel body $20.21 3 usually ships 1-5 days
26 186-0238 Quick nozzel jet $48.01 3 usually ships 16-19 days
27 186-0239 Nut $2.23 2 usually ships 1-5 days
28 186-0240 Jet manifold $280.80 1 usually ships 1-5 days
29 186-0241 Hose barb $5.76 1 usually ships 1-5 days
30 186-0242 Brass hose ferrule $2.16 1 usually ships 1-5 days
31 186-0243 24 inch hose $115.20 1 usually ships 1-5 days
32 186-0244 Right hand bracket $36.00 1 usually ships 1-5 days
33 186-0245 Left hand plate $21.60 1 usually ships 1-5 days
34 186-0246 Right hand base connection bracket $40.80 1 usually ships 1-5 days
35 186-0247 Left hand bracket $36.00 1 usually ships 1-5 days
36 186-0248 Right hand plate $21.60 1 usually ships 1-5 days
37 186-0249 Left hand base connection bracket $40.80 1 usually ships 1-5 days
