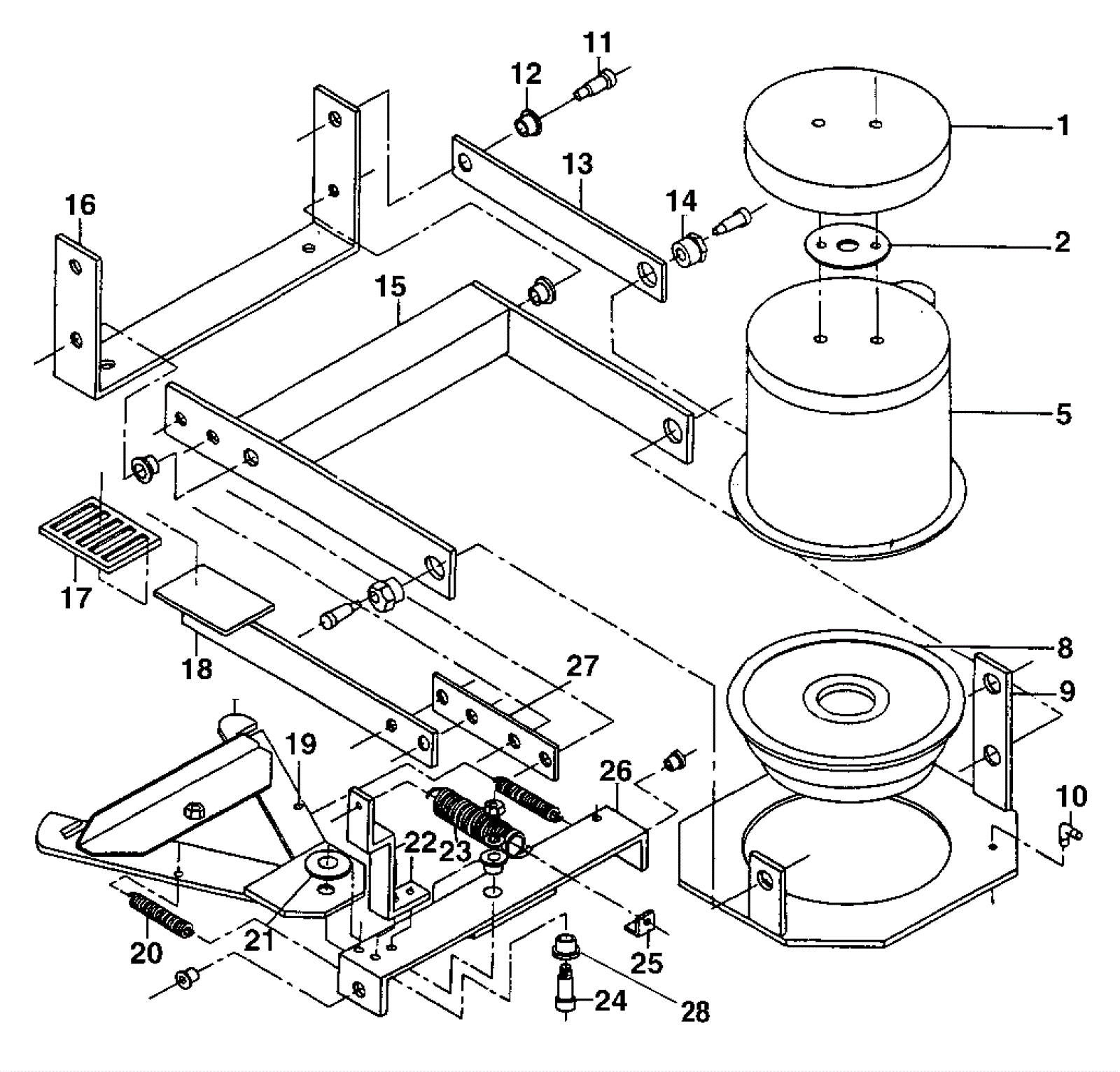

ES2000 Brush Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 186-0593 Motor canopy (OBSOLETE) $31.88 1 usually ships 16-19 days
2 186-0594 Spacer $5.50 1 usually ships 16-19 days
N/S 186-0620 Capacitor cover Call for price 1 usually ships 16-19 days
5A 186-0621 115V brush motor Call for price 1 usually ships 16-19 days
5B 186-0622 220V brush motor Call for price 1 usually ships 16-19 days
8 186-0623 Gear box Call for price 1 usually ships 16-19 days
9 186-0624 Mounting plate Call for price 1 usually ships 16-19 days
10 186-0614 Elbow Call for price 1 usually ships 16-19 days
11 186-0625 Shoulder bolt Call for price 1 usually ships 16-19 days
13 186-0627 Motor lift link Call for price 7 usually ships 16-19 days
14 186-0628 Eccentric nut $9.24 1 usually ships 16-19 days
15 186-0629 Motor lift yoke Call for price 3 usually ships 16-19 days
16 186-0630 Motor pivot yoke Call for price 1 usually ships 16-19 days
17 186-0631 Pedal pad Call for price 1 usually ships 16-19 days
18 186-0632 Pedal lift Call for price 1 usually ships 16-19 days
19 186-0633 Squeegee trailing arm Call for price 1 usually ships 16-19 days
20 186-0634 Spring $6.41 2 usually ships 16-19 days
21 N/A Not available Call for price 2 usually ships 3-26 days
22 186-0635 Squeegee tension arm Call for price 1 usually ships 16-19 days
23 186-0636 Tension spring Call for price 1 usually ships 16-19 days
24 186-0637 Pivot bolt Call for price 1 usually ships 16-19 days
25 186-0638 Tension spring clip Call for price 1 usually ships 16-19 days
26 186-0639 Pivot yoke Call for price 1 usually ships 16-19 days
27 186-0640 Link Call for price 1 usually ships 16-19 days
N/S 186-0470 18 inch pad driver (OBSOLETE) $125.61 1 usually ships 16-19 days
