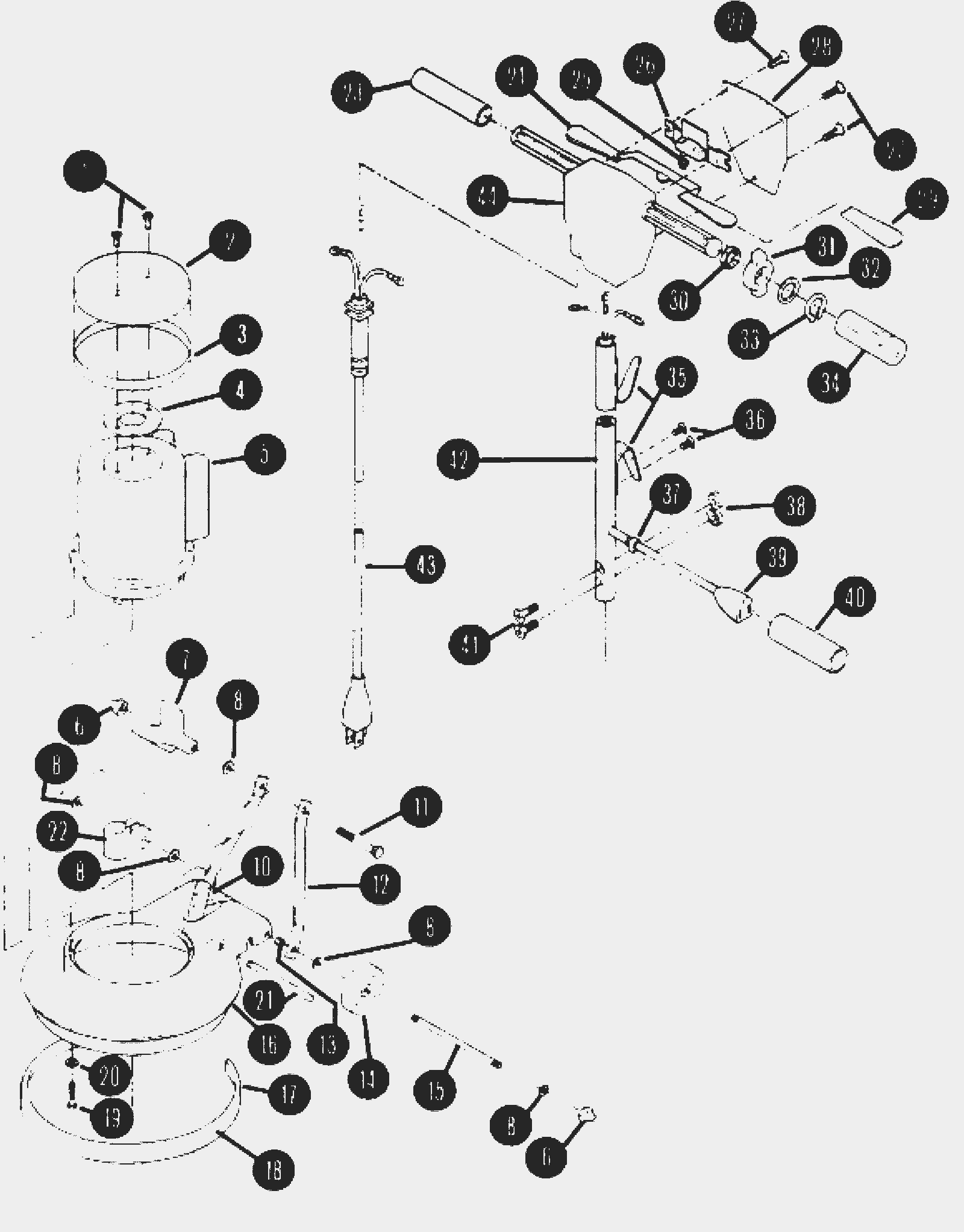

Entire Assembly

#PartDescription ReqNotesAvailability
1 186-0592 Screw 2
2 186-0593 Motor canopy (OBSOLETE) 1
3 186-0056 15amp circuit breaker (OBSOLETE) 1
4 186-0594 Spacer 1
5 186-0599 Drum adapter 1
6 186-0002 Cap nut 3
7 186-0190 Cam latch retrofit kit (OBSOLETE) 1
8 186-0153 Washer 9
10 186-0136 Handle tee (OBSOLETE) 1
11 186-0003 Carriage bolt (OBSOLETE) 1
12 186-0181 F/M strut short (OBSOLETE) 2
13 186-0090 Wheel spring (OBSOLETE) 2
14 186-0091 Wheel kit (OBSOLETE) 2
15 186-0132 Axle (OBSOLETE) 1
16a N/A Not available 1 (13 inch chassis)
16b N/A Not available 1 (16 inch chassis)
16c N/A Not available 1 (18 inch chassis)
16d N/A Not available 1 (20 inch chassis)
16e N/A Not available 1 (22 inch chassis)
16f N/A Not available 1 (16 inch chassis polished)
16g N/A Not available 1 (18 inch chassis polished)
16h N/A Not available 1 (20 inch chassis polished)
17a N/A Not available 1 (13 inch bumper)
17b N/A Not available 1 (16 inch bumper)
17c N/A Not available 1 (18 inch bumper)
17d N/A Not available 1 (20 inch bumper)
17e 186-0595 22 inch bumper 1
18a N/A Not available 1 (13 inch bumper insert)
18b N/A Not available 1 (16 inch bumper insert)
18c N/A Not available 1 (18 inch bumper insert)
18d N/A Not available 1 (20 inch bumper insert)
18e N/A Not available 1 (22 inch bumper insert)
19 186-0596 Screw 4
20 186-0597 Washer 4
21 186-0467 Handle tee shaft (OBSOLETE) 1
22 186-0068 Handle clamp stainless steel (OBSOLETE) 1
23 186-0096 Right handle grip (OBSOLETE) 1
24 186-0063 Trigger (OBSOLETE) 1
25 186-0097 Trigger spring (OBSOLETE) 1
26 186-0071 Switch assembly (OBSOLETE) 1
27 186-0098 Screw 8-32 x 1/2 3
28 186-0099 Switch box cover 1
29 186-0100 Trigger sleeve (OBSOLETE) 2
30 186-0101 Safety latch spring (OBSOLETE) 1
31 186-0102 Safety latch 1
32 186-0103 Safety latch spacer 1
33 186-0104 Ring 1
34 186-0105 Left handle grip (OBSOLETE) 1
35 186-0143 Cord hook 2
36 186-0144 Screw pan head 4
37 186-0598 Strain relief 1
38 186-0146 Nut 2
39a 186-0147 14/3 power cord 1
39b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
40 186-0148 Shroud restraint 1
41 186-0150 Screw 2
42 186-0119 Handle pipe assembly with bushing (OBSOLETE) 1
43a 186-0147 14/3 power cord 1
43b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
44 N/A Not available 1 (Switch box)
N/S N/A Not available 1 (Run capacitor)
N/S N/A Not available 1 (Start capacitor)
