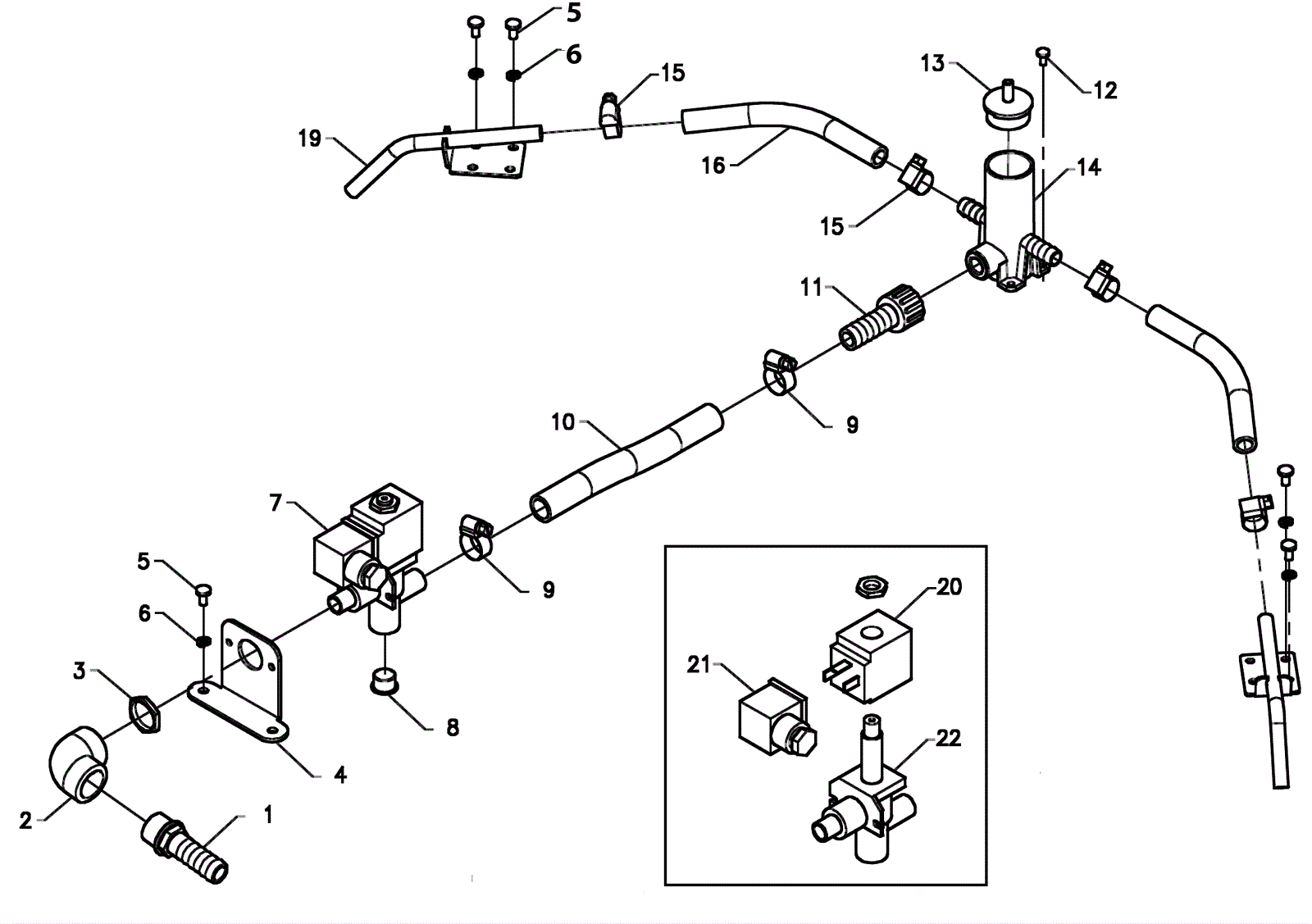

BDSO 27/28 Water Valve Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-1477 Straight fitting 1/2 inch x 16 inch $4.81 1 usually ships 15-28 days
2 183-9253 90 degree elbow fitting $8.16 1 usually ships 15-28 days
3 183-2515 Adjuster nut (OBSOLETE) Call for price 1 usually ships 15-28 days
4 183-7202 Solenoid valve support (OBSOLETE) $30.10 1 usually ships 15-28 days
5 183-2581 Screw M5 x 12mm $1.35 6 usually ships 15-28 days
6 183-2578 Lock washer $1.35 6 usually ships 15-28 days
7 183-2517 Solenoid valve assembly $143.02 1 usually ships 15-28 days
8 183-2270 Cap $1.35 1 usually ships 15-28 days
9 183-7651 Hose clamp $4.49 2 usually ships 15-28 days
10 183-7203 Hose $4.69 1 usually ships 15-28 days
11 183-8237 Connector $8.18 1 usually ships 15-28 days
12 183-9411 Screw M4 x 8 mm $1.35 4 usually ships 15-28 days
13 183-5184 Cover $3.94 1 usually ships 15-28 days
14 183-5183 Distributor $12.47 1 usually ships 15-28 days
15 183-8241 Clamp $6.11 4 usually ships 15-28 days
16 183-7204 Hose 10 x 160 $4.39 2 usually ships 15-28 days
19 183-7205 Water outlet tube (OBSOLETE) Call for price 2 usually ships 15-28 days
20 183-8230 Solenoid valve coil $55.92 1 usually ships 15-28 days
21 183-8198 Square connector $6.63 1 usually ships 15-28 days
22 183-2522 Solenod valve body $88.24 1 usually ships 15-28 days
